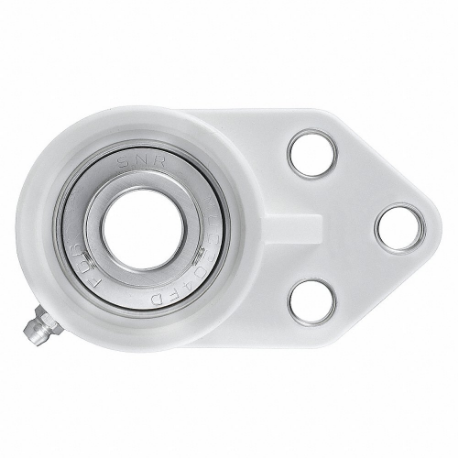

NTN SUCFBL207 Flange Bearing, 3 Bolt, 35 mm Bore, Ss, Set Screws, 95 mm Lg, 47.1 mm Width, 157 mm Ht
Item: CT4GJMModel: SUCFBL207Cross Ref: 49C719
7 In Stock
Ships within 2 days via
10.00% off
€528.94 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Bearing |
| Application | Food And Beverage |
| Back Side To Center Width | 21.7 mm |
| Bearing Insert Material | Stainless Steel |
| Bearing Insert Type | Radial Ball |
| Bearing Material Grade | 440C |
| Bore Dia. | 35 mm |
| Bore Type | Cylindrical |
| Closure | Double Sealed |
| Closure Type | Double Sealed |
| Expansion Type | Fixed |
| Flange Thickness | 16.1 mm |
| Grade | Grade 440C |
| Housing Material | Stainless Steel |
| Housing Material Finish | Unfinished |
| Housing Material Grade | Grade 440C |
| Housing Type | Flange Bracket |
| Included Bearing | SUC207 |
| Included Bearing Cap | None |
| Includes | (3) Set Screws |
| Insert Material | Stainless Steel |
| Insert Type | Radial Ball |
| Lubricant Material | FDA, USDA-H1 Solid Grease |
| Lubricant Material Grade | FDA/USDA-H1 Solid Grease |
| Lubrication Openings | One Zirc Fitting |
| Max. Speed | 3700 RPM |
| Max. Temp. | 120°C |
| Minimum Temperature | -20°C |
| Mount Hole Center-to-center Height | 50.8 mm |
| Mount Hole Center-to-center Length | 50.8 mm |
| Mount Hole Size | 13.1 mm |
| Number Of Mounting Holes | 3 |
| Overall Height | 157 mm |
| Overall Length | 95 mm |
| Overall Width | 47.1 mm |
| Resistance Properties | Corrosion Resistant |
| Rolling Element Rows | 1 |
| Seal Material | Silicone |
| Seal Type | Contact |
| Shaft Locking Type | Set Screws |
| Static Radial Load Capacity | 15600N |
Shipping Info:
| Ship weight (kg) | 0.74 |
| Ship height (cm) | 15.7 |
| Ship length (cm) | 9.5 |
| Ship width (cm) | 4.71 |
Product Variants
| Product | Model | Number Of Mounting Holes | Housing Type | Overall Length | Flange Thickness | Housing Material | Overall Width | Overall Height | Mount Hole Center-to-center Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SUCNFL208-24C0FG1 | 2 | Rhombus | 6 7/8" | 25/32" | Polymer | 2 51/64" | 3 15/16" | 5 21/32" | €749.38 | |
 |
SUCFL208-24C0FG1 | 2 | Rhombus | 6 49/64" | 19/32" | Stainless Steel | 2 1/32" | 3 59/64" | 5 43/64" | €1,036.22 | |
|
SUCNFL206-20C0FG1 | 2 | Rhombus | 5 53/64" | 33/64" | Polymer | 2 1/4" | 3 9/64" | 4 39/64" | €582.53 | |
 |
SUCNFL206-20CCFG1 | 2 | Rhombus | 5 53/64" | 33/64" | Polymer | 2 1/4" | 3 9/64" | 4 39/64" | €604.52 | |
|
SUCNFL207-20C0FG1 | 2 | Rhombus | 6 13/32" | 5/8" | Polymer | 2 27/64" | 3 17/32" | 5 7/64" | €709.82 | |
 |
SUCFL207-20CCFG1 | 2 | Rhombus | 5 13/32" | 19/32" | Stainless Steel | 1 3/4" | 3 33/64" | 5 1/8" | €999.24 | |
|
SUCFL207-20C0FG1 | 2 | Rhombus | 5 13/32" | 19/32" | Stainless Steel | 1 3/4" | 3 33/64" | 5 1/8" | €977.97 |
