NTN 205TTH Radial Ball Bearing Nylon 1.3750 inch Width
Item: AE2YNGModel: 205TTHCross Ref: 4ZYP1
7 In Stock
Ships within 2 days via
10.00% off
€113.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Radial Ball Bearing |
| Abec Rating | 1 |
| Abec Tolerance | 1 |
| Ball Material | Alloy Steel |
| Bearing Industry Number | Special Radial Ball |
| Bearing Material | Steel |
| Bearing Type | Agricultural |
| Bore Dia. | 0.937" |
| Bore Dia. Tolerance | -0.005" to +0.005" |
| Bore Size | 15/16" |
| Bore Size Tolerance | -0.005" to +0.005" |
| Bore Tolerance | -0.005" to +0.005" |
| Cage Material | Nylon |
| Closure | Double Sealed |
| Dynamic Load Capacity | 3150 lbs. |
| Dynamic Radial Load Capacity | 3150 lbf. |
| Flange Type | Non Flanged |
| Includes Retaining Ring | No |
| Lubricant Material | Alvania #3 |
| Lubrication | Shell Alvania #3 |
| Max. Rpm | 890 RPM |
| Maximum Axial Load | 3150 lbf. |
| Maximum Temperature | 250°F |
| Minimum Temperature | -13°F |
| Number Of Rows | 1 |
| Outer Ring Width | 1 3/8" |
| Outside Dia. | 2.047" |
| Outside Dia. Tolerance | -0.001" to +0.001" |
| Outside Diameter | 2 3/64" |
| Outside Diameter Tolerance | -0.0005" to 0" |
| Retaining Ring Dia. | Not Applicable |
| Retaining Ring Groove | No |
| Retaining Ring Thickness | Not Applicable |
| Ring Material | Alloy Steel |
| Seal Material | Nbr |
| Seal Type | Contact |
| Seal/shield Type | Double Sealed |
| Static Load Capacity | 1770 lbs. |
| Static Radial Load Capacity | 1770 lbf. |
| System Of Measurement | Inch |
| Temp. Range | -13°F to +250°F |
| Width | 1 3/8" |
Shipping Info:
| Ship weight (kg) | 0.21 |
| Ship height (cm) | 5.2 |
| Ship length (cm) | 5.2 |
| Ship width (cm) | 3.49 |
| HS code | 8482105052 |
| Country of Origin | JP |
Product Variants
| Product | Model | Bearing Type | Bore Tolerance | Cage Material | Outside Dia. | Bore Dia. | Dynamic Load Capacity | Max. Rpm | Outside Dia. Tolerance | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |

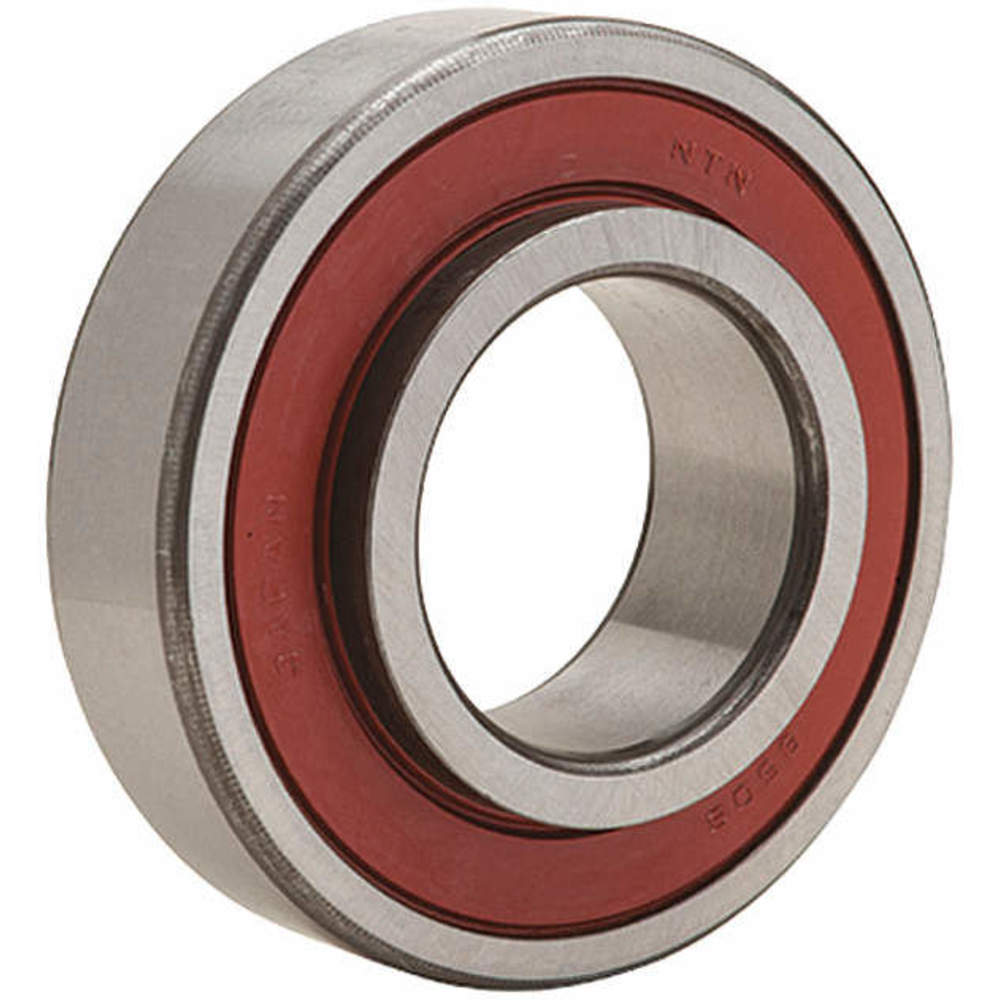

203RRAR10 | Ball | -0.0003" to 0" | Nylon | - | 0.635" | 2160 lbs. | 8000 RPM | -0.001" to +0.001" | €42.70 | |
 |
204BBAR | Agricultural | -0.0004" to 0" | Steel | 1.78" | 3/4" | 2880 lbs. | 6700 RPM | -0.0004" to 0" | €41.25 | |
 |
204FREN | Agricultural | -0.001" to 0" | Nylon | 1.78" | 0.632" | 2860 lbs. | 6700 RPM | -0.0004" to 0" | €75.80 | |
 |

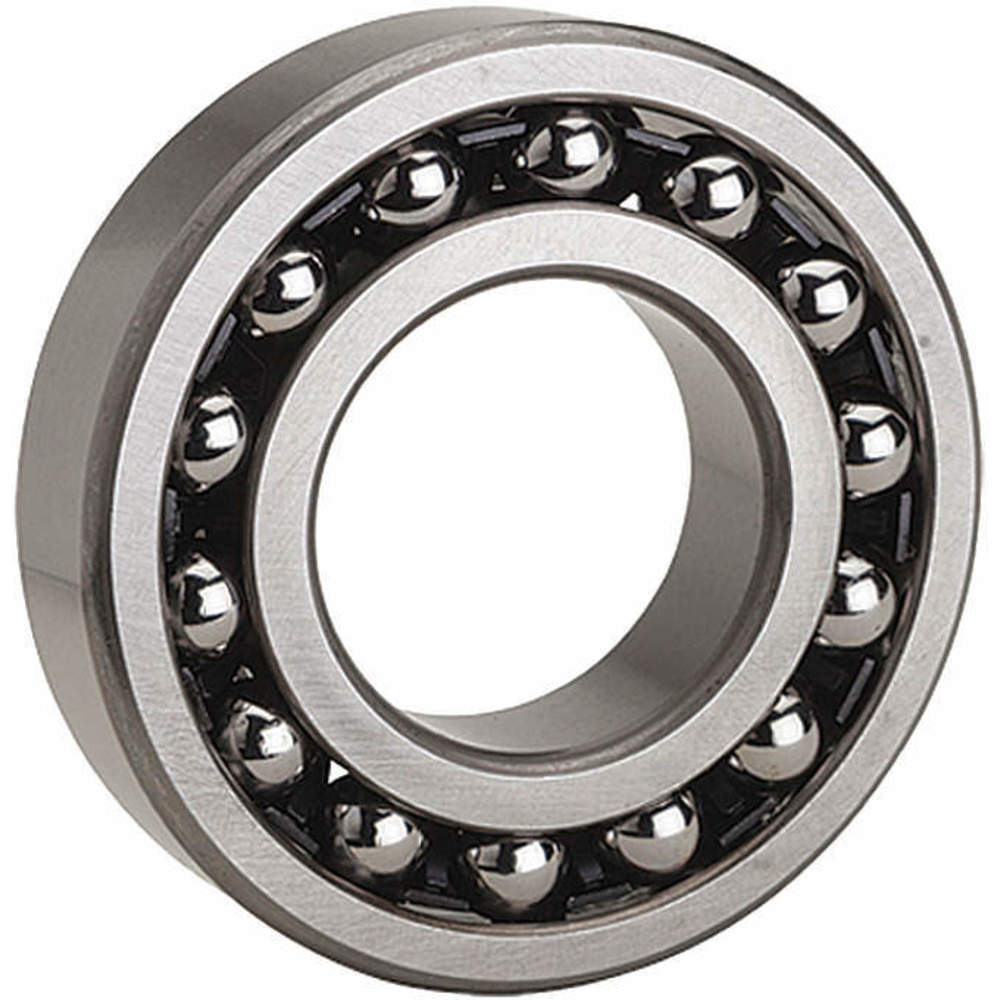

205RHN | Agricultural | -0.001" to 0" | Nylon | 2.047" | 0.751" | 3150 lbs. | 6700 RPM | -0.001" to +0.001" | €62.26 | |
|
205RTAN | Agricultural | -0.005" to +0.005" | Nylon | 2.047" | 0.751" | 3150 lbs. | 890 RPM | -0.001" to +0.001" | €100.16 | |
|
205TTB | Agricultural | -0.005" to +0.005" | Nylon | 2.047" | 0.751" | 3150 lbs. | 890 RPM | -0.001" to +0.001" | €79.70 | |
|
205VVA | Ball | -0.005" to +0.005" | Nylon | 2 1/2" | 0.751" | 3150 lbs. | 890 RPM | -0.001" to +0.001" | €77.81 |
