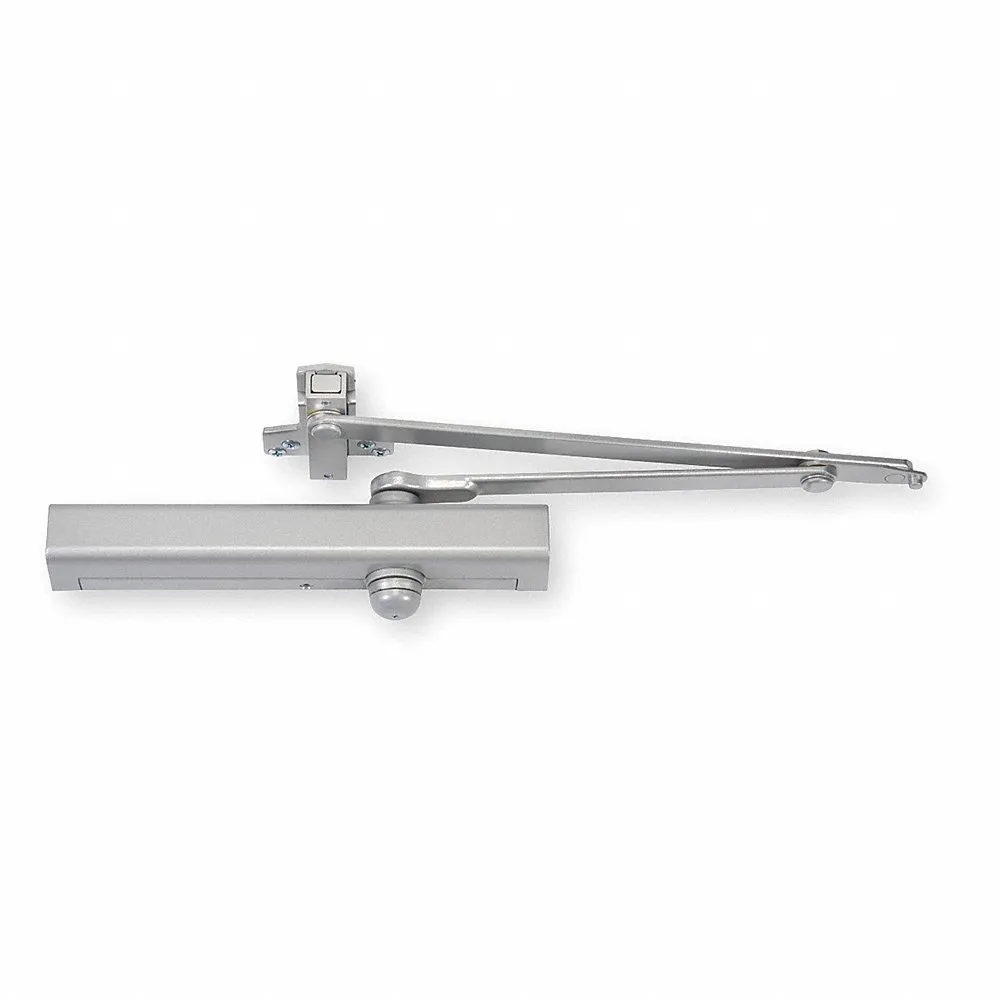

NORTON ABRASIVES UNI8301 x 689 Door Closer, Non Hold Open, Non-Handed, 13 Inch Housing Lg, 2 1/8 Inch Housing Dp
Item: CT4EBBModel: UNI8301 x 689Cross Ref: 2TKV3
7 In Stock
Ships within 2 days via
10.00% off
€571.57 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Door Closer |
| Ada Compliant | Yes |
| Arm Type | Parallel |
| Closer Cycles | 25000000 |
| Closer Mounting Style | Top Frame |
| Closer Mounting Type | Top Frame |
| Closer Series | NORTON 8301 Series |
| Closer Stop Type | Spring |
| Closer Type | Non Hold Open |
| Color | Gray |
| Door Width Campatibility | 41" |
| Energy Source | Hydraulic |
| Exterior Door Width | 41" |
| Exterior Door Width - Maximum | 41" |
| Finish | Aluminum Painted |
| Fire Rating | 3 hrs. |
| Hand Orientation | Non Handed |
| Height Between Mounting Holes | 3/4" |
| Housing Depth | 2 1/8" |
| Housing Height | 2 7/8" |
| Housing Length | 13" |
| Hydraulic/pneumatic | Hydraulic |
| Includes | Plastic Cover |
| Includes Hardware | Hardware Not Included |
| Interior / Exterior | Interior And Exterior |
| Interior Door Width | 41" |
| Length Between Mounting Holes | 12" |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Use | Interior/Exterior |
| Manual/automatic | Manual |
| Material | Aluminum |
| Max Door Opening Angle | 110° |
| Max. Door Opening | 110° |
| Mounting Hardware | Not Included |
| Operation Style | Manual |
| Performance Rating | Grade 1 Heavy Duty |
| Product Type | Door Closer |
| Spring Size | 6 |
| Spring Size - Minimum | 1 |
| Spring Type | Adjustable |
Shipping Info:
| Ship weight (kg) | 4.16 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Hand Orientation | Closer Type | Spring Type | Spring Size | Color | Manual/automatic | Fire Rating | Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
410XTPHX689 | Non Handed | Hold Open | Adjustable | 6 | Gray | Manual | 3 hrs. | Cast Iron | €321.16 | |
 |
410xCPSTx690 | Non Handed | Hold Open | Adjustable | 6 | Dark Bronze | Manual | 3 hrs. | Cast Iron | €460.26 | |
 |
410xCPSTx689 | Non Handed | Hold Open | Adjustable | 6 | Gray | Manual | 3 hrs. | Cast Iron | €460.26 | |
|
410XHDHX690 | Non Handed | Hold Open | Adjustable | 6 | Dark Bronze | Manual | 3 hrs. | Cast Iron | €365.46 | |
 |
410XTPHX690 | Non Handed | Hold Open | Adjustable | 6 | Dark Bronze | Manual | 3 hrs. | Cast Iron | €299.49 | |
 |
7500H 689 | Non Handed | - | Adjustable | 6 | Gray | - | - | - | €771.00 | |
 |
UNI8501H X 690 | Non Handed | Hold Open | Adjustable | 6 | Dark Bronze | Manual | 3 hrs. | Aluminum | €699.66 |
