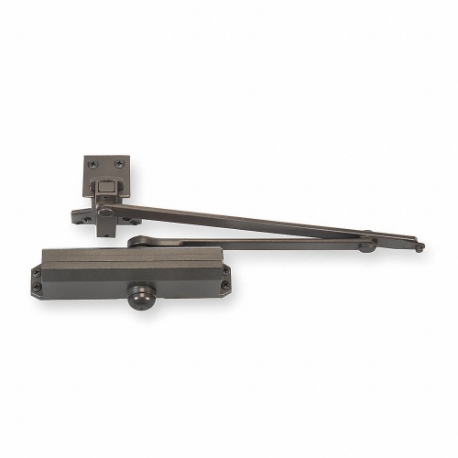

NORTON ABRASIVES UNI1601 x 690 Door Door Closer, Non Hold Open, Non-Handed, 9 3/4 Inch Housing Lg, 2-5/8 Inch, Manual
Item: CT4EBXModel: UNI1601 x 690Cross Ref: 2TKU5
7 In Stock
Ships within 2 days via
5.00% off
€488.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Door Closer |
| Ada Compliant | Yes |
| Arm Material | Die Cast Aluminum |
| Arm Type | Parallel |
| Closer Cycles | 25000000 |
| Closer Mounting Style | Top Frame |
| Closer Mounting Type | Parallel |
| Closer Series | 1600 Series |
| Closer Type | Non Hold Open |
| Color | Dark Bronze |
| Door Weight-max. | 250 lbs. |
| Door Width Campatibility | 48" |
| Energy Source | Hydraulic |
| Exterior Door Width | 48" |
| Exterior Door Width-max. | 48" |
| Features | Staked Valves, Tri Packed |
| Finish | Dark Bronze Paint |
| Fire Rating | 3 hrs. |
| Hand Orientation | Non Handed |
| Height Between Mounting Holes | 3/4" |
| Housing Depth | 2 7/8" |
| Housing Height | 2 5/8" |
| Housing Length | 9 3/4" |
| Hydraulic/pneumatic | Hydraulic |
| Included | Rack And Pinion Design |
| Included Hardware | Hardware Not Included |
| Interior Door Width | 48" |
| Interior/exterior | Interior And Exterior |
| Length Between Mounting Holes | 9 1/16" |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Use | Interior/Exterior |
| Manual/automatic | Manual |
| Material | Aluminum |
| Max. Door Opening | 110° |
| Max. Door Opening Angle | 110° |
| Min. Door Opening | 85° |
| Min. Spring Size | 1 |
| Mounting Hardware | Not Included |
| Operation Style | Manual |
| Performance Rating | Grade 1 Heavy Duty |
| Product Type | Door Closer |
| Projection | 2 7/8" |
| Spring Size | 6 |
| Spring Type | Adjustable |
| Ul Fire Rating | UL10C |
Shipping Info:
| Ship weight (kg) | 4.03 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Color | Housing Depth | Housing Length | Housing Height | Hand Orientation | Ada Compliant | Closer Type | Max. Door Opening | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
410XTPHX689 | Gray | 2 1/4" | 12 1/4" | 3 1/2" | Non Handed | Yes | Hold Open | 85° to 130° | €321.16 | |
 |
410xCPSTx690 | Dark Bronze | 2 1/4" | 12 1/4" | 3 1/2" | Non Handed | Yes | Hold Open | 85° to 130° | €460.26 | |
 |
410xCPSTx689 | Gray | 2 1/4" | 12 1/4" | 3 1/2" | Non Handed | Yes | Hold Open | 85° to 130° | €460.26 | |
|
410XHDHX690 | Dark Bronze | 2 1/4" | 12 1/4" | 3 1/2" | Non Handed | Yes | Hold Open | 85° to 130° | €365.46 | |
 |
410XTPHX690 | Dark Bronze | 2 1/4" | 12 1/4" | 3 1/2" | Non Handed | Yes | Hold Open | 85° to 130° | €299.49 | |
 |
7500H 689 | Gray | 2 1/8" | 13 5/8" | 3 7/8" | Non Handed | No | - | 180° | €771.00 | |
 |
UNI8501H X 690 | Dark Bronze | 2 1/8" | 13" | 2 7/8" | Non Handed | Yes | Hold Open | 110° | €699.66 |
