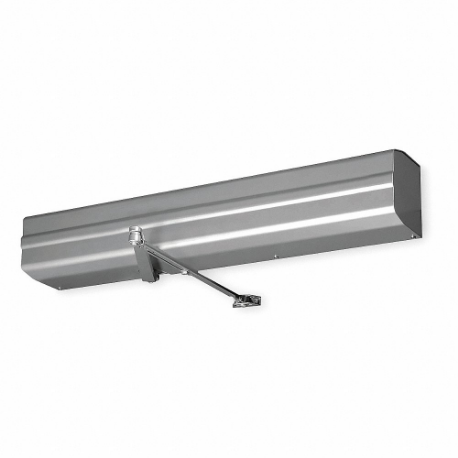

NORTON ABRASIVES 5730RFX689 531 Door Powered Operator, Electronically Controlled, Non-Handed, 29 Inch Housing Length
Get it by Monday, Aug 31
5.00% off
€4,100.10 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Powered Door Operator |
| Ada Compliant | Yes |
| Arm Material | Steel |
| Arm Type | Track |
| Closer Mounting Style | Regular |
| Closer Type | Non Hold Open |
| Color | Gray |
| Compatible With Brand | Norton |
| Door Weight-max. | 254 lbs. |
| Door Width Campatibility | 48" |
| Energy Source | Hydraulic |
| Exterior Door Width | 48" |
| Exterior Door Width-max. | 48" |
| Finish | Aluminum Paint |
| Fire Rating | Not Rated |
| Hand Orientation | Non Handed |
| Height Between Mounting Holes | 1/2" |
| Housing Depth | 4 5/8" |
| Housing Height | 5 1/4" |
| Housing Length | 29" |
| Hydraulic/pneumatic | Hydraulic |
| Included | Radio Frequency Wall Switches |
| Interior Door Width | 48" |
| Interior/exterior | Interior And Exterior |
| Length Between Mounting Holes | 3/8", 7/8", 5 7/8", 7 9/16", 12 15/16" |
| Ligature Resistance | Not Ligature Resistant |
| Ligature Resistant | No |
| Location Use | Interior/Exterior |
| Manual/automatic | Automatic |
| Material | Steel |
| Max. Door Opening | 180° |
| Min. Door Weight | 198 lbs. |
| Min. Spring Size | 1 |
| Mounting Type | Standard |
| Operator Cycles | 10000000 |
| Performance Grade | Grade 1-Heavy Duty |
| Power Level | Low Energy |
| Power Source | Electrical |
| Projection | 4 5/8" |
| Projection From Wall | 4 5/8" |
| Series | Norton 5721 |
| Spring Size | 6 |
| Spring Type | Adjustable |
Shipping Info:
| Ship weight (kg) | 13.78 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
| Country of Origin | US |
Product Variants
| Product | Model | Color | Housing Depth | Housing Length | Housing Height | Hand Orientation | Ada Compliant | Closer Type | Max. Door Opening | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
410XTPHX689 | Gray | 2 1/4" | 12 1/4" | 3 1/2" | Non Handed | Yes | Hold Open | 85° to 130° | €321.16 | |
 |
410xCPSTx690 | Dark Bronze | 2 1/4" | 12 1/4" | 3 1/2" | Non Handed | Yes | Hold Open | 85° to 130° | €460.26 | |
 |
410xCPSTx689 | Gray | 2 1/4" | 12 1/4" | 3 1/2" | Non Handed | Yes | Hold Open | 85° to 130° | €460.26 | |
|
410XHDHX690 | Dark Bronze | 2 1/4" | 12 1/4" | 3 1/2" | Non Handed | Yes | Hold Open | 85° to 130° | €365.46 | |
 |
410XTPHX690 | Dark Bronze | 2 1/4" | 12 1/4" | 3 1/2" | Non Handed | Yes | Hold Open | 85° to 130° | €299.49 | |
 |
7500H 689 | Gray | 2 1/8" | 13 5/8" | 3 7/8" | Non Handed | No | - | 180° | €771.00 | |
 |
UNI8501H X 690 | Dark Bronze | 2 1/8" | 13" | 2 7/8" | Non Handed | Yes | Hold Open | 110° | €699.66 |
