NORTON 8301 Hydraulic Door Closer Series Aluminium
Item: AF2FNTModel: 8301Cross Ref: 6T312
7 In Stock
Ships within 2 days via
13.00% off
€240.96 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Door Closer |
| Ada Compliant | Yes |
| Arm Type | Regular |
| Closer Cycles | 25000000 |
| Closer Mounting Type | Standard, Parallel, Top Frame |
| Closer Performance | Standard Duty |
| Closer Series | 8000 Series |
| Closer Type | Non Hold Open |
| Closer Type | Non-Hold Open |
| Closing Operation Mode | Hydraulic |
| Color | Gray |
| Door Handing | Non Handed |
| Door Width Campatibility | 48" |
| Energy Source | Hydraulic |
| Exterior Door Width | 48" |
| Exterior Door Width-max. | 48" |
| Finish | Aluminum, Painted |
| Fire Rating | 3 hrs. |
| Hand Orientation | Non Handed |
| Height Between Mounting Holes | 3/4" |
| Housing Depth | 2 1/8" |
| Housing Height | 2 7/8" |
| Housing Length | 13" |
| Housing Width | 2 1/8" |
| Interior Door Width | 48" |
| Length Between Mounting Holes | 12" |
| Ligature Resistance | Not Ligature Resistant |
| Location Use | Interior/Exterior |
| Material | Aluminum |
| Max. Door Opening | 180° |
| Max. Door Opening | 180 Degrees |
| Max. Door Opening Angle | 180° |
| Min. Spring Size | 1 |
| Mounting Style | Top Frame |
| Operation Style | Manual |
| Performance Rating | Grade 1 Heavy Duty |
| Product Type | Door Closer |
| Projection | 2 3/16" |
| Projection From Wall | 2 3/4" |
| Projection From Wall | 2-3/4" |
| Spring Size | 6 |
| Spring Size | Adjustable 1 to 6 |
| Spring Type | Adjustable |
Shipping Info:
| Ship weight (kg) | 2.81 |
| Ship height (cm) | 8.89 |
| Ship length (cm) | 38.86 |
| Ship width (cm) | 16 |
| HS code | 8302413000 |
| Country of Origin | US |
Product Variants
| Product | Model | Housing Length | Housing Height | Color | Finish | Housing Depth | Max. Door Opening | Housing Width | Projection From Wall | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
CLP8301 x 690 | 13" | 2 1/2" | Dark Bronze | Dark Bronze Painted | 2 3/4" | 110° | 2 3/4" | 2 3/4" | €376.07 | |
 |
CLP8301 x 689 | 13" | 2 1/2" | Gray | Aluminum, Painted | 2 3/4" | 110° | 2 3/4" | 2 3/4" | €376.07 | |
 |
1601XAL | 9 3/4" | 2 5/8" | Gray | Aluminum, Painted | 2 7/8" | 180° | 2 7/8" | 2 7/8" | €273.93 | |
 |

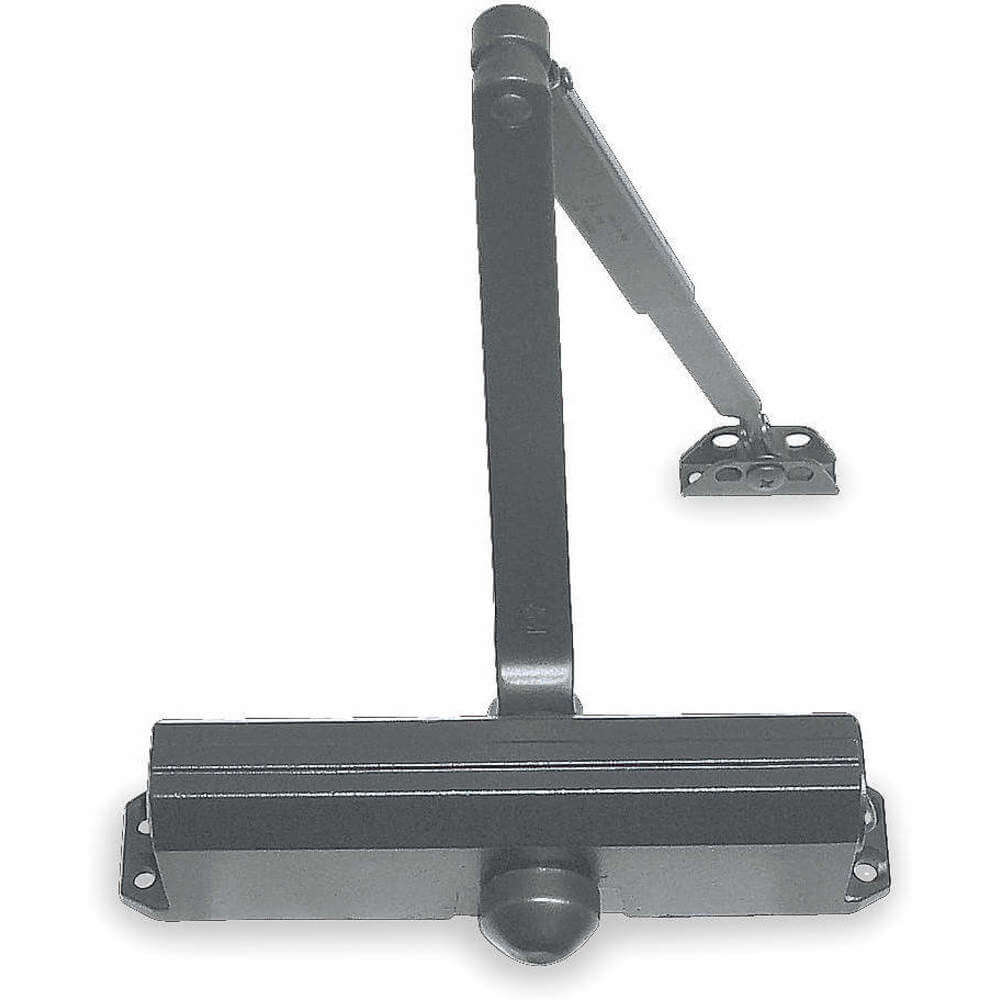

1601XBR | 9 3/4" | 2 5/8" | Dark Bronze | - | 2 7/8" | 180° | 2 7/8" | 2 7/8" | €194.94 | |
 |

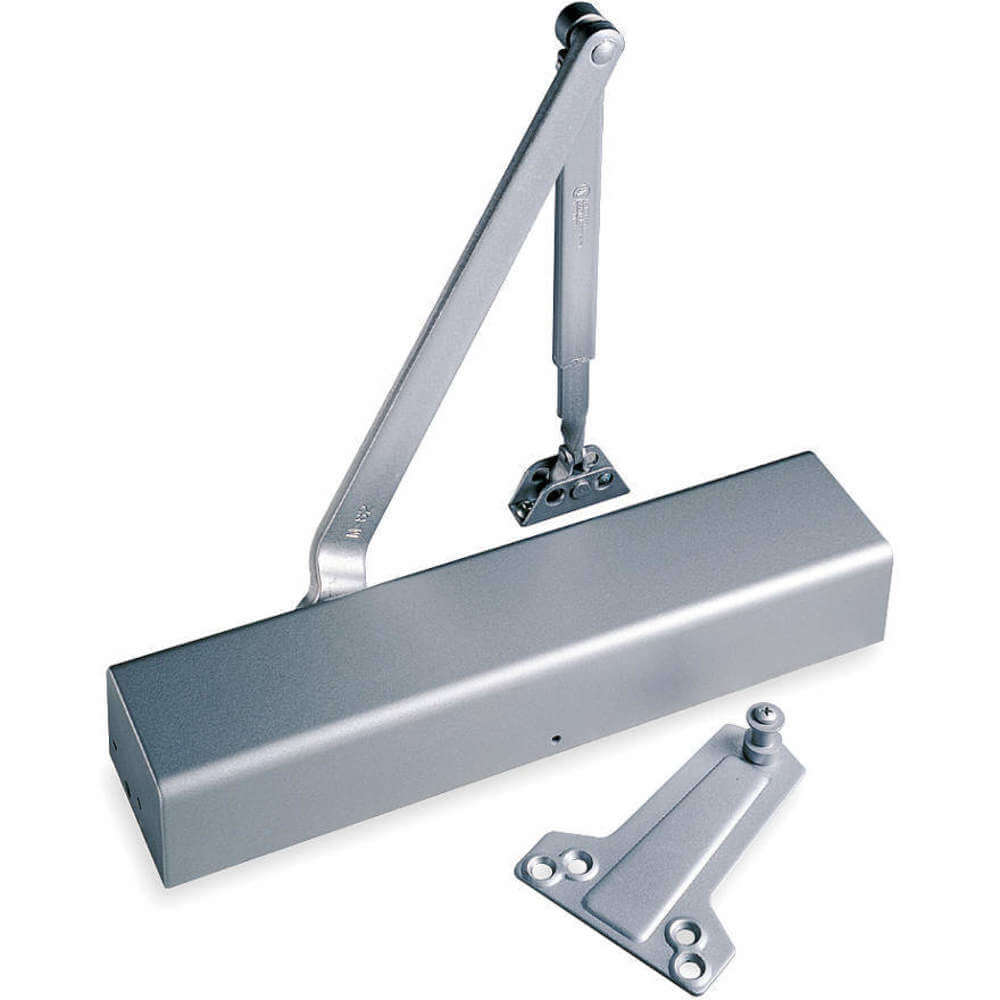

8501XAL | 13" | 2 7/8" | Gray | Aluminum, Painted | 2 1/8" | 180° | 2 1/8" | 2 3/4" | €301.76 | |
 |
8501XBR | 13" | 2 1/2" | Dark Bronze | Dark Bronze | - | 180° | 2 1/8" | 2 3/4" | €301.76 | |
 |

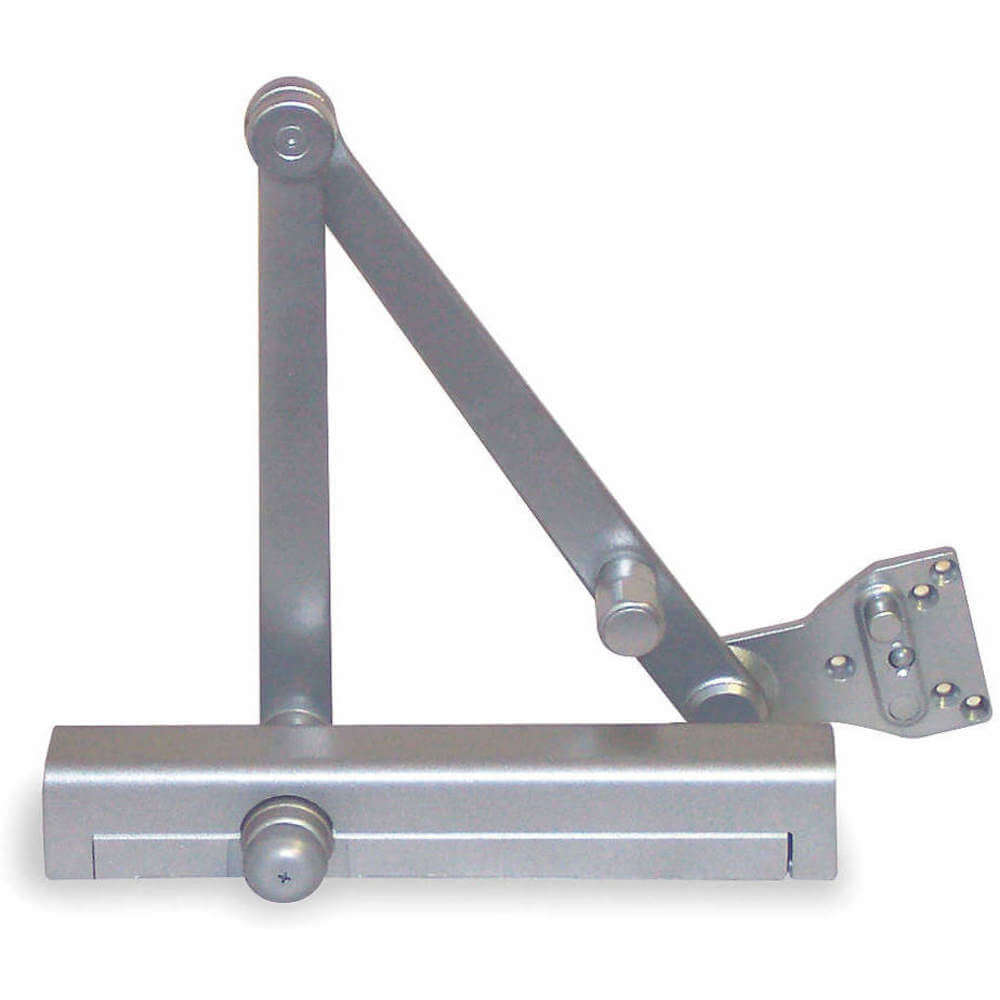

CLP8301-TXSA | 13" | 2 1/2" | Gray | Aluminum, Painted | 2 3/4" | 110° | 2 3/4" | 2 3/4" | €371.87 |
