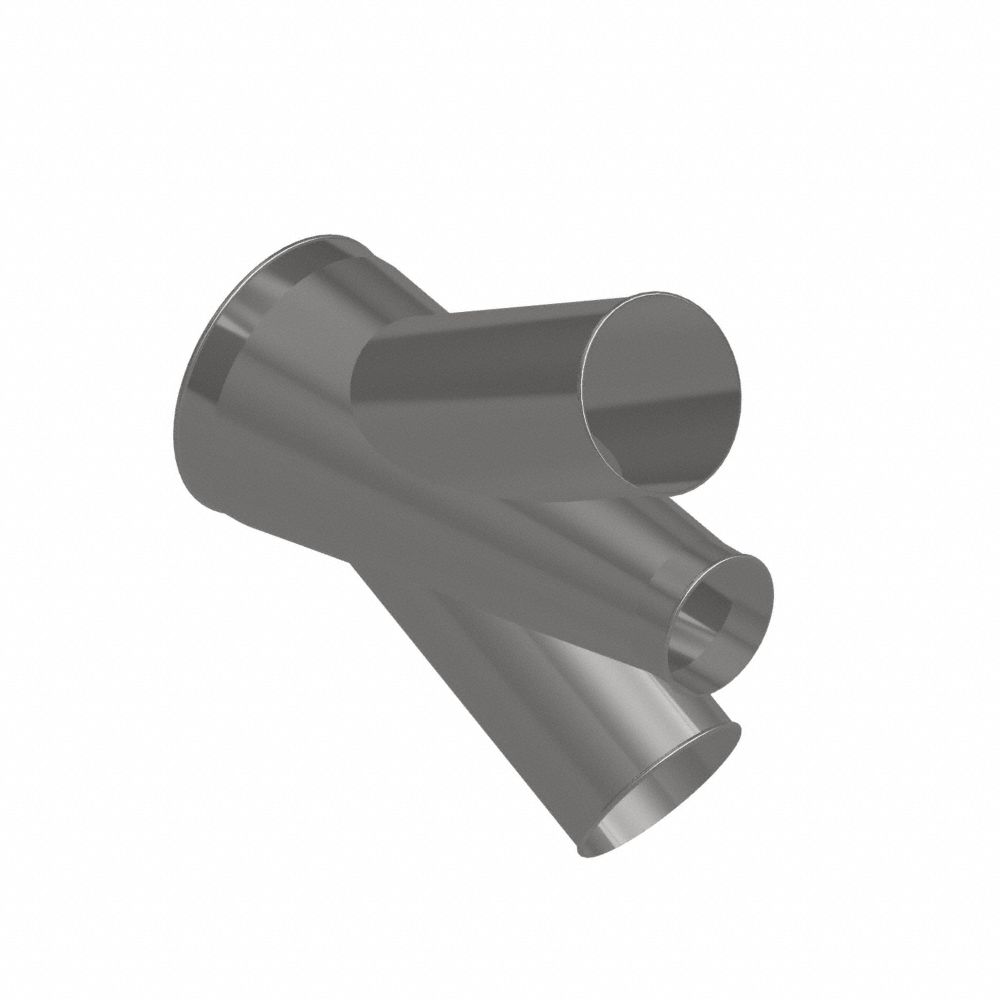

NORDFAB 8040103390 Dust Collection Duct and Fittings, Stainless Steel, for 6 Inch 8 Inch 12 Inch Duct Dia
Get it by Tuesday, Aug 25
13.00% off
€702.06 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Duct |
| Angle | 30° |
| Branch Dia. | 8" |
| Connection Type | Clamp Together |
| End Type | Quick Fit |
| Finish/material | Stainless Steel |
| For Duct Dia. | 6", 8", 12" |
| For Nominal Duct Dia. | 12", 6", 8" |
| Material | Stainless Steel |
| Material Grade | Grade 304 |
| Material Thickness | 22 ga. |
| Min. Pressure Rating | 2 in. wc |
| Outlet Dia. | 6" |
| Overall Length | 25" |
| Product Type | Double Branch |
| Series | QF Series |
Shipping Info:
| Ship weight (kg) | 5.4 |
| Ship height (cm) | 68.58 |
| Ship length (cm) | 63.5 |
| Ship width (cm) | 30.48 |
| Country of Origin | US |
Product Variants
| Model | Material | Material Thickness | For Nominal Duct Dia. | For Duct Dia. | Branch Dia. | Outlet Dia. | Overall Width | Overall Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 3226-0404-104000 | Steel | 22 ga. | - | 4" | 4" | 4" | 17" | 17" | €271.99 | |
| 3226-0606-106000 | Steel | 22 ga. | - | 6" | 6" | 6" | 10" | 21" | €310.57 | |
| 3226-0808-108000 | Steel | 22 ga. | - | 8" | 8" | 8" | 28" | 25" | €267.41 | |
| 3226-1010-110000 | Steel | 22 ga. | - | 10" | 10" | 10" | 33" | 29" | €344.26 | |
| 3226-1212-112000 | Steel | 22 ga. | - | 12" | 12" | 12" | 39" | 33" | €328.19 | |
| 3226-1414-114000 | Steel | 20 ga. | - | 14" | 14" | 14" | 44" | 37" | €471.86 | |
| 3226-1616-116000 | Steel | 20 ga. | - | 16" | 16" | 16" | 50" | 41" | €529.08 |
