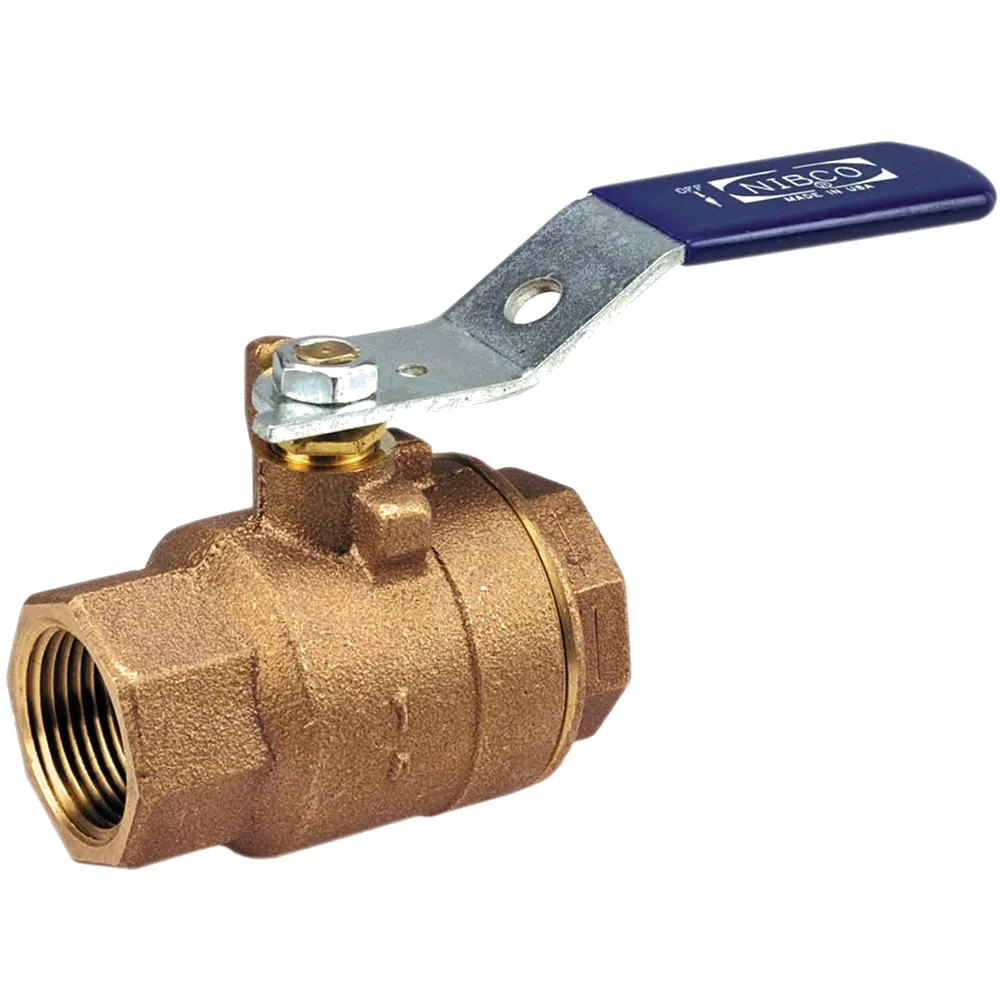

NIBCO NL951HB T-585-70-66 Two Piece Ball Valve, Female NPT Thread, 1 1/4 Inch Size, Stainless Steel Trim, Bronze
Item: AD4CUKModel: NL951HBCross Ref: 41E378 / T-585-70-66
7 In Stock
Ships within 2 days via
10.00% off
€292.47 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Material | Stainless Steel |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Bronze |
| Body Style | Inline |
| Connection Gender - Side 1 | Female |
| Connection Gender Side 2 | Female |
| Connection Size - Side 1 | 1 1/4" |
| Connection Size - Side 2 | 1 1/4" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| For Media | Water |
| Handle | Lever |
| Handle Color | Blue |
| Handle Finish | Clear Chromate Plastisol Coated, Zinc Plated |
| Handle Height | 3" |
| Handle Material | Zinc Plated Steel |
| Handle Type | Lever |
| Included Mounting | Not Applicable |
| Manufacturer Warranty | 5 yrs. |
| Max. Pressure | 600 psi WOG |
| Max. Pressure (cwp) | 600 psi |
| Max. Pressure (steam) | 600 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Max. Steam Pressure | 150 psi WSP |
| Media Temperature Range | -20°F to +400°F |
| Nominal Valve Size | 1 1/4" |
| Number Of Pieces | 2 |
| Overall Length | 4.19" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 1 1/4" |
| Port | Full |
| Pressure For Water | 600 psi WOG |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Standards | Mss Sp-110 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Temp. Range | -20°F to +400°F |
| Vacuum Service Rating | Not Applicable |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Vented Ball Valve | Vented |
Shipping Info:
| Ship weight (kg) | 1.51 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 18.29 |
| Ship width (cm) | 11.43 |
| HS code | 8481801085 |
| Country of Origin | US |
Product Variants
| Product | Model | Stem Material | Overall Length | Pipe Size | Ball Finish | Body Material | Connection Type | Max. Pressure | Max. Steam Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NL95004 | Silicon Bronze | 2" | 1/4" | Chrome Plated | Bronze | FNPT x FNPT | 600 psi WOG | 150 psi WSP | €42.61 | |
 |
NL95T36 | Silicon Bronze | 2.44" | 1/2" | Chrome Plated | Bronze | FNPT x FNPT | 600 psi WOG | 150 psi WSP | €78.04 | |
|
NL95T38 | Silicon Bronze | 2.94" | 3/4" | Chrome Plated | Bronze | FNPT x FNPT | 600 psi WOG | 150 psi WSP | €102.73 | |
|
NL95H04 | Stainless Steel | 2" | 1/4" | - | Bronze | FNPT x FNPT | 600 psi WOG | 150 psi WSP | €70.62 | |
|
NL95H05 | Stainless Steel | 2" | 3/8" | - | Bronze | FNPT x FNPT | 600 psi WOG | 150 psi WSP | €70.36 | |
|
NL95H06 | Stainless Steel | 2.44" | 1/2" | - | Bronze | FNPT x FNPT | 600 psi WOG | 150 psi WSP | €64.55 | |
|
NL95H08 | Stainless Steel | 2.94" | 3/4" | - | Bronze | FNPT x FNPT | 600 psi WOG | 150 psi WSP | €124.14 |
