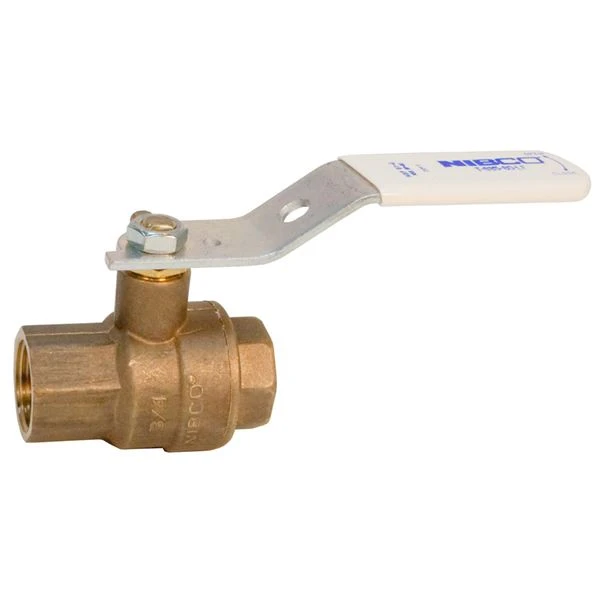

NIBCO NL99014 T-685-80-LF Two Piece Ball Valve, Female NPT Thread, 1/4 Inch Size, Lead Free Silicon Bronze
Item: AH4CYVModel: NL99014Cross Ref: 34CY68 / T-685-80-LF
7 In Stock
Ships within 2 days via
10.00% off
€46.61 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Compliance | Not Rated |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Material | Silicon Bronze |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Bronze |
| Body Style | Inline |
| Connection Gender - Side 1 | Female |
| Connection Gender Side 2 | Female |
| Connection Size - Side 1 | 1/4" |
| Connection Size - Side 2 | 1/4" |
| Connection Type | FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| For Media | Water |
| Handle | Lever |
| Handle Color | White |
| Handle Length | 3.95" |
| Handle Material | Plated Steel |
| Handle Type | Lever |
| Hose I.d. | 1/4" |
| Included Mounting | Not Applicable |
| Manufacturer Warranty | 5 yrs. |
| Max. Pressure | 600 psi |
| Max. Pressure (cwp) | 600 psi |
| Max. Pressure (steam) | 600 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Max. Steam Pressure | 100 psi WSP |
| Media Temperature Range | -20°F to +300°F |
| Nominal Valve Size | 1/4" |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| Number Of Pieces | 2 |
| Overall Length | 1.98" |
| Pipe Schedule Compatibility | Not Applicable |
| Port | Full |
| Seal Material | EPDM |
| Seat Material | PTFE |
| Stem Material | Silicon Bronze |
| Stem Type | Blowout Resistant |
| Temp. Range | Up To 300°F |
| Vacuum Service Rating | Not Applicable |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Valve Ways | 2-Way |
| Vented Ball Valve | Not Applicable |
Shipping Info:
| Ship weight (kg) | 0.21 |
| Ship height (cm) | 3.05 |
| Ship length (cm) | 12.7 |
| Ship width (cm) | 7.62 |
| Country of Origin | MX |
Product Variants
| Model | Body Material | Connection Type | Ball Material | Seal Material | Stem Material | Valve Size | Overall Length | Hose I.d. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| NL9901A | Bronze | FNPT | Silicon Bronze | EPDM | Silicon Bronze | - | 3.27" | 1" | €99.95 | |
| NL99016 | Lead Free Silicon Bronze | FIPT | Stainless Steel | Reinforced RPTFE | Bronze | 1/2" | - | - | €55.88 | |
| NL99015 | Lead Free Silicon Bronze | FIPT | Stainless Steel | Reinforced RPTFE | Bronze | 3/8" | - | - | €44.30 | |
| NL99018 | Lead Free Silicon Bronze | FIPT | Stainless Steel | Reinforced RPTFE | Bronze | 3/4" | - | - | €52.39 | |
| NL9901B | Lead Free Silicon Bronze | FIPT | Stainless Steel | Reinforced RPTFE | Bronze | 1 1/4" | - | - | €139.31 | |
| NL9901C | Lead Free Silicon Bronze | FIPT | Stainless Steel | Reinforced RPTFE | Bronze | 1 1/2" | - | - | €253.84 | |
| NL9901D | Lead Free Silicon Bronze | FIPT | Stainless Steel | Reinforced RPTFE | Bronze | 2" | - | - | €383.96 |
