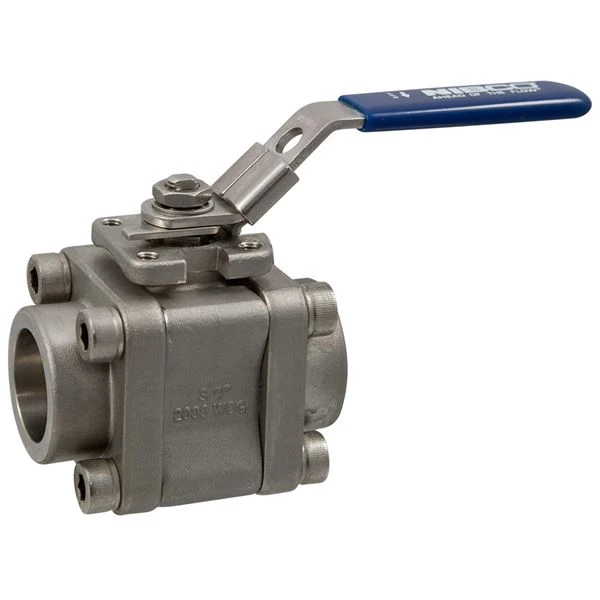

NIBCO NL9732B KM-590-S6-R-66-FS-LL Three Piece Ball Valve, K - Socket Weld, 1 1/4 Inch Size, Stainless Steel
Get it by Thursday, Dec 18
€808.44 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| Ball Body Type | Three Piece |
| Ball Material | Stainless Steel |
| Ball Operator | Locking Lever Handle With ISO Actuator Mounting Pad |
| Ball Port Style | Conventional Port |
| Ball Stem Material | Stainless Steel |
| Body Material | Stainless Steel |
| Connection Type | Socket Weld |
| Cv Coefficient | 103 |
| End Connection Type | K Socket Weld |
| Height | 2.92" |
| Length | 7.86" |
| Nominal Pipe Size | 1 1/4" |
| Potable Water Code | Not Ll Compliant Not Intend Potable |
| Pressure Rating (cwp) | 2000 psi CWP |
| Seal Material | Reinforced RPTFE |
| Seat Material | Reinforced Rptfe |
| Seat/seal Material | Reinforced RPTFE |
| Series | KM-590-S6-R-66-FS-LL Series |
| Stem Material | Stainless Steel |
| Trim Package | Stainless Steel |
| Turns/operation | Quarter Turn |
| Type | Ball Valve |
| Type Of Valve | Ball |
| Valve Operator | Locking Lever Handle With Iso Actuator Mounting Pad |
| Valve Size | 1 1/4" |
| Weight | 5.7 lbs. |
| Width | 5.1" |
Shipping Info:
| Ship weight (kg) | 2.57 |
| Ship height (cm) | 7.42 |
| Ship length (cm) | 19.96 |
| Ship width (cm) | 12.95 |
| Country of Origin | TW |
Product Variants
| Model | Valve Size | Coefficient Of Volume | Height | Body Material | Connection Type | Ball Material | Seat Material | Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| NL9732A | 1" | 64 | 2.65" | Stainless Steel | Socket Weld | Stainless Steel | Reinforced Rptfe | Reinforced RPTFE | €655.11 | |
| NL9732C | 1 1/2" | 143 | 3.36" | Stainless Steel | Socket Weld | Stainless Steel | Reinforced Rptfe | Reinforced RPTFE | €1,098.83 | |
| NL97326 | 1/2" | 19 | 1.94" | Stainless Steel | Socket Weld | Stainless Steel | Reinforced Rptfe | Reinforced RPTFE | €388.74 | |
| NL9732D | 2" | 245 | 3.98" | Stainless Steel | Socket Weld | Stainless Steel | Reinforced Rptfe | Reinforced RPTFE | €1,445.76 | |
| NL97328 | 3/4" | 37 | 2.16" | Stainless Steel | Socket Weld | Stainless Steel | Reinforced Rptfe | Reinforced RPTFE | €443.48 |
