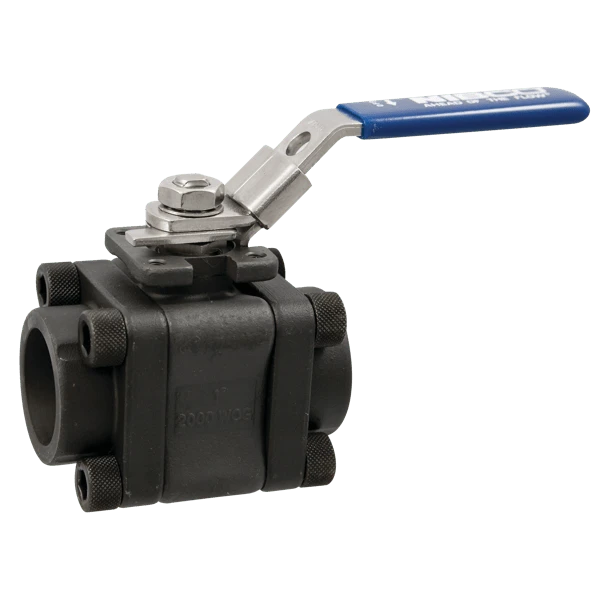

NIBCO NL97028 KM-590-CS-R-66-FS-LL Three Piece Ball Valve, K - Socket Weld, 3/4 Inch Size, Carbon Steel
Get it by Thursday, Dec 18
€202.12 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| Ball Material | Stainless Steel |
| Body Material | Carbon Steel |
| Cold Working Pressure | 2000 psi |
| Connection Size | 3/4" |
| Connection Type | Socket Weld |
| Handle Style | Locking Lever With ISO Actuator Mounting Pad |
| Height | 2.8" |
| Length | 5.54" |
| Maximum Temperature | 400°F |
| Port Style | Conventional |
| Potable Water Code | Not Ll Compliant Not Intend Potable |
| Seat Material | RPTFE |
| Stem Design | Blowout Proof |
| Stem Material | Stainless Steel |
| Turns/operation | Quarter Turn |
| Type | Ball Valve |
| Valve Ball Body Type | Three Piece |
| Valve Operator | Locking Lever Handle With Iso Actuator Mounting Pad |
| Valve Size | 3/4" |
| Valve Type | Ball Valve |
| Weight | 2.3 lbs. |
| Width | 4.1" |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 7.11 |
| Ship length (cm) | 14.07 |
| Ship width (cm) | 10.41 |
| Country of Origin | TW |
Product Variants
| Model | Valve Size | Connection Size | Height | Body Material | Connection Type | Ball Material | Seat Material | Stem Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| NL9702C | 1 1/2" | 1 1/2" | 3.85" | Carbon Steel | Socket Weld | Stainless Steel | RPTFE | Stainless Steel | €455.56 | |
| NL9702A | 1" | 1" | 2.88" | Carbon Steel | Socket Weld | Stainless Steel | RPTFE | Stainless Steel | €272.63 | |
| NL9702B | 1 1/4" | 1 1/4" | 3.58" | Carbon Steel | Socket Weld | Stainless Steel | RPTFE | Stainless Steel | €422.81 | |
| NL9702D | 2" | 2" | 4.16" | Carbon Steel | Socket Weld | Stainless Steel | RPTFE | Stainless Steel | €717.84 |
