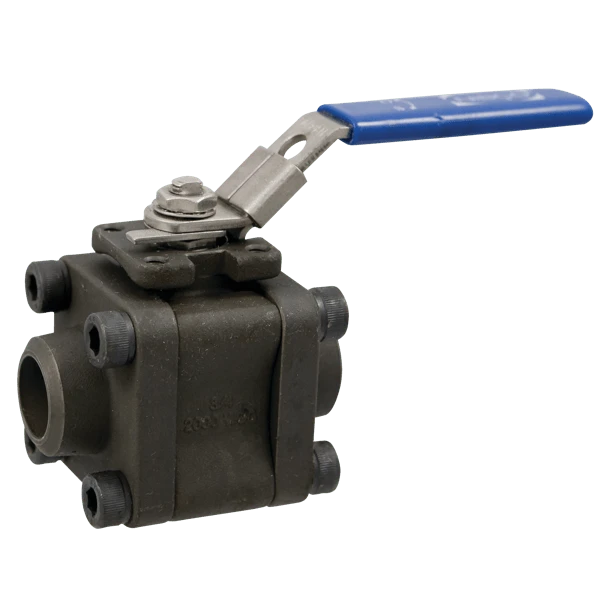

NIBCO NL9701A BM-590-CS-R-66-FS-LL Three Piece Ball Valve, Butt Weld, 1 Inch Size, Carbon Steel
Get it by Wednesday, Dec 17
€330.42 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| Ball Material | Stainless Steel |
| Body Material | Carbon Steel |
| Coefficient Of Volume | 64 |
| Cold Working Pressure | 2000 psi |
| Connection Size | 1" |
| Connection Type | B-Butt Weld |
| Handle Style | Locking Lever With ISO Actuator Mounting Pad |
| Height | 2.36" |
| Length | 6.67" |
| Maximum Temperature | 400°F |
| Port Style | Conventional |
| Potable Water Code | Not Ll Compliant Not Intend Potable |
| Seal Material | Reinforced RPTFE |
| Seat Material | Reinforced Rptfe |
| Stem Design | Blowout Proof |
| Stem Material | Stainless Steel |
| Turns/operation | Quarter Turn |
| Type | Ball Valve |
| Valve Ball Body Type | Three Piece |
| Valve Operator | Locking Lever Handle With Iso Actuator Mounting Pad |
| Valve Size | 1" |
| Valve Type | Ball Valve |
| Weight | 3.5 lbs. |
| Width | 4.37" |
Shipping Info:
| Ship weight (kg) | 1.58 |
| Ship height (cm) | 5.99 |
| Ship length (cm) | 16.94 |
| Ship width (cm) | 11.1 |
| Country of Origin | TW |
Product Variants
| Model | Valve Size | Coefficient Of Volume | Connection Size | Height | Body Material | Connection Type | Ball Material | Seat Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| NL9701C | 1 1/2" | 143 | 1 1/2" | 3.09" | Carbon Steel | B-Butt Weld | Stainless Steel | Reinforced Rptfe | €553.68 | |
| NL9701B | 1 1/4" | - | 1 1/4" | 2.9" | Carbon Steel | B-Butt Weld | Stainless Steel | Reinforced Rptfe | €669.83 | |
| NL97016 | 1/2" | 19 | 1/2" | 1.8" | Carbon Steel | B-Butt Weld | Stainless Steel | Reinforced Rptfe | €199.24 | |
| NL9701D | 2" | 245 | 2" | 3.51" | Carbon Steel | B-Butt Weld | Stainless Steel | Reinforced Rptfe | €717.84 | |
| NL97018 | 3/4" | 37 | 3/4" | 2.09" | Carbon Steel | B-Butt Weld | Stainless Steel | Reinforced Rptfe | €245.56 |
