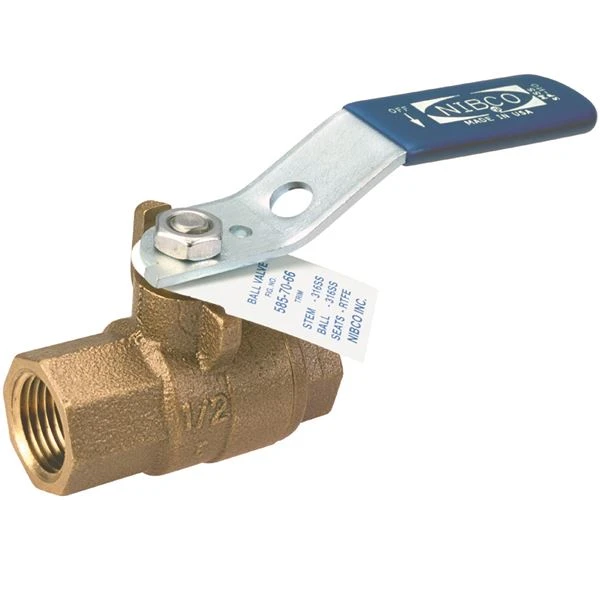

NIBCO NL95T36 T-585-70 Two Piece Ball Valve, Female NPT Thread, 1/2 Inch Size, Full Port, Bronze
Item: AD4CTTModel: NL95T36Cross Ref: 41E362 / T-585-70
7 In Stock
Ships within 2 days via
5.00% off
€74.14 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Ball Valve |
| 3-a Certified | Not Rated |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Finish | Brass , Chrome Plated |
| Ball Port Style | Full Port |
| Ball Valve Product Group | Manual |
| Body Material | Bronze |
| Body Style | Inline |
| Connection Gender Side 2 | Female |
| Connection Gender-side 1 | Female |
| Connection Size-side 1 | 1/2" |
| Connection Size-side 2 | 1/2" |
| Connection Type | FNPT x FNPT |
| Connection Type-side 1 | NPT |
| Connection Type-side 2 | NPT |
| For Media | Air, Steam, Water |
| Handle | Lever |
| Handle Finish | Clear Chromate Plastisol Coated, Zinc Plated |
| Handle Height | 1 22/25" |
| Handle Material | Zinc Plated Steel |
| Handle Type | Nib Seal |
| Included Mounting | Not Applicable |
| Max. Pressure | 600 psi WOG |
| Max. Pressure (cwp) | 600 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Max. Pressure-steam | 600 psi |
| Max. Steam Pressure | 150 psi WSP |
| Media Temp. | -20°F to +400°F |
| No. Of Pieces | 2 |
| Nominal Valve Size | 1/2" |
| Overall Length | 2.44" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 1/2" |
| Port | Full |
| Pressure For Water | 600 psi WOG |
| Seal Material | PTFE |
| Seat Material | PTFE |
| Stem Material | Silicon Bronze |
| Stem Type | Blowout Resistant |
| Temp. | -20°F to +400°F |
| Vacuum Service Rating | Not Applicable |
| Valve Body Style | Straight |
| Valve Construction | Two-Piece |
| Vented Ball Valve | Not Applicable |
Shipping Info:
| Ship weight (kg) | 0.34 |
| Ship height (cm) | 6.6 |
| Ship length (cm) | 13.46 |
| Ship width (cm) | 11.43 |
| HS code | 8481801085 |
| Country of Origin | US |
Product Variants
| Product | Model | Stem Material | Ball Material | Nominal Valve Size | For Media | Connection Size-side 2 | Connection Size-side 1 | Handle Height | Vented Ball Valve | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
NL95004 | Silicon Bronze | - | 1/4" | Air, Steam, Water | 1/4" | 1/4" | 1 3/4" | Not Applicable | €42.61 | |
|
NL95T38 | Brz - Bronze | Brass With Hard Chrome Plate | - | - | - | - | - | - | €102.73 | |
 |
NL95H04 | Stainless Steel | Stainless Steel | 1/4" | Water | 1/4" | 1/4" | 1 3/4" | Vented | €70.62 | |
|
NL95H05 | Stainless Steel | Stainless Steel | 3/8" | Water | 3/8" | 3/8" | 1 3/4" | Vented | €70.36 | |
|
NL95H06 | Stainless Steel | Stainless Steel | 1/2" | Water | 1/2" | 1/2" | 1 22/25" | Vented | €64.55 | |
|
NL95H08 | Stainless Steel | Stainless Steel | 3/4" | Water | 3/4" | 3/4" | 2 1/4" | Vented | €124.14 | |
|
NL95H0A | Stainless Steel | Stainless Steel | 1" | Water | 1" | 1" | 2.38" | Vented | €150.19 |
