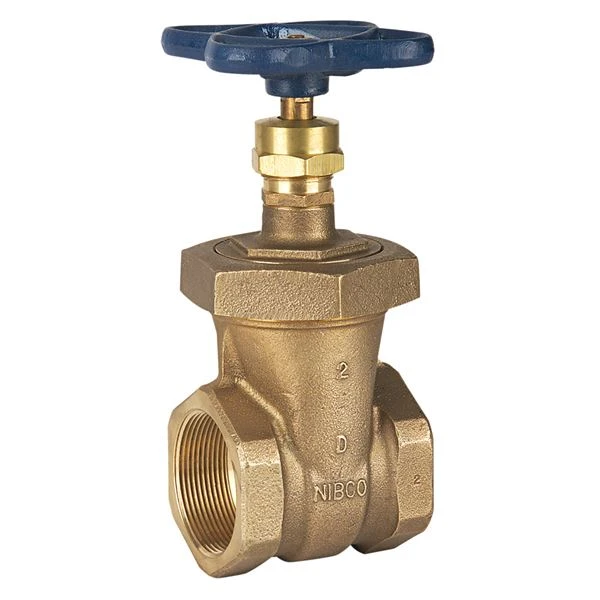

NIBCO NL1T00A T-136 Gate Valve, Female NPT Thread, 1 Inch Size, Cast Bronze
Get it by Thursday, Dec 18
€348.28 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gate Valve |
| Body Material | Cast Bronze |
| Bonnet Style | Union |
| Cold Working Pressure | 300 psi |
| Connection Size | 1" |
| Connection Type | FIPT |
| Handle Style | Standard Handwheel |
| Height | 3.27" |
| Length | 5.62" |
| Maximum Temperature | 366°F |
| Operation Type | Standard Handwheel |
| Potable Water Code | Not Ll Compliant Not Intend Potable |
| Seat Material | Bronze |
| Seat/seal Material | Bronze |
| Stem Design | Non Rising |
| Turns/operation | Multi Turn |
| Type | Gate Valve |
| Valve Gate Stem Design | Non Rising Stem |
| Valve Multi-turn Bonnet Design | Union Bonnet |
| Valve Size | 1" |
| Valve Type | Gate Valve |
| Weight | 2.258 lbs. |
| Width | 3.27" |
Shipping Info:
| Ship weight (kg) | 1.02 |
| Ship height (cm) | 8.31 |
| Ship length (cm) | 14.27 |
| Ship width (cm) | 8.31 |
| Country of Origin | US |
Product Variants
| Model | Connection Size | Height | Body Material | Seat Material | Connection Type | Type | Bonnet Style | Valve Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| NL1T00C | 1 1/2" | 4.52" | Cast Bronze | Bronze | FIPT | Gate Valve | Union | Gate Valve | €611.90 | |
| NL1T00B | 1 1/4" | 3.27" | Cast Bronze | Bronze | FIPT | Gate Valve | Union | Gate Valve | €495.98 | |
| NL1T00E | 2 1/2" | 5.39" | Cast Bronze | Bronze | FIPT | Gate Valve | Union | Gate Valve | €1,944.31 | |
| NL1T004 | 1/4" | 2.5" | Cast Bronze | Bronze | FIPT | Gate Valve | Union | Gate Valve | €269.35 | |
| NL1T00D | 2" | 4.5" | Cast Bronze | Bronze | FIPT | Gate Valve | Union | Gate Valve | €756.44 | |
| NL1T006 | 1/2" | 2.5" | Cast Bronze | Bronze | FIPT | Gate Valve | Union | Gate Valve | €264.42 | |
| NL1T00F | 3" | 5.38" | Cast Bronze | Bronze | FIPT | Gate Valve | Union | Gate Valve | €2,666.99 |
