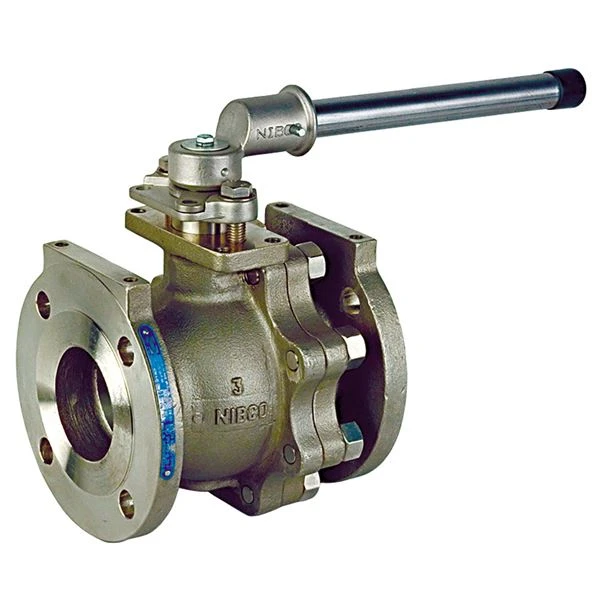

NIBCO NG308FF F-515-S6-F-66-FS Ball Valve, Flanged, 3 Inch Size, Stainless Steel, Split-body
Get it by Friday, Feb 13
€4,137.69 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| Ball Body Type | Split Body |
| Ball Material | Stainless Steel |
| Ball Operator | CS Standard Lever Handle |
| Ball Port Style | Full Port |
| Ball Stem Material | Stainless Steel |
| Body Material | Stainless Steel |
| Coefficient Of Volume | 1400 |
| Connection Type | Flanged |
| End Connection Type | F Flanged |
| Height | 8.07" |
| Length | 16.44" |
| Nominal Pipe Size | 3" |
| Pressure Rating (cwp) | 275 psi CWP |
| Seal Material | Reinforced RPTFE |
| Seat Material | Reinforced Rptfe |
| Seat/seal Material | Reinforced RPTFE |
| Series | F-515-S6-F-66-FS Series |
| Stem Material | Stainless Steel |
| Trim Package | Stainless Steel |
| Turns/operation | Quarter Turn |
| Type | Ball Valve |
| Type Of Valve | Ball |
| Valve Operator | CS Standard Lever Handle |
| Valve Size | 3" |
| Width | 11.61" |
Shipping Info:
| Ship weight (kg) | 22.62 |
| Ship height (cm) | 20.5 |
| Ship length (cm) | 41.76 |
| Ship width (cm) | 29.49 |
| Country of Origin | US |
Product Variants
| Model | Valve Size | Coefficient Of Volume | Height | Body Material | Connection Type | Ball Material | Seat Material | Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| NG308GL | 8" | 10200 | 20.2" | Stainless Steel | Flanged | Stainless Steel | Reinforced Rptfe | Reinforced RPTFE | €26,953.46 | |
| NG308GN | 12" | 25300 | 27.84" | Stainless Steel | Flanged | Stainless Steel | Reinforced Rptfe | Reinforced RPTFE | €94,133.15 | |
| NG308GM | 10" | 14400 | 21" | Stainless Steel | Flanged | Stainless Steel | Reinforced Rptfe | Reinforced RPTFE | €46,693.35 | |
| NG308FA | 1" | - | 4.25" | Stainless Steel | Flanged | Stainless Steel | Reinforced Rptfe | Reinforced RPTFE | €2,196.89 | |
| NG308FM | 10" | 14400 | 19.69" | Stainless Steel | Flanged | Stainless Steel | Reinforced Rptfe | Reinforced RPTFE | €43,796.33 | |
| NG308FN | 12" | 25300 | 22.83" | Stainless Steel | Flanged | Stainless Steel | Reinforced Rptfe | Reinforced RPTFE | €83,741.97 | |
| NG308FD | 2" | 440 | 6" | Stainless Steel | Flanged | Stainless Steel | Reinforced Rptfe | Reinforced RPTFE | €2,663.22 |
