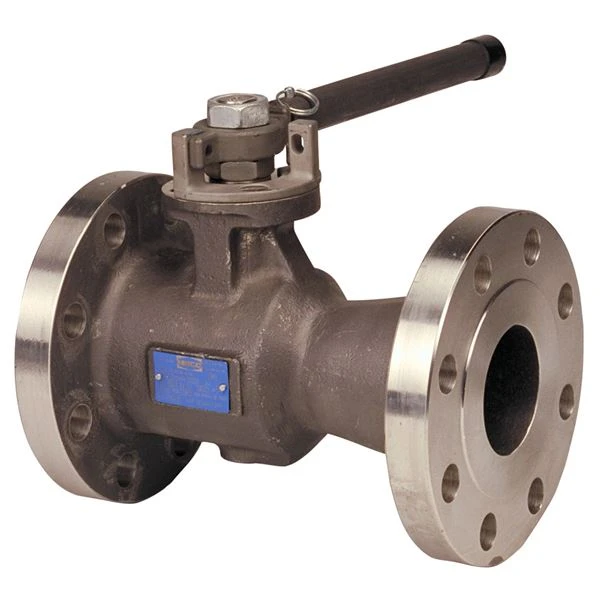

NIBCO NG11706 F-530-S6-R-66-FS Ball Valve, Flanged, 1/2 Inch Size, Class 300, Stainless Steel, Unibody
Get it by Tuesday, Aug 18
€2,255.67 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| Ball Body Type | One Piece |
| Ball Material | Stainless Steel |
| Ball Operator | CS Standard Lever Handle |
| Ball Port Style | Reduced Port |
| Ball Stem Material | Stainless Steel |
| Body Material | Stainless Steel |
| Connection Type | Flanged |
| Cv Coefficient | 11 |
| End Connection Type | F Flanged |
| Height | 3.81" |
| Length | 9.87" |
| Nominal Pipe Size | 1/2" |
| Pressure Rating (cwp) | 720 psi CWP |
| Seal Material | Reinforced Rptfe |
| Seat Material | Reinforced Rptfe |
| Seat/seal Material | Reinforced RPTFE |
| Series | F-530-S6-R-66-FS Series |
| Stem Material | Stainless Steel |
| Trim Package | Stainless Steel |
| Turns/operation | Quarter Turn |
| Type | Ball Valve |
| Type Of Valve | Ball |
| Valve Operator | CS Standard Lever Handle |
| Valve Size | 1/2" |
| Width | 4.82" |
Shipping Info:
| Ship weight (kg) | 2.16 |
| Ship height (cm) | 9.68 |
| Ship length (cm) | 25.07 |
| Ship width (cm) | 12.24 |
| Country of Origin | US |
Product Variants
| Model | Valve Size | Height | Nominal Pipe Size | Valve Operator | Ball Operator | Coefficient Of Volume | Cv Coefficient | Ball Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| NG1170M | 10" | 17.5" | 10" | Bare Stem | Bare Stem | 3507 | - | Stainless Steel | €37,137.43 | |
| NG1170C | 1 1/2" | 6.13" | 1 1/2" | CS Standard Lever Handle | CS Standard Lever Handle | 137 | - | Stainless Steel | €3,252.23 | |
| NG11708 | 3/4" | 4.68" | 3/4" | CS Standard Lever Handle | CS Standard Lever Handle | - | 25 | Stainless Steel | €2,841.68 | |
| NG1170F | 3" | 8.25" | 3" | CS Standard Lever Handle | CS Standard Lever Handle | - | 482 | Stainless Steel | €5,068.18 | |
| NG1170D | 2" | 6.5" | 2" | CS Standard Lever Handle | CS Standard Lever Handle | 217 | - | Stainless Steel | €3,818.07 | |
| NG1170H | 4" | 10" | 4" | CS Standard Lever Handle | CS Standard Lever Handle | 790 | - | Stainless Steel | €7,337.56 | |
| NG1170L | 8" | 15" | 8" | Bare Stem | Bare Stem | 2164 | - | Stainless Steel | €24,190.29 |
