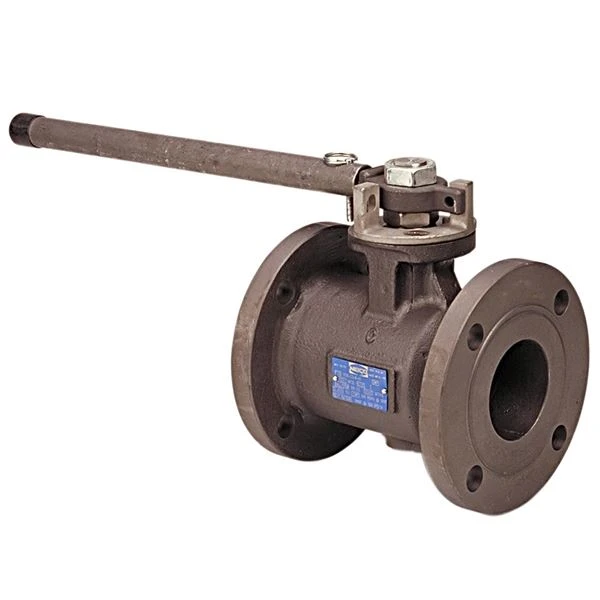

NIBCO NG1046M F-510-CS-R-66-FS Ball Valve, Flanged, 10 Inch Size, Carbon Steel, Unibody
Get it by Thursday, Dec 18
€31,328.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Ball Valve |
| Ball Body Type | One Piece |
| Ball Material | Stainless Steel |
| Ball Operator | Gear Operator |
| Ball Port Style | Reduced Port |
| Ball Stem Material | Stainless Steel |
| Body Material | Carbon Steel |
| Coefficient Of Volume | 3507 |
| Connection Type | Flanged |
| End Connection Type | F Flanged |
| Height | 19.96" |
| Length | 41.08" |
| Nominal Pipe Size | 10" |
| Pressure Rating (cwp) | 285 psi CWP |
| Seal Material | Reinforced RPTFE |
| Seat Material | Reinforced Rptfe |
| Seat/seal Material | Reinforced RPTFE |
| Series | F-510-CS-R-66-FS Series |
| Stem Material | Stainless Steel |
| Trim Package | Stainless Steel |
| Turns/operation | Quarter Turn |
| Type | Ball Valve |
| Type Of Valve | Ball |
| Valve Operator | Gear Operator |
| Valve Size | 10" |
| Width | 27.56" |
Shipping Info:
| Ship weight (kg) | 187.04 |
| Ship height (cm) | 50.7 |
| Ship length (cm) | 104.34 |
| Ship width (cm) | 70 |
| Country of Origin | US |
Product Variants
| Model | Valve Size | Coefficient Of Volume | Height | Connection Size | Body Material | Connection Type | Ball Material | Seat Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| NG1046N | 12" | - | 19.69" | - | Carbon Steel | Flanged | Stainless Steel | Reinforced Rptfe | €46,250.20 | |
| NG1040N | 12" | - | 14" | 12" | Carbon Steel | Flanged | Stainless Steel | Reinforced Rptfe | €40,952.08 | |
| NG1040M | 10" | 3507 | 13" | 10" | Carbon Steel | Flanged | Stainless Steel | Reinforced Rptfe | €25,492.74 | |
| NG1040A | 1" | - | 4.31" | 1" | Carbon Steel | Flanged | Stainless Steel | Reinforced Rptfe | €1,177.16 | |
| NG10406 | 1/2" | - | 3.52" | 1/2" | Carbon Steel | Flanged | Stainless Steel | Reinforced Rptfe | €881.17 | |
| NG1040D | 2" | 217 | 6" | 2" | Carbon Steel | Flanged | Stainless Steel | Reinforced Rptfe | €1,471.04 | |
| NG10408 | 3/4" | - | 3.94" | 3/4" | Carbon Steel | Flanged | Stainless Steel | Reinforced Rptfe | €1,054.47 |
