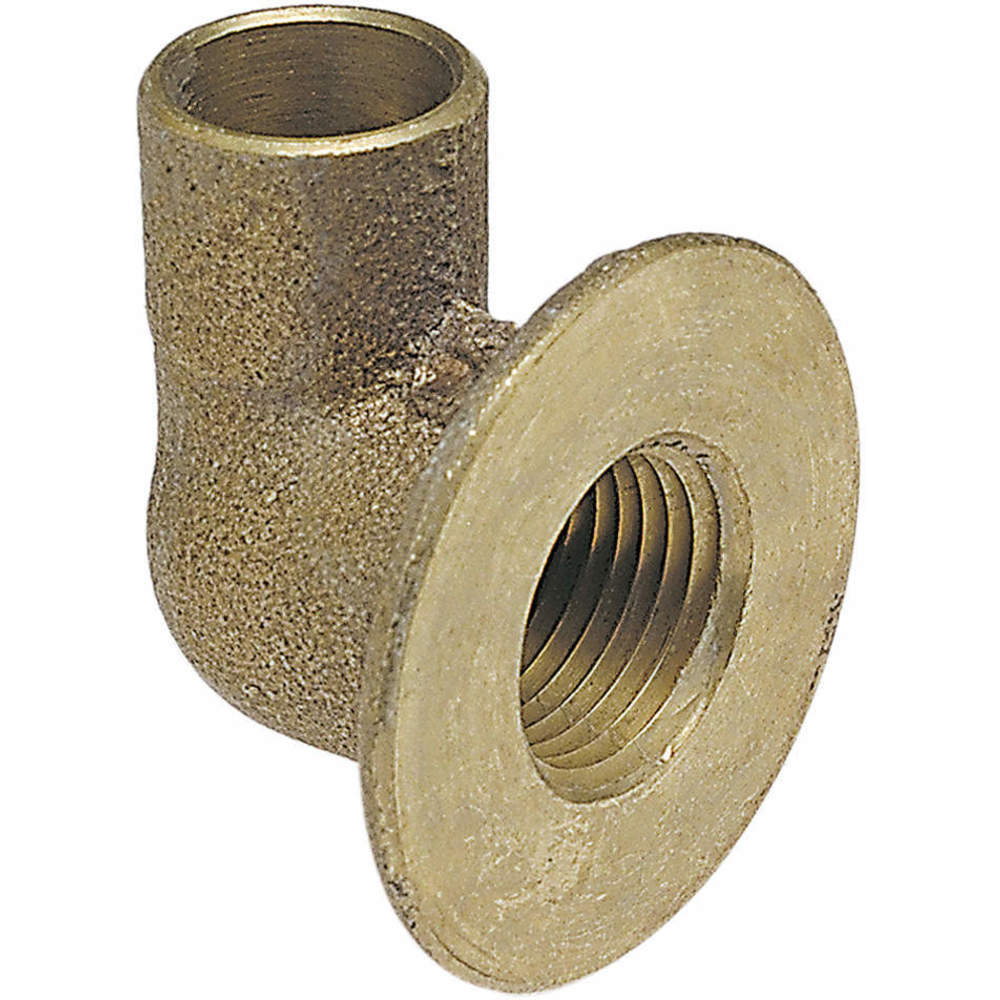

NIBCO 708 1/2 Flanged Sink Elbow 90 Cast Bronze
Item: AC6WHXModel: 708 1/2Cross Ref: 36N509
7 In Stock
Ships within 2 days via
5.00% off
€24.12 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Flanged Sink Elbow, 90 Degrees |
| Application | Air, Non Potable Water |
| Basic Pipe Fitting Material | Metal |
| Basic Pipe Fitting Shape | Elbow |
| Body Material | Cast Bronze |
| Connection Type | C x FNPT |
| Fitting Material | Cast Bronze |
| Fitting Side A Connection Type | Cup |
| Fitting Side A Copper Tube Size | 1/2" |
| Fitting Side A Tube Outside Dia. | 5/8" |
| Fitting Side B Connection Type | FNPT |
| Fitting Side B Pipe Size | 1/2" |
| Flange Outside Dia. | 1 3/4" |
| Flannge Outside Dia. | 1 3/4" |
| Material Grade | Grade C84400 |
| Max. Operating Pressure | 577 psi @ 200°F |
| Max. Operating Temp. | 400°F |
| Max. Pressure | 577 psi @ 200°F |
| Min. Operating Temp. | 20°F |
| Outside Dia. | 5/8" x 1/2" |
| Resistance Properties | Dezincification Resistant |
| Size | 1/2" |
| Specific Fitting Shape | 90° Sink Flange Elbow |
| Temp. | -20°F to +400°F |
Shipping Info:
| Ship weight (kg) | 0.09 |
| Ship height (cm) | 4.06 |
| Ship length (cm) | 5.08 |
| Ship width (cm) | 4.32 |
| HS code | 7412200085 |
| Country of Origin | MX |
