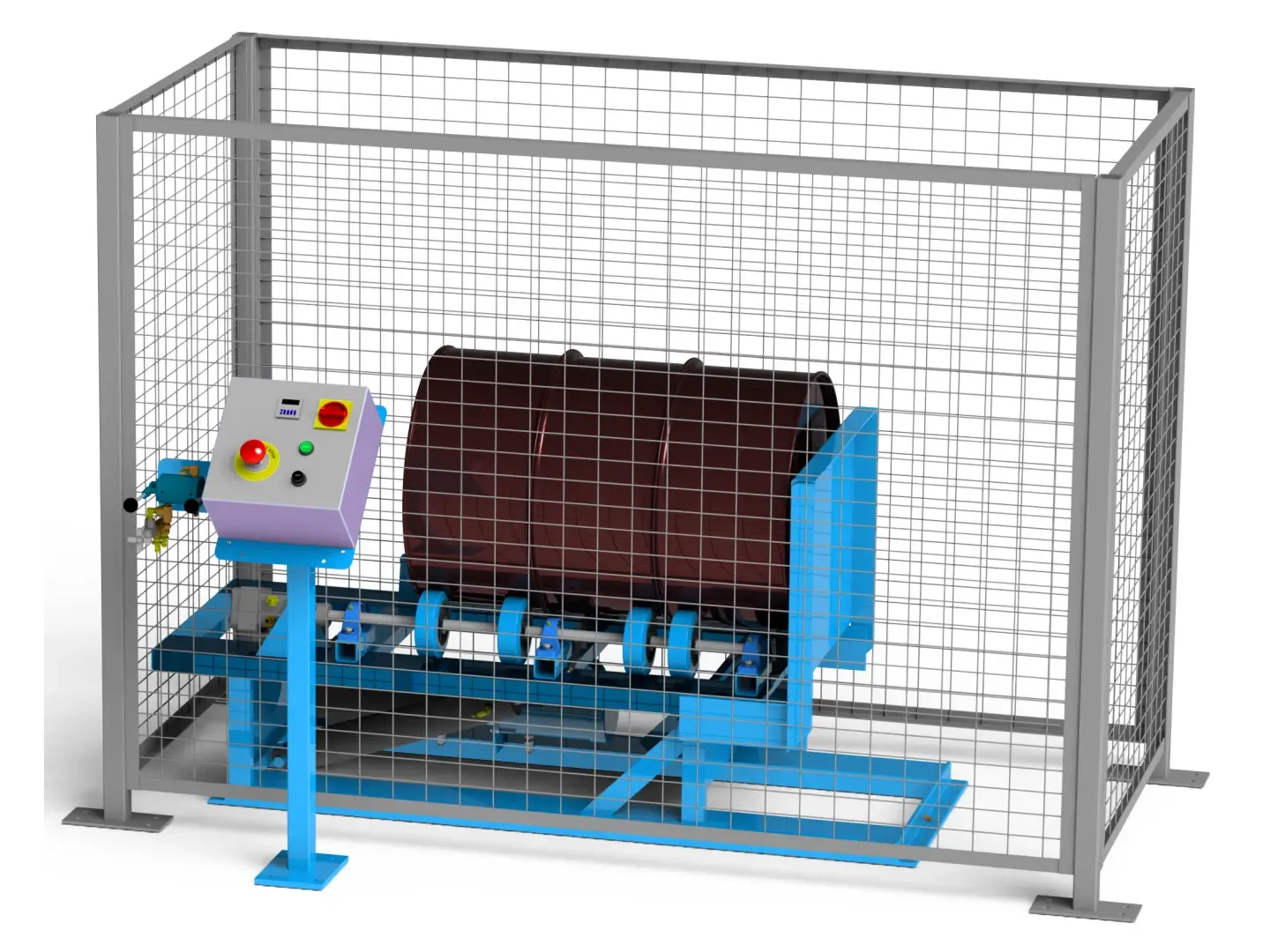

MORSE DRUM 456-3-50-CE CE-marked Hydra-Lift Drum Roller, 400v, 50Hz, 3 Phase, 454 kg Cap
Get it by Monday, Aug 24
€12,733.88 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Hydra-Lift Drum Roller |
| Amps | 1.8A |
| Amps Drawn | 1.8A |
| Capacity | 1000 lbs. |
| Capacity Dry | 400 lbs. |
| Capacity Liquids | 1000 lbs. |
| Drum Dia. | 6" to 26" |
| Drum Height | 0" to 40" |
| Drum Material | Steel, Plastic |
| Drum Material | Plastic, Steel |
| Drum Speed | 4 RPM to 14 RPM, RPM Is Based On 22.5" (57.15 cm) Diameter Drum , 4-16 RPM |
| Dryload Capacity | 400 lbs. |
| Explosion Proof | No |
| Frequency | 50 Hz |
| Hp | 1 hp |
| Lift Style | Hand Truck Or Hoist |
| Liquid Capacity | 1000 lbs. |
| Max. Hydraulic Pressure | 2100 psi |
| Max. Operating Temp. | 140 Deg. F |
| Max. Operating Temp. | 140°F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Phase | 3 |
| Product Datasheet | morse-drum-456-1-50-ce.pdf |
| Roller Capacity | 1000 lbs. |
| Speed Type | Variable |
| Style | TEFC |
| Tilt Style | Ergonomic Powered Hydraulics |
| Timer | 0 hr. to 16 hrs. |
| Type | Stationary |
| Voltage | 400V |
Shipping Info:
| Ship weight (kg) | 649.8 |
| Ship height (cm) | 180.34 |
| Ship length (cm) | 228.6 |
| Ship width (cm) | 114.3 |
| HS code | 8479820080 |
| Country of Origin | US |
Product Details:
- 3-Phase / 400v version of the Morse Drum 456 CE-marked Hydra-lift drum roller. Includes CE marking and tested in compliance with European Machinery Directive
- Rotate the dry or liquid contents of a closed steel drum up to 200 liter (55 gallon) in size. Use POLY-456 if you need to rotate a plastic drum
- Unit comes with powered tilt for shifting an upright drum into horizontal position. Rotates drum at a variable speed between 4 - 16 RPM and includes a timer
- Includes (i) hydraulic drum roller, (ii) gate enclosure with safety interlock, (iii) external controls and (iv) ships in an export crate. Not for use in hazardous environments
Documentation:
Product Variants
| Product | Model | Phase | Voltage | Amps Drawn | Amps | Max. Operating Temp. | Capacity Dry | Capacity Liquids | Drum Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
|
456-1-50-CE | 1 | 220V | 6.2A | 6.2A | 130°F | 400 lbs. | 1000 lbs. | Plastic, Steel | €13,080.38 |
