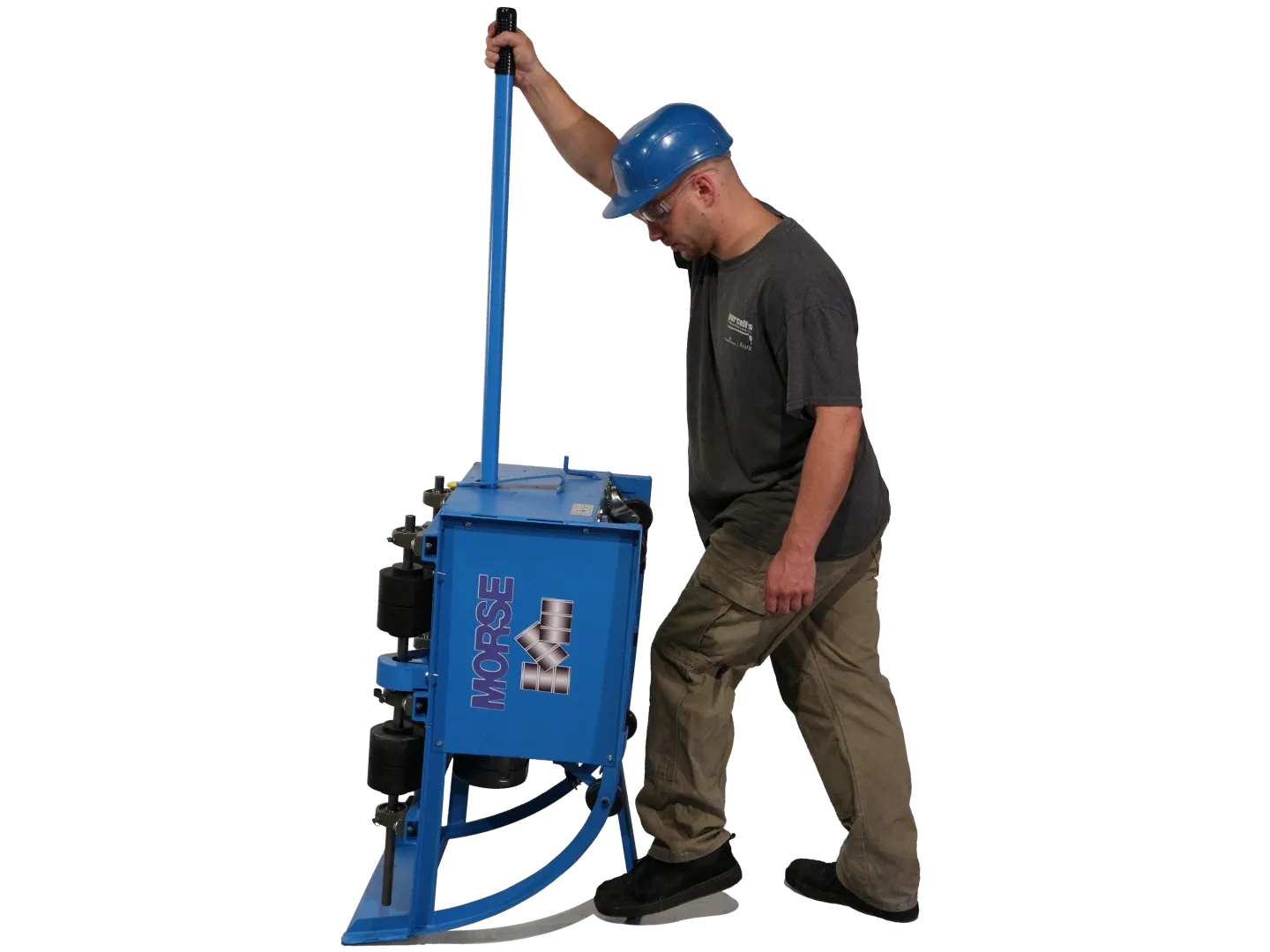

MORSE DRUM 201VS-3 Portable Drum Roller, Variable 3 Phase
208-230/460V AC
2.5-2.0 / 1.0A
15-24 RPM
Get it by Tuesday, Mar 31
€2,676.71 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Portable Drum Roller |
| Amps Drawn | 0.8A |
| Capacity Dry | 300 lbs. |
| Capacity Liquids | 500 lbs. |
| Drum Dia. | 6" to 28" |
| Drum Height | 0" to 40" |
| Drum Material | Plastic, Steel |
| Drum Material | Steel, Plastic |
| Drum Rpm | 15 RPM to 24 RPM, RPM Is Based On 22.5" (57.15 cm) Diameter Drum , 15-24 RPM |
| Drum Size | 0 gal. to 55 gal. |
| Dryload Capacity | 300 lbs. |
| Explosion Proof | No |
| Frequency | 60 Hz |
| Hp | 1/2 hp |
| Liquid Capacity | 500 lbs. |
| Loaded Height | 40" |
| Max. Operating Temp. | 140 Deg. F |
| Max. Operating Temp. | 140°F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Overall Depth | 34 3/4" |
| Overall Height | 19 1/4" |
| Phase | 3 |
| Product Datasheet | morse-drum-201vs-e3-50.pdf |
| Speed Type | Variable |
| Style | TEFC |
| Tilt Style | Tipping Lever |
| Type | Portable |
| Voltage | 460V |
| Wheel Configuration | Two Swivel Casters And Two Axle Mounted-Wheels |
| Wheel Material | Polyolefin |
| Wheels | Neoprene |
Shipping Info:
| Ship weight (kg) | 92.25 |
| Ship height (cm) | 66.04 |
| Ship length (cm) | 91.44 |
| Ship width (cm) | 60.96 |
| HS code | 8479820080 |
| Country of Origin | US |
Product Details:
- Controls not included
Documentation:
Product Variants
| Model | Capacity Dry | Capacity Liquids | Drum Dia. | Phase | Motor Enclosure Design | Drum Height | Speed Type | Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 201/20-1 | 300 lbs. | 500 lbs. | 6" to 28" | 1 | Totally Enclosed Fan Cooled | 0" to 40" | Fixed | 115V | €3,948.36 | |
| 201/20-1-50 | 300 lbs. | 500 lbs. | 6" to 28" | 1 | Totally Enclosed Fan Cooled | 0" to 40" | Fixed | 220V | €2,382.19 | |
| 201/20-3 | 300 lbs. | 500 lbs. | 6" to 28" | 3 | Totally Enclosed Fan Cooled | 0" to 40" | Fixed | 460V | €2,226.26 | |
| 201/20-3-50 | 300 lbs. | 500 lbs. | 6" to 28" | 3 | Totally Enclosed Fan Cooled | 0" to 40" | Fixed | 400V | €2,555.44 | |
| 201/20-575 | 300 lbs. | 500 lbs. | 6" to 28" | 3 | Totally Enclosed Fan Cooled | 0" to 40" | Fixed | 575V | €2,234.93 | |
| 201/20-A | 300 lbs. | 500 lbs. | 6" to 28" | - | - | 0" to 40" | Fixed | - | €2,269.58 | |
| 201/20-E1 | 300 lbs. | 500 lbs. | 6" to 28" | 1 | Explosion Proof | 0" to 40" | - | 230V | €2,858.63 |
