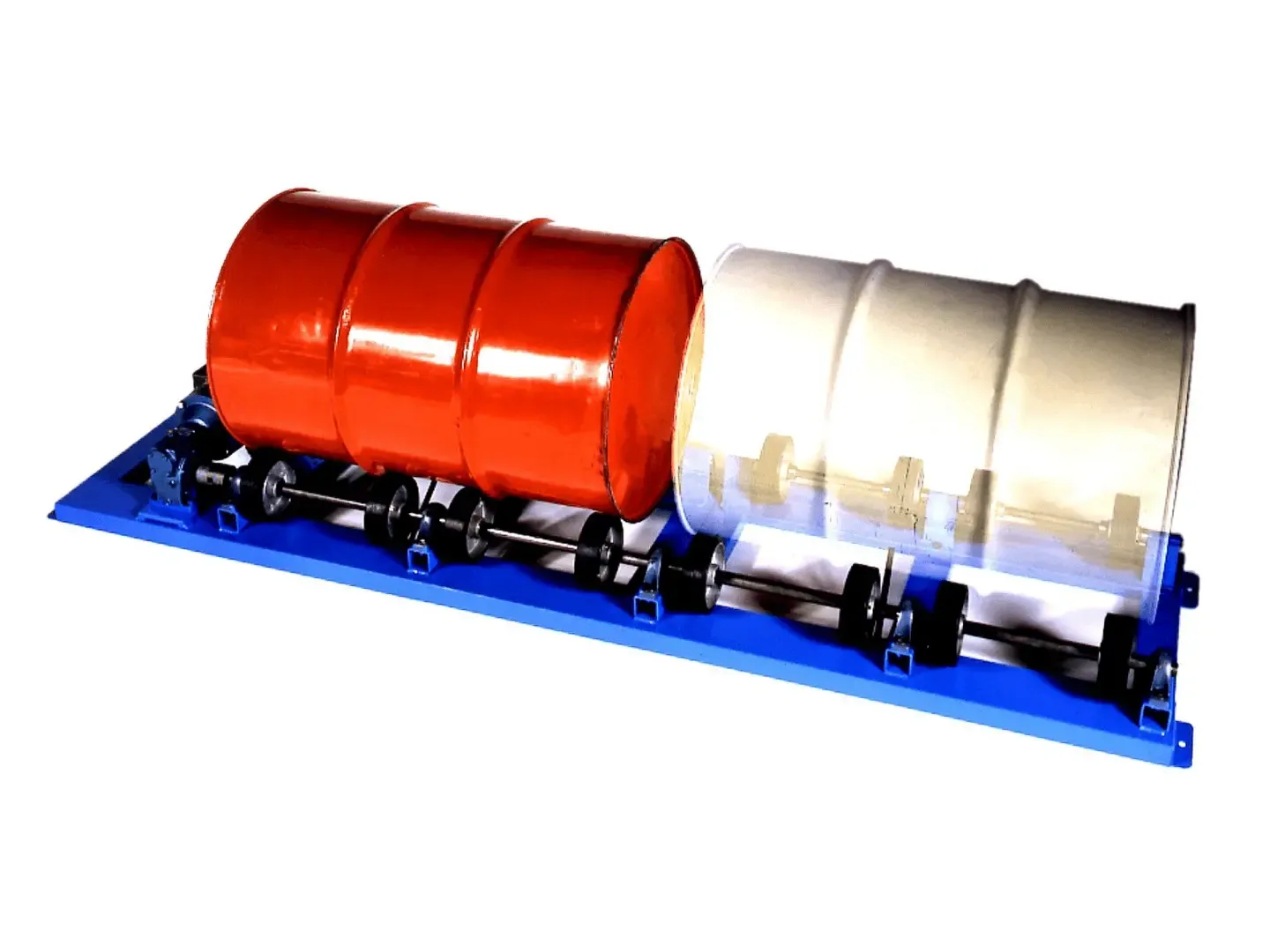

MORSE DRUM 2-5154-E3 Double Stationary Drum Roller, 20 Rpm, 1 Hp, Explosion Proof Motor
Get it by Tuesday, Mar 31
€5,084.89 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Stationary Drum Roller |
| Amps | 1.5/3/3.1A |
| Amps Drawn | 1.5A |
| Base Dimension | 24" x 97" |
| Capacity Dry | 300 lbs. |
| Capacity Liquids | 1000 lbs. |
| Drum Dia. | 6" to 28" |
| Drum Height | 0" to 40" |
| Drum Material | Steel, Plastic |
| Drum Material | Plastic, Steel |
| Drum Rpm | 20 RPM , 20 RPM, RPM Is Based On 22.5" (57.15 cm) Diameter Drum |
| Dryload Capacity | 300 lbs. |
| Explosion Proof | Yes |
| Frequency | 60 Hz |
| Hp | 1 hp |
| Liquid Capacity | 1000 lbs. |
| Max. Operating Temp. | 140 Deg. F |
| Motor Enclosure Design | Explosion Proof |
| No. Of Wheels | 8 |
| Phase | 3 |
| Product Datasheet | morse-drum-cp-2-5154-1-230.pdf |
| Rated For | Class I Group D, Class II Groups F and G. |
| Rated For | Class I Group D, Class II Groups F And G |
| Shaft Dia. | 1" |
| Speed Type | Fixed |
| Strap Material | Spring Steel |
| Style | Explosion Proof |
| Type | Stationary |
| Voltage | 460V |
| Wheel Dia. | 6" |
| Wheel Material | Neoprene |
Shipping Info:
| Ship weight (kg) | 202.5 |
| Ship height (cm) | 53.34 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 101.6 |
| HS code | 8479820080 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Phase | Motor Enclosure Design | Speed Type | Voltage | Amps | Motor Type | Capacity Dry | Capacity Liquids | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2-5154-1 | 1 | Totally Enclosed Fan Cooled | Fixed | 230V | 6.4/7/12.8A | - | 300 lbs. | 1000 lbs. | €4,062.71 | |
| 2-5154-3 | 3 | - | Variable | 460V | 1.4/2.8A | Inverter Duty | 300 lbs. | 1000 lbs. | €3,720.55 | |
| 2-5154-E1 | 1 | Explosion Proof | Fixed | 230V | 6.5/13A | - | 300 lbs. | 1000 lbs. | €4,721.06 | |
| 2-5154-E1-50 | 1 | Explosion Proof | Fixed | 220V | 6.2A | - | 300 lbs. | 1000 lbs. | €5,084.89 | |
| 2-5154-E3-50 | 3 | Explosion Proof | Fixed | 400V | 2/3.5A | - | 300 lbs. | 1000 lbs. | €5,024.25 | |
| 2-5154-E3-575 | 3 | Explosion Proof | Fixed | 575V | 1.2A | - | 300 lbs. | 1000 lbs. | €5,275.46 | |
| 2-5154-A | - | - | Air Controlled | - | - | Air Motor | 300 lbs. | 1000 lbs. | €4,201.31 |
