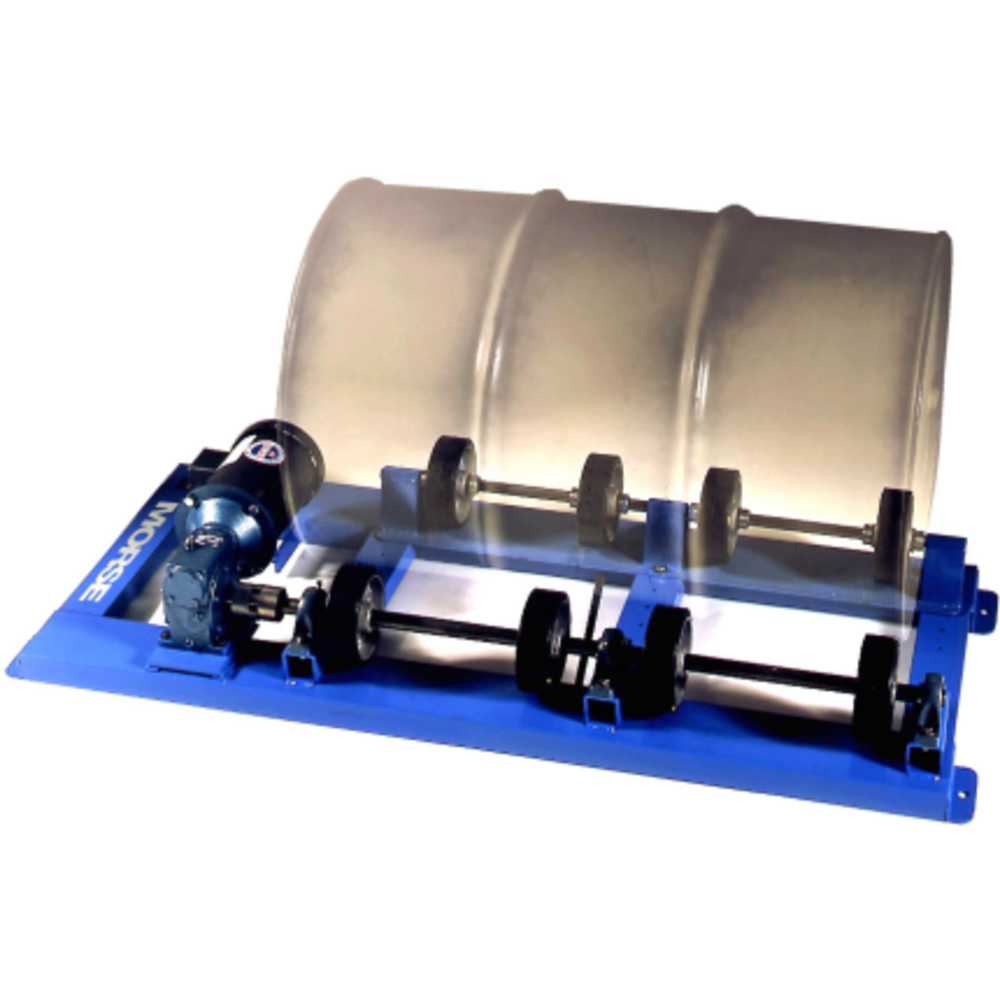

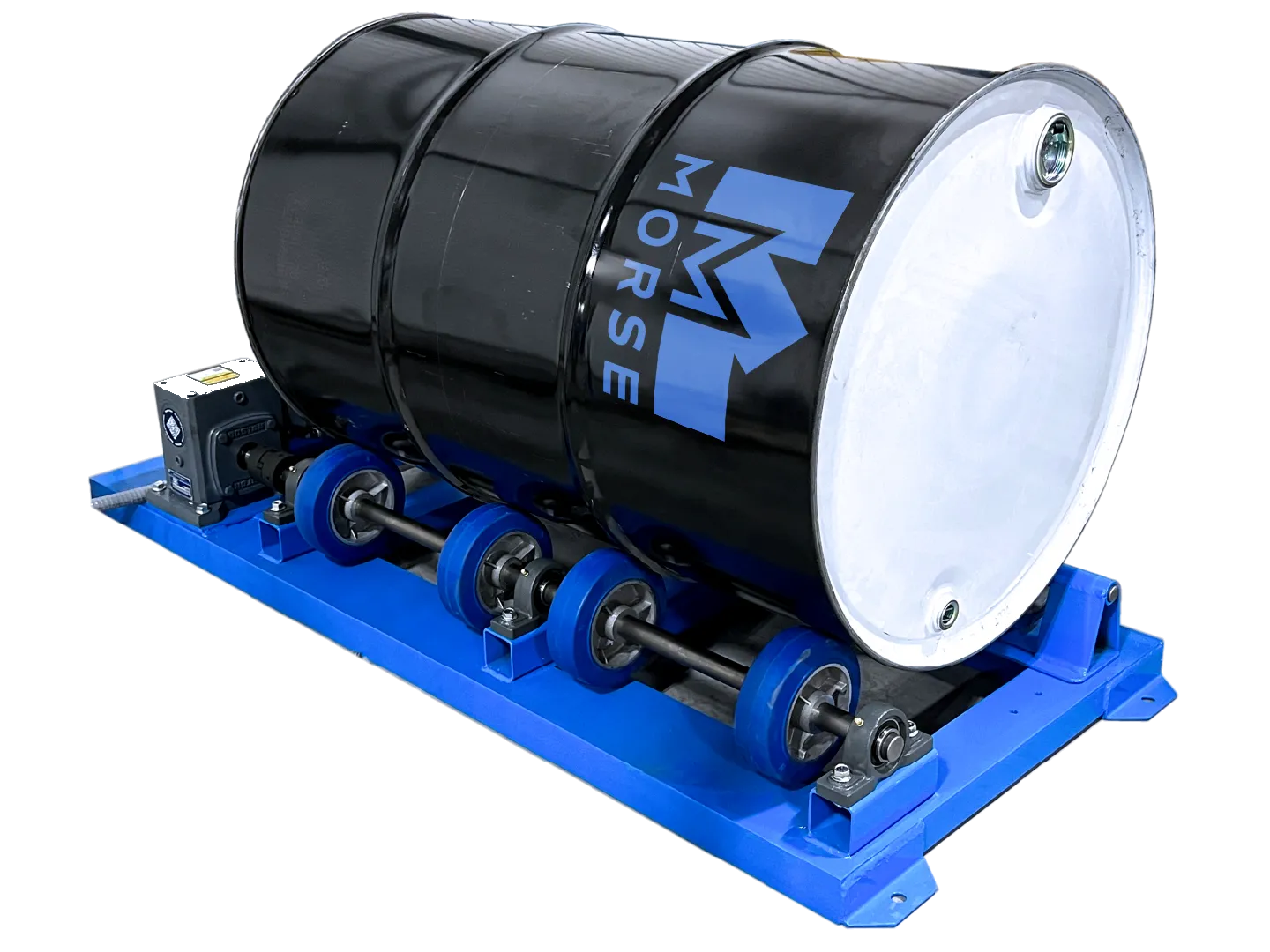

MORSE DRUM 1-5154-E1 Single Stationary Drum Roller, 20 Rpm, 1/2 Hp, Explosion Proof Motor
Get it by Tuesday, Mar 31
€3,187.80 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Stationary Drum Roller |
| Amps | 3.7/3.9/7.4A |
| Amps Drawn | 3.7A |
| Base Dimension | 24" x 58" |
| Capacity Dry | 300 lbs. |
| Capacity Liquids | 1000 lbs. |
| Drum Dia. | 6" to 28" |
| Drum Height | 0" to 40" |
| Drum Material | Steel, Plastic |
| Drum Material | Plastic, Steel |
| Drum Rpm | 20 RPM , 20 RPM, RPM Is Based On 22.5" (57.15 cm) Diameter Drum |
| Dryload Capacity | 300 lbs. |
| Explosion Proof | Yes |
| Frequency | 60 Hz |
| Hp | 1/2 hp |
| Liquid Capacity | 1000 lbs. |
| Material | Steel |
| Max. Operating Temp. | 140 Deg. F |
| Max. Operating Temp. | 140°F |
| Motor Enclosure Design | Explosion Proof |
| No. Of Wheels | 8 |
| Phase | 1 |
| Product Datasheet | morse-drum-5999-p.pdf |
| Rated For | Class I Group D, Class II Groups F and G. |
| Rated For | Class I Group D, Class II Groups F And G |
| Shaft Dia. | 1" |
| Speed Type | Fixed |
| Strap Material | Spring Steel |
| Style | Explosion Proof |
| Type | Stationary |
| Voltage | 230V |
| Wheel Dia. | 6" |
| Wheel Material | Neoprene |
Shipping Info:
| Ship weight (kg) | 137.25 |
| Ship height (cm) | 50.8 |
| Ship length (cm) | 160.02 |
| Ship width (cm) | 101.6 |
| HS code | 8479820080 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Phase | Motor Enclosure Design | Material | Speed Type | Voltage | Amps | Motor Type | Capacity Dry | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 1-5154-1 | 1 | Totally Enclosed Fan Cooled | Steel | Fixed | 230V | 3.7/4.3/7.4A | - | 300 lbs. | €2,590.09 | |
| 1-5154-3 | 3 | - | Steel | Variable | 460V | 0.8/1.6A | Inverter Duty | 300 lbs. | €2,616.08 | |
| 1-5154-E1-50 | 1 | Explosion Proof | Steel | Fixed | 220V | 3.6A | - | 300 lbs. | €3,685.90 | |
| 1-5154-E3 | 3 | Explosion Proof | Steel | Fixed | 460V | 1/2/2.1A | - | 300 lbs. | €3,127.16 | |
| 1-5154-E3-50 | 3 | Explosion Proof | Steel | Fixed | 400V | 1/1.7A | - | 300 lbs. | €3,633.92 | |
| 1-5154-E3-575 | 3 | Explosion Proof | Steel | Fixed | 575V | 0.7A | - | 300 lbs. | €3,044.87 | |
| 1-5154-A | - | - | Steel | - | - | - | Air Motor | 300 lbs. | €2,919.26 |
