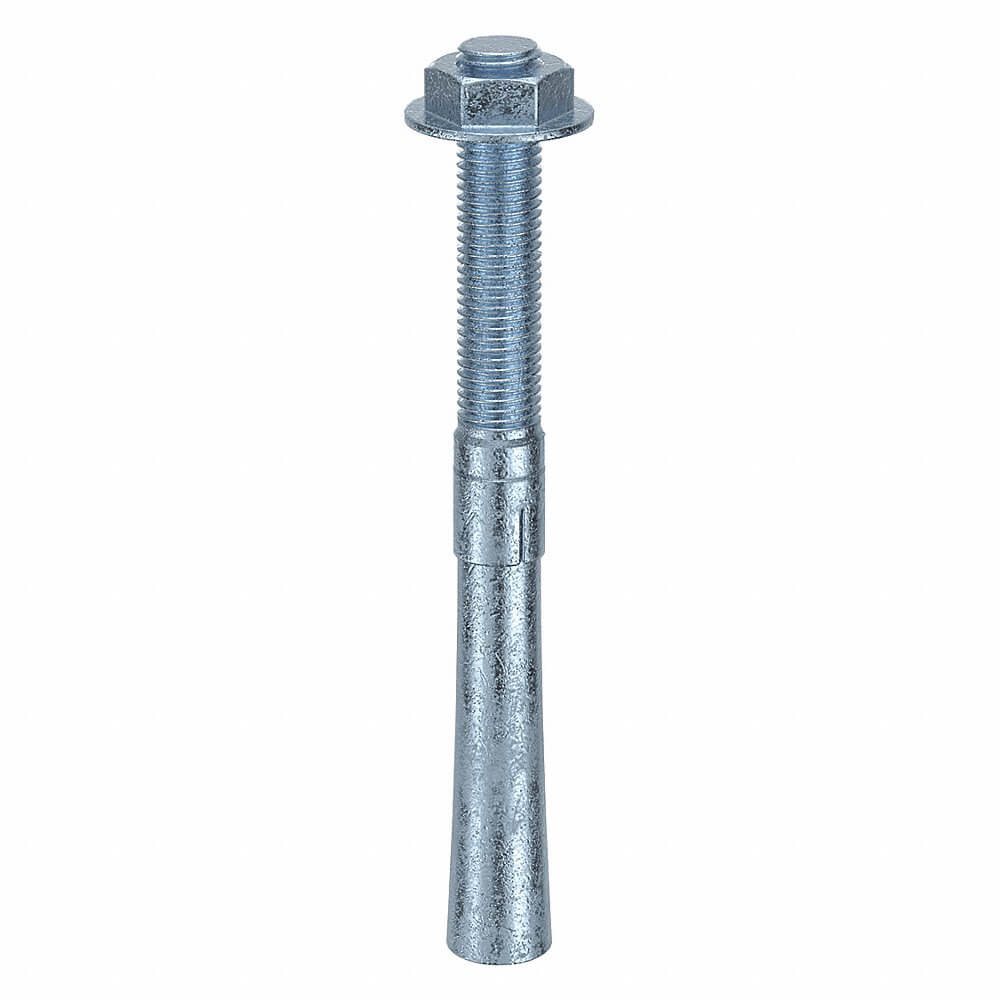

MKT FASTENING 2678100 Wedge Anchor, 7/8 In - 9 Thread Size, 10 In Anchor Lg., 4 In Thread Lg., 7/8 In Anchor Dia., 2 In Max. Work Thk.
Item: AB6KKXModel: 2678100Cross Ref: 21U906
7 In Stock
Ships within 2 days via
13.00% off
€84.50 /pkg. of 4
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Wedge Anchor |
| Anchor Length | 10" |
| Compatible Material | Concrete |
| Display Qty | 4 |
| Drill Bit Size | 7/8" |
| Finish | Zinc Plated |
| Grade | Grade 2 |
| Icc Approved For Cracked Concrete | No |
| Icc Approved For Un-cracked Concrete | Yes |
| Included | Nut And Washer |
| Industry Standards | Icc Esr-3782 C-Stl, Zp 1/4" Ss, Rohs Compliant Except For Grade 5 |
| Material | Steel |
| Material Grade/class | Grade 2 |
| Max. Installation Torque | 225 lbs.-ft. |
| Max. Material Thickness | 5 1/8" |
| Max. Ultimate Shear Strength | 21574 lbs. |
| Max. Ultimate Tension Strength | 20288 lbs. |
| Max. Work Thickness | 2" |
| Min. Embedment | 4" |
| Min. Installation Depth | 4" |
| Min. Installation Torque | 125 lbs.-ft. |
| Min. Material Thickness | 6" |
| Nut Width | 1.3125" |
| Overall Length | 10" |
| Seismic Approved | No |
| System Of Measurement | Imperial |
| Thread Length | 4" |
| Thread Size | 7/8"-9 |
| Ultimate Pullout (lb.) | 20288 |
| Ultimate Shear | 21574 lbs. |
| Ultimate Shear Strength 4000 Psi Concrete | 21574 lbs. |
| Ultimate Tension | 20288 lbs. |
| Ultimate Tension Strength 3000 Psi Concrete | 14378 lbs. |
| Ultimate Tension Strength 4000 Psi Concrete | 20288 lbs. |
| Washer Outside Dia. | 1.75" |
| Wedge Anchor Type | Standard |
Shipping Info:
| Ship weight (kg) | 3.31 |
| Ship height (cm) | 8.38 |
| Ship length (cm) | 27.43 |
| Ship width (cm) | 13.21 |
| HS code | 7316000000 |
| Country of Origin | US |
Product Variants
| Product | Model | Anchor Dia. | Anchor Length | Finish | Thread Length | Max. Work Thickness | Min. Installation Depth | Drill Bit Size | Material Grade/class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2614134 | 1/4" | 1 3/4" | Zinc Plated | 7/8" | 5/8" | 1 1/8" | 1/4" | Grade 2 | 20 | €18.19 | |
 |
2614214 | 1/4" | 2 1/4" | Zinc Plated | 1 3/8" | 1 1/8" | 1 1/8" | 1/4" | Grade 2 | 20 | €20.13 | |
 |
2638214 | 3/8" | 2 1/4" | Zinc Plated | 1 3/16" | 5/8" | 1 5/8" | 3/8" | Grade 2 | 20 | €21.36 | |
 |
2638234 | 3/8" | 2 3/4" | Zinc Plated | 1 5/8" | 1 1/8" | 1 5/8" | 3/8" | Grade 2 | 20 | €25.37 | |
 |
2638300 | 3/8" | 3" | Zinc Plated | 1 7/8" | 1 3/8" | 1 5/8" | 3/8" | Grade 2 | 20 | €29.13 | |
 |
2638334 | 3/8" | 3 3/4" | Zinc Plated | 2 5/8" | 2 1/8" | 1 5/8" | 3/8" | Grade 2 | 20 | €31.26 | |
 |
2638500 | 3/8" | 5" | Zinc Plated | 4" | 3 3/8" | 1 5/8" | 3/8" | Grade 2 | 20 | €42.37 |
