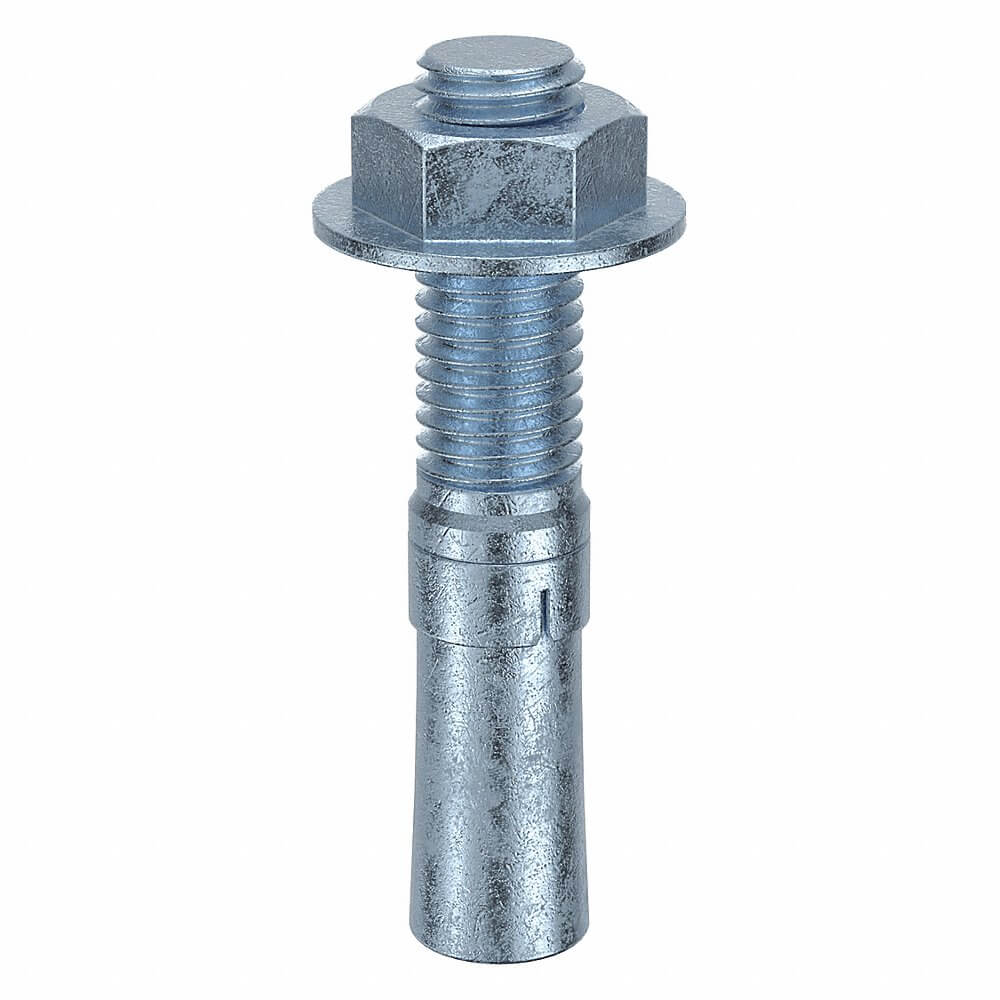

MKT FASTENING 2658312 Wedge Anchor, 5/8 In - 11 Thread Size, 3 1/2 In Anchor Lg., 1 5/8 In Thread Lg., Gr. 2, 3/4 In Max. Work Thk.
Item: AB6KKEModel: 2658312Cross Ref: 21U889
7 In Stock
Ships within 2 days via
10.00% off
€19.59 /pkg. of 5
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Wedge Anchor |
| Anchor Dia. | 5/8" |
| Anchor Diameter | 5/8" |
| Anchor Length | 3 1/2" |
| Compatible Material | Concrete |
| Display Qty | 5 |
| Drill Bit Size | 5/8" |
| Finish | Zinc Plated |
| Grade | Grade 2 |
| Icc Approved For Cracked Concrete | No |
| Icc Approved For Un-cracked Concrete | Yes |
| Includes | Nut And Washer |
| Industry Standards | Fm Approved, Icc Esr-3782 C-Stl, Zp 1/4" Ss, Rohs Compliant Except For Grade 5, Ul Listed |
| Material | Steel |
| Material Grade/class | Grade 2 |
| Max. Work Thickness | 3/4" |
| Maximum Installation Torque | 75 lbs.-ft. |
| Maximum Material Thickness | 1/8" |
| Maximum Ultimate Shear Strength | 9659 lbs. |
| Maximum Ultimate Tension Strength | 5556 lbs. |
| Min. Embedment | 2 3/4" |
| Minimum Installation Depth | 2 3/4" |
| Minimum Installation Torque | 40 lbs.-ft. |
| Minimum Material Thickness | 4" |
| Nut Width | 0.9375" |
| Overall Length | 3 1/2" |
| Seismic Approved | No |
| System Of Measurement | Imperial |
| Thread Length | 1 5/8" |
| Thread Size | 5/8"-11 |
| Ultimate Pullout (lb.) | 5556 |
| Ultimate Shear | 9659 lbs. |
| Ultimate Shear Strength (4,000 Psi Concrete) | 9659 lbs. |
| Ultimate Tension | 5556 lbs. |
| Ultimate Tension In 3000 Psi Concrete | 5486 lbs. |
| Ultimate Tension In 4000 Psi Concrete | 5556 lbs. |
| Washer Outside Diameter | 1.312" |
| Wedge Anchor Type | Standard |
Shipping Info:
| Ship weight (kg) | 0.77 |
| Ship height (cm) | 2.79 |
| Ship length (cm) | 12.19 |
| Ship width (cm) | 10.67 |
| HS code | 7316000000 |
| Country of Origin | US |
