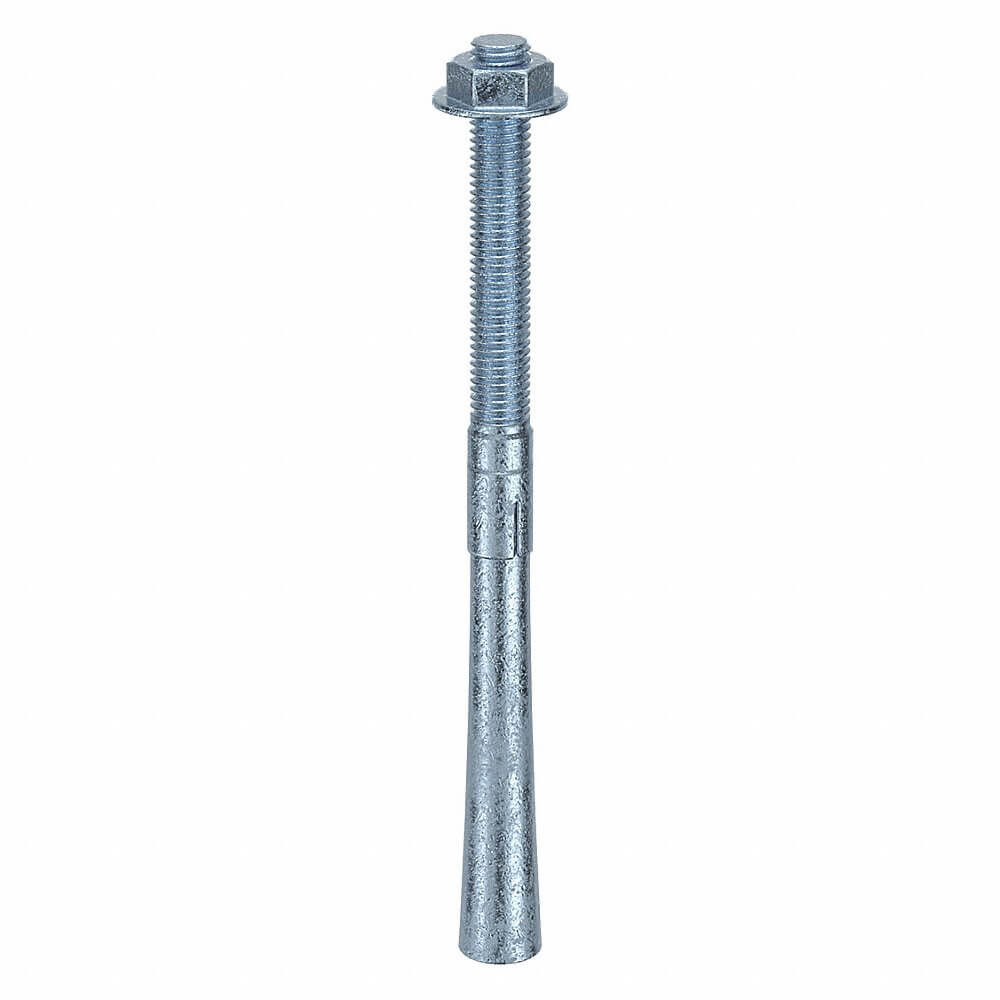

MKT FASTENING 2658100 Wedge Anchor, 5/8 In - 11 Thread Size, 10 In Anchor Lg., 4 In Thread Lg., 5/8 In Anchor Dia.
Item: AB6KKKModel: 2658100Cross Ref: 21U894
7 In Stock
Ships within 2 days via
13.00% off
€95.58 /pkg. of 10
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Wedge Anchor |
| Anchor Length | 10" |
| Compatible Material | Concrete |
| Display Qty | 10 |
| Drill Bit Size | 5/8" |
| Finish | Zinc Plated |
| Grade | Grade 2 |
| Icc Approved For Cracked Concrete | No |
| Icc Approved For Un-cracked Concrete | Yes |
| Included | Nut And Washer |
| Industry Standards | Fm Approved, Icc Esr-3782 C-Stl, Zp 1/4" Ss, Rohs Compliant Except For Grade 5, Ul Listed |
| Material | Steel |
| Material Grade/class | Grade 2 |
| Max. Installation Torque | 75 lbs.-ft. |
| Max. Material Thickness | 6 5/8" |
| Max. Ultimate Shear Strength | 9659 lbs. |
| Max. Ultimate Tension Strength | 9294 lbs. |
| Max. Work Thickness | 4 3/8" |
| Min. Embedment | 2 3/4" |
| Min. Installation Depth | 2 3/4" |
| Min. Installation Torque | 40 lbs.-ft. |
| Min. Material Thickness | 4" |
| Nut Width | 0.9375" |
| Overall Length | 10" |
| Seismic Approved | No |
| System Of Measurement | Imperial |
| Thread Length | 4" |
| Thread Size | 5/8"-11 |
| Ultimate Pullout (lb.) | 9294 |
| Ultimate Shear | 9659 lbs. |
| Ultimate Shear Strength 4000 Psi Concrete | 9659 lbs. |
| Ultimate Tension | 9294 lbs. |
| Ultimate Tension Strength 3000 Psi Concrete | 6957 lbs. |
| Ultimate Tension Strength 4000 Psi Concrete | 9294 lbs. |
| Washer Outside Dia. | 1.312" |
| Wedge Anchor Type | Standard |
Shipping Info:
| Ship weight (kg) | 4.05 |
| Ship height (cm) | 8.13 |
| Ship length (cm) | 38.86 |
| Ship width (cm) | 13.46 |
| HS code | 7316000000 |
| Country of Origin | US |
Product Variants
| Product | Model | Anchor Dia. | Anchor Length | Finish | Thread Length | Max. Work Thickness | Min. Installation Depth | Drill Bit Size | Material Grade/class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2614134 | 1/4" | 1 3/4" | Zinc Plated | 7/8" | 5/8" | 1 1/8" | 1/4" | Grade 2 | 20 | €14.13 | |
 |
2614214 | 1/4" | 2 1/4" | Zinc Plated | 1 3/8" | 1 1/8" | 1 1/8" | 1/4" | Grade 2 | 20 | €15.68 | |
 |
2638214 | 3/8" | 2 1/4" | Zinc Plated | 1 3/16" | 5/8" | 1 5/8" | 3/8" | Grade 2 | 20 | €18.54 | |
 |
2638234 | 3/8" | 2 3/4" | Zinc Plated | 1 5/8" | 1 1/8" | 1 5/8" | 3/8" | Grade 2 | 20 | €19.85 | |
 |
2638300 | 3/8" | 3" | Zinc Plated | 1 7/8" | 1 3/8" | 1 5/8" | 3/8" | Grade 2 | 20 | €22.86 | |
 |
2638334 | 3/8" | 3 3/4" | Zinc Plated | 2 5/8" | 2 1/8" | 1 5/8" | 3/8" | Grade 2 | 20 | €24.56 | |
 |
2638500 | 3/8" | 5" | Zinc Plated | 4" | 3 3/8" | 1 5/8" | 3/8" | Grade 2 | 20 | €33.94 |
