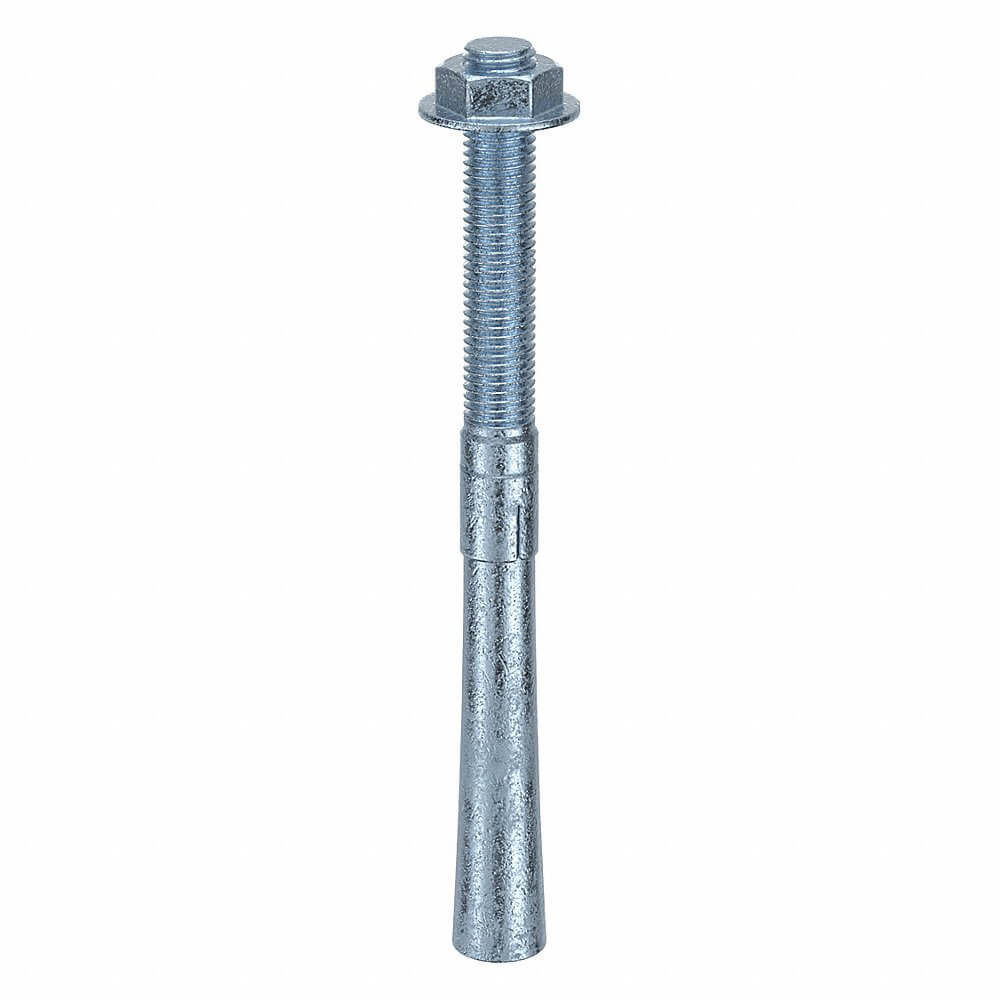

MKT FASTENING 2634100 Wedge Anchor, 3/4 In - 10 Thread Size, 10 In Anchor Lg., 4 In Thread Lg., 3/4 In Anchor Dia., 3 1/4 In Max. Work Thk.
Get it by Monday, Apr 13
€ 24,99 Flat Shipping + VAT € 24,99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.
5.00% off
€129.08 /pkg. of 10
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Wedge Anchor |
| Anchor Dia. | 3/4" |
| Anchor Diameter | 3/4" |
| Anchor Length | 10" |
| Compatible Material | Concrete |
| Display Qty | 10 |
| Drill Bit Size | 3/4" |
| Finish | Zinc Plated |
| Grade | Grade 2 |
| Icc Approved For Cracked Concrete | No |
| Icc Approved For Un-cracked Concrete | Yes |
| Includes | Nut And Washer |
| Industry Standards | Fm Approved, Icc Esr-3782 C-Stl, Zp 1/4" Ss, Rohs Compliant Except For Grade 5, Ul Listed |
| Material | Steel |
| Material Grade/class | Grade 2 |
| Max. Work Thickness | 3 1/4" |
| Maximum Installation Torque | 200 lbs.-ft. |
| Maximum Material Thickness | 5 7/8" |
| Maximum Ultimate Shear Strength | 15126 lbs. |
| Maximum Ultimate Tension Strength | 16201 lbs. |
| Min. Embedment | 3 3/8" |
| Minimum Installation Depth | 3 3/8" |
| Minimum Installation Torque | 100 lbs.-ft. |
| Minimum Material Thickness | 6" |
| Nut Width | 1.125" |
| Overall Length | 10" |
| Seismic Approved | No |
| System Of Measurement | Imperial |
| Thread Length | 4" |
| Thread Size | 3/4"-10 |
| Ultimate Pullout (lb.) | 16201 |
| Ultimate Shear | 15126 lbs. |
| Ultimate Shear Strength (4,000 Psi Concrete) | 15126 lbs. |
| Ultimate Tension | 16201 lbs. |
| Ultimate Tension In 3000 Psi Concrete | 13278 lbs. |
| Ultimate Tension In 4000 Psi Concrete | 16201 lbs. |
| Washer Outside Diameter | 1.469" |
| Wedge Anchor Type | Standard |
Shipping Info:
| Ship weight (kg) | 5.83 |
| Ship height (cm) | 7.87 |
| Ship length (cm) | 39.12 |
| Ship width (cm) | 13.72 |
| HS code | 7316000000 |
| Country of Origin | US |
