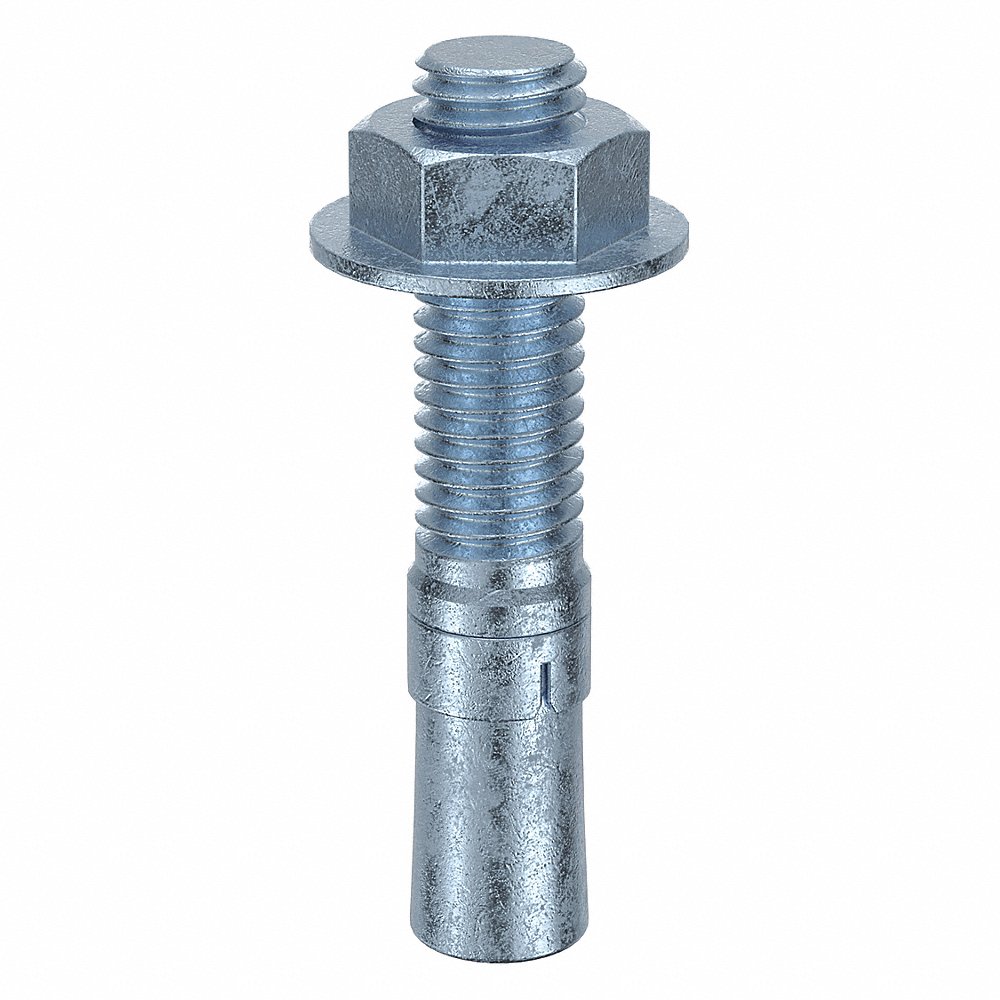

MKT FASTENING 2512234 Wedge Anchor, 1/2 In - 13 Thread Size, 2 3/4 In Anchor Lg., 1 1/2 In Thread Lg., Gr. 2, 1/8 In Max. Work Thk.
Item: AD8HKCModel: 2512234Cross Ref: 4KHU3
7 In Stock
Ships within 2 days via
10.00% off
€166.45 /pkg. of 50
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Wedge Anchor |
| Anchor Dia. | 1/2" |
| Anchor Diameter | 1/2" |
| Anchor Length | 2 3/4" |
| Compatible Material | Concrete |
| Display Qty | 50 |
| Drill Bit Size | 1/2" |
| Finish | Zinc Yellow |
| Grade | Grade 2 |
| Icc Approved For Cracked Concrete | No |
| Icc Approved For Un-cracked Concrete | Yes |
| Includes | Nut And Washer |
| Industry Standards | Fm Approved, Icc Esr-3782 C-Stl, Zp 1/4" Ss, Rohs Compliant Except For Grade 5, Ul Listed |
| Material | Steel |
| Material Grade/class | Grade 5 |
| Max. Work Thickness | 1/8" |
| Maximum Installation Torque | 50 lbs.-ft. |
| Maximum Material Thickness | 1 1/8" |
| Maximum Ultimate Shear Strength | 6828 lbs. |
| Maximum Ultimate Tension Strength | 5068 lbs. |
| Min. Embedment | 2 1/4" |
| Minimum Installation Depth | 2 1/4" |
| Minimum Installation Torque | 25 lbs.-ft. |
| Minimum Material Thickness | 4" |
| Overall Length | 2 3/4" |
| Seismic Approved | No |
| System Of Measurement | Imperial |
| Thread Length | 1 1/2" |
| Thread Size | 1/2"-13 |
| Ultimate Pullout (lb.) | 5068 |
| Ultimate Shear | 6828 lbs. |
| Ultimate Shear Strength (4,000 Psi Concrete) | 6828 lbs. |
| Ultimate Tension | 5068 lbs. |
| Ultimate Tension In 4000 Psi Concrete | 5068 lbs. |
| Washer Outside Diameter | 1.062" |
| Wedge Anchor Type | Standard |
Shipping Info:
| Ship weight (kg) | 4.09 |
| Ship height (cm) | 8.13 |
| Ship length (cm) | 26.42 |
| Ship width (cm) | 13.21 |
| HS code | 7316000000 |
| Country of Origin | US |
