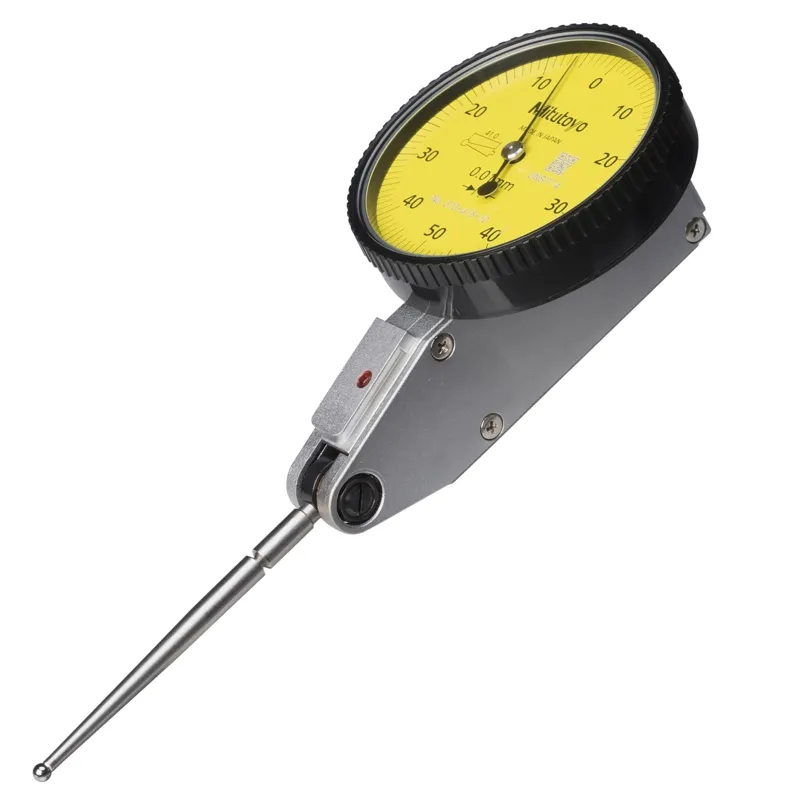

MITUTOYO 513-415-10A Dial Test Indicator, Horizontal Type, Plus Set, 1 mm, 0.01 mm, 4/8 mm Stem, 2 Styli
Get it by Monday, Aug 24
€208.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Dial Test Indicator |
| Carbide Stylus Tip Number | 136013 |
| Contact Point | Thread M 1.7 x 0.35 |
| Digital/analog | Analog |
| Graduation | 0.01 mm |
| H Mpe(hysteresis) | 4 µm |
| Inch-metric | Metric |
| Mpe Any 1/2 Revolution | 8 µm |
| Mpe Any 10 Scale Divisions | 5 µm |
| Mpe Measuring | 10 µm |
| Product Datasheet | mitutoyo-513-415-10a.pdf |
| R Mpe(repeatability) | 3 µm |
| Range | 1 mm |
Shipping Info:
| Ship weight (kg) | 0.05 |
Documentation:
Product Variants
| Product | Model | Range | Dial Reading | Dial Color | Dial Size | Contact Point Dia. | Stem Thread Size | Stylus Length | Range Per Revolution | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
513-404-10E | 0 mm to 0.8 mm | 0-40-0 | Yellow | 40 mm | 2 mm | M8 x 1 | 20.9 mm | - | €189.53 | |
 |
513-405-10T | 0 mm to 0.2 mm | 0-100-0 | Yellow | 40 mm | 2 mm | M6 | 14.7 mm | 0.2 mm | €298.54 | |
 |
513-403-10T | 0" to 0.008" | 0-4-0 | White | 40 mm | 1/32" | M6 | 0.61" | 0.008" | €284.79 | |
 |
513-412-10T | 0" to 0.03" | 0-15-0 | White | 40 mm | 1/32" | M6 | 1.2" | 0.03" | €292.11 | |
 |
513-406-10T | 0" to 0.7", 0 mm to 0.7 mm | 0-15-0, 0-35-0 | White, Yellow | 40 mm | 4 mm, 8 mm | M6 | 0.65" | 0.03" | €244.57 | |
 |
513-412-10E | 0" to 0.03" | 0-15-0 | White | 40 mm | 5/64" | M6 | 1.2" | 0.03" | €250.02 | |
 |
513-442-10A | 0" to 0.06" | 0-15-0 | White | 40 mm | 5/64" | M8 x 1 | 19.9 mm | 0.03" | €254.81 |
