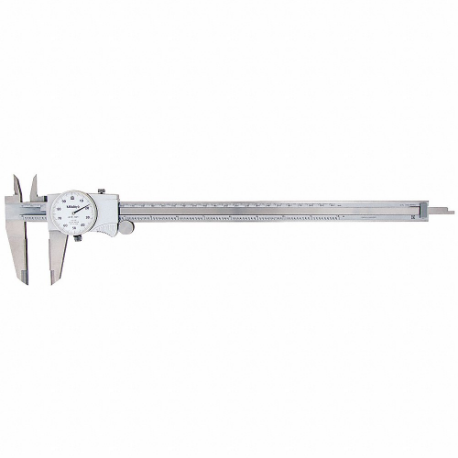

MITUTOYO 505-747 Inch Dial Caliperch to 12 Inch Range, +/-0.002 Inch Accuracy
Item: CT3QZDModel: 505-747Cross Ref: 39X377
7 In Stock
Ships within 2 days via
10.00% off
€524.13 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Dial Caliper |
| Accuracy | -0.002" to +0.002" |
| Caliper Material | Stainless Steel |
| Case Type | Case |
| Dial Color | White |
| Dial Graduation | 0.001" |
| Dimension Type | Inch |
| Includes Bezel Lock | Yes |
| Includes Case | Yes |
| Includes Locking Nut | Yes |
| Jaw Actuation Type | Slide |
| Jaw Depth | 64 mm |
| Jaw Depth Upper Jaw | 27.5 mm |
| Jaw Material | Carbide Tipped |
| Jaw Shape | Standard Blade Nibs For Inside/Outside Measurement |
| Long Form Calibration Certificate | No |
| Material | Stainless Steel |
| Max. Measurement | 12" |
| Maximum Measurement | 12" |
| Measurements | Four Way |
| Measures Depth | Yes |
| Measures Inside Dimension | Yes |
| Measures Outside Dimension | Yes |
| Measures Step | Yes |
| Min. Measurement | 0.0" |
| Minimum Measurement - Inch | 0" |
| Product Datasheet | mitutoyo-505-747.pdf |
| Range | 0" to 12" |
| Range Per Revolution | 0.1" |
Shipping Info:
| Ship weight (kg) | 0.45 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
Documentation:
Product Variants
| Product | Model | Dimension Type | Long Form Calibration Certificate | Jaw Material | Jaw Actuation Type | Range | Accuracy | Dial Graduation | Jaw Depth | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
505-731 | Metric | No | Stainless Steel | Thumb Wheel | 0 mm to 200 mm | -0.03 mm to +0.03 mm | 0.02 mm | 50 mm | €260.07 | |
 |
505-745 | Metric | No | Stainless Steel | Thumb Wheel | 0 mm to 300 mm | -0.04 mm to +0.04 mm | - | 64 mm | €406.90 | |
 |
505-742-51 | Inch | No | Stainless Steel | Thumb Wheel | 0" to 6" | -0.001" to +0.001" | 0.001" | 40 mm | €209.10 | |
 |
505-749 | Inch | No | Stainless Steel | Thumb Wheel | 0" to 12" | -0.002" to +0.002" | 0.001" | 64 mm | €457.02 | |
|
505-745CERT | Metric | Yes | Stainless Steel | Thumb Wheel | 0 mm to 300 mm | -0.04 mm to +0.04 mm | 0.02 mm | 64 mm | €504.20 | |
 |
505-675-52 | Inch | No | Stainless Steel | Thumb Wheel | 0" to 6" | -0.001" to +0.001" | 0.001" | 40 mm | €201.95 | |
 |
505-742-53 | Inch | No | Stainless Steel | Thumb Wheel | 0" to 6" | -0.001" to +0.001" | 0.001" | 40 mm | €199.85 |
