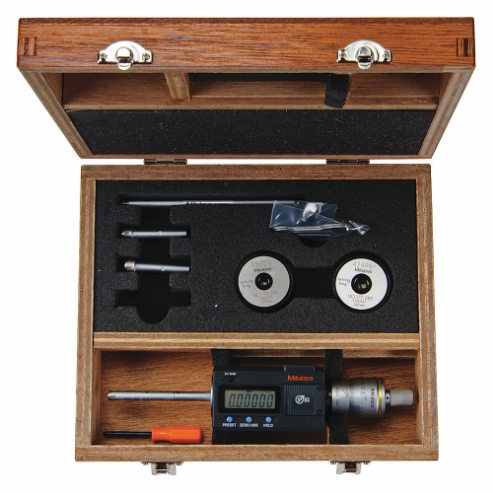

MITUTOYO 468-976 Digital 3-Point Inside Micrometer Set, 0.275 Inch To 0.5 In/6.92 mm To 12.7 mm Range, Ip65
Item: CT3RJLModel: 468-976Cross Ref: 54GF74
7 In Stock
Ships within 2 days via
13.00% off
€2,562.99 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Inside Micrometer Set |
| 2 X Preset | Yes |
| Abs/inc (inc Zero) | Yes |
| Accuracy | -0.0001" to +0.0001" |
| Auto Power Off After 20 Min. Non Use | Yes |
| Battery Life | Approx. 1.2 Years |
| Battery Size | SR44 |
| Case Included | Yes |
| Case Type | Plastic Case |
| Compatible Data Output Cable | MFR. No. 05CZA662, MFR. No. 05CZA663 |
| Contact Point Material | Tin Coated Steel |
| Coolant Resistant | No |
| Data Output | Yes |
| Data Output Type | Cable |
| Digital Step | 0,001 mm, 0,001 mm/0,00005" (models up to 4") / 0,001 mm/0,0001" (models over 5") , 0001 mm 0001 mm, 000005" (Models Up To 4"), 0001 mm, 00001" (Models Over 5") |
| Digital/analog | Digital |
| Display | LCD, Character Height 7.5 mm |
| Display Type | LCD |
| Function Lock | Yes |
| Functions | Counting Value Composition Error, Data Hold, Data Output, In./Mm Conversion, Low Voltage Alarm, Preset, Zero-Setting |
| Hold | Yes |
| Inch-metric | Inch/Metric |
| Included | Extension Rod, Setting Rings |
| Included Battery | Yes |
| Included Certification | Inspection Certificate |
| Included Ranges | 0.275" to 35", 0.35" to 0.425", 0.425" to 0.5" |
| Individual Ranges | 0.275-0.35", 0.35-0.425", 0.425-0.5" |
| Inside Micrometer Type | 3 Point Inside Micrometer |
| Ip Rating | IP65 |
| Low Voltage Alarm | Yes |
| Max. Measurement | 12.7 mm |
| Max. Measurement-inch | 1/2" |
| Max. Measuring Depth | 1/2" |
| Measuring Face | Titanium Coated Tungsten Carbide (6 mm to 12 Mm) Titanium Coated Hardened Steel (12 mm to 200 Mm) Taper Tungsten Carbide |
| Min. Measurement | 6.93 mm |
| Min. Measurement-inch | 0.275" |
| No. Of Micrometers | 3 |
| Operation Type | Digital |
| Power Supply | 1 Battery Sr-44 , 1 Battery SR44 |
| Product Datasheet | mitutoyo-468-976.pdf |
| Range | 0.275" to 0.5" |
| Resolution | 0.00005", 0.001 mm |
| Setting Rings Included | 0.35" (177-179), 0.425" (177-283) , 0.35" (177-179),0.425" (177-283) |
| Spc Output | Yes |
| Thimble Type | Ratchet Stop |
Shipping Info:
| Ship weight (kg) | 1.35 |
| Ship height (cm) | 4.06 |
| Ship length (cm) | 36.58 |
| Ship width (cm) | 25.4 |
| Country of Origin | JP |
Documentation:
Product Variants
| Product | Model | Range | Max. Measuring Depth | No. Of Micrometers | Accuracy | Resolution | Max. Measurement | Min. Measurement-inch | Min. Measurement | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
468-274 | 4" to 5" | 5" | 1 | -0.0002" to +0.0002" | 0.00005", 0.001 mm | 5" | 4" | 101.6 mm | €2,727.32 | |
 |

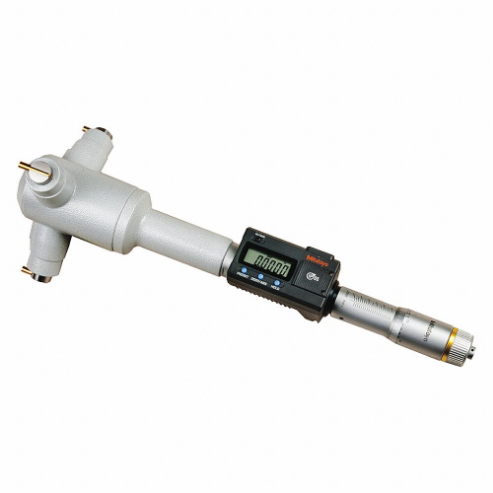

468-275 | 5" to 6" | 6" | 1 | -0.0002" to +0.0002" | 0.0001", 0.001 mm | 6" | 5" | 127 mm | €2,807.88 | |
 |
468-276 | 6" to 7" | 7" | 1 | -0.0002" to +0.0002" | 0.0001", 0.001 mm | 7" | 6" | 152.4 mm | €2,980.49 | |
 |

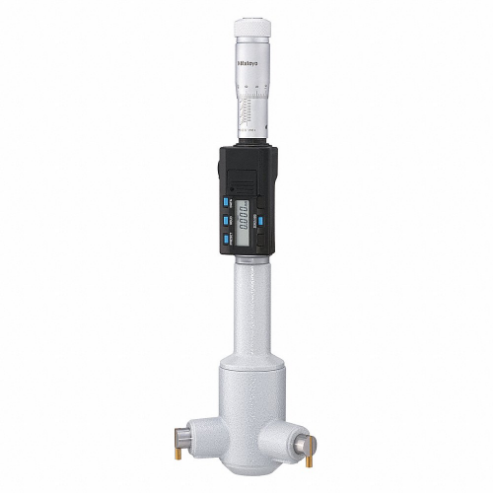

468-271 | 2.5" to 3" | 3" | 1 | -0.00015" to +0.00015" | 0.00005", 0.001 mm | 3" | 2 1/2" | 63.5 mm | €2,036.86 | |
 |

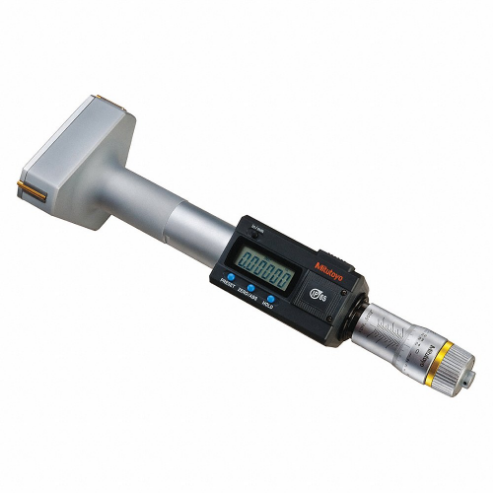

468-272 | 3" to 3.5" | 3 1/2" | 1 | -0.00015" to +0.00015" | 0.00005", 0.001 mm | 3 1/2" | 3" | 76.2 mm | €2,059.88 | |
 |

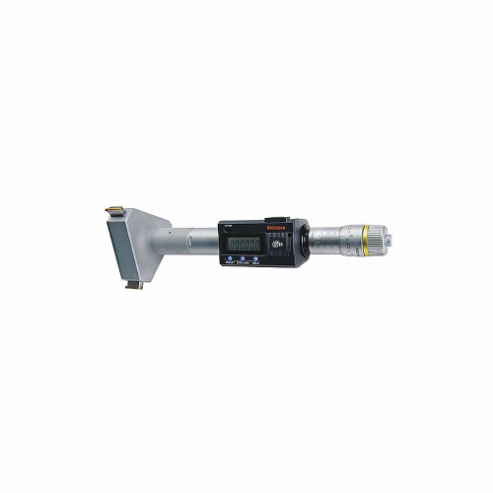

468-273 | 3.5" to 4" | 4" | 1 | -0.00015" to +0.00015" | 0.00005", 0.001 mm | 4" | 3 1/2" | 88.9 mm | €2,094.40 | |
 |

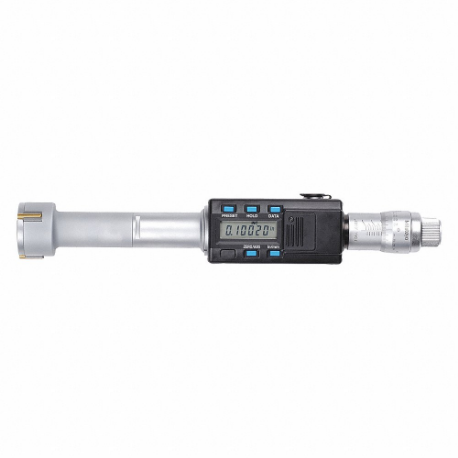

468-267 | 1" to 1.2" | 1 1/5" | 1 | -0.00015" to +0.00015" | 0.00005", 0.001 mm | 30.48 mm | 1" | 25.4 mm | €1,818.21 |
