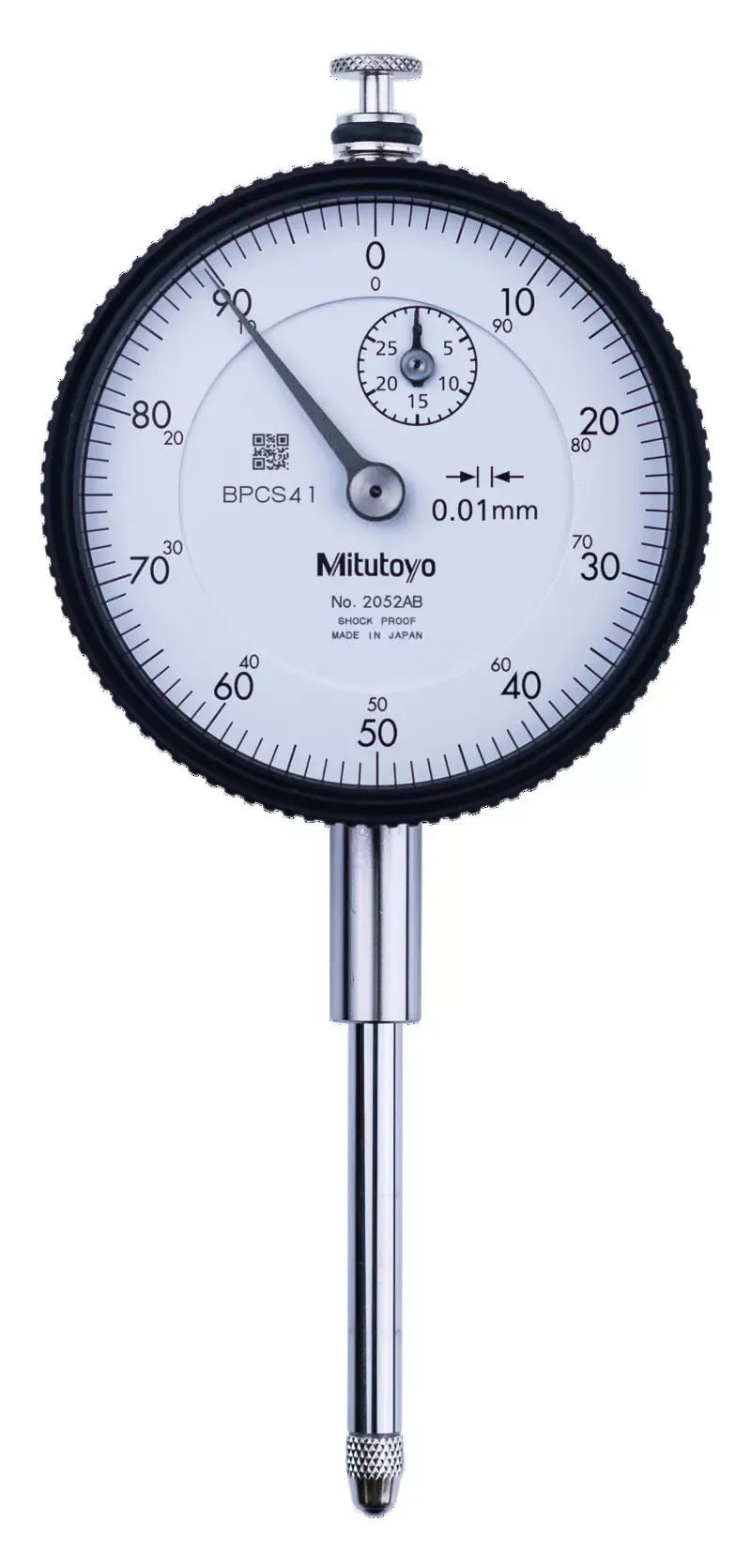

MITUTOYO 2052A Dial Gauge, Lug Back, ISO Type, 30 mm, 0.01 mm
Get it by Monday, Aug 24
€125.00 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Dial Gauge |
| Contact Point | Carbide Tipped, Thread M 2.5 x 0.45 mm |
| Continuous Dial | Yes |
| Cushioned End Point | Yes |
| Dial Reading | ±0-100 |
| Digital/analog | Analog |
| Graduation | 0.01 mm |
| H Mpe(hysteresis) | 5 µm |
| Inch-metric | Metric |
| Measuring Force | 0.4N to 2.5N |
| Mpe Any 1 Revolution | 12 µm |
| Mpe Any 1/10revolution | 7 µm |
| Mpe Any 1/2 Revolution | 11 µm |
| Mpe Measuring | 25 µm |
| Product Datasheet | mitutoyo-2052a.pdf |
| R Mpe(repeatability) | 3 µm |
| Range | 30 mm |
| Range Per Rev. | 1 mm |
| Stem | 8 mm |
| Type | EN ISO Standard |
Shipping Info:
| Ship weight (kg) | 0.15 |
Documentation:
Product Variants
| Product | Model | Dial Reading | Type | Range | Range Per Rev. | Bearing Type | Dial Color | Stem Dia. | Dial Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
2046A-60 | 0-100 | - | 0 mm to 10 mm | - | Plain | White | 8 mm | 57 mm | €255.94 | |
 |
2776AB | ±0-50 | ANSI, AGD Standard | 1" | 0.05" | - | - | - | - | €135.00 | |
 |
2922AB | 0-25-0 | ANSI, AGD Standard | 0.125" | 0.05" | - | - | - | - | €107.00 | |
 |
2914AB | 100-0 | ANSI, AGD Standard | 0.5" | 0.1" | - | - | - | - | €97.00 | |
 |
2977AB | 20-0-20 | ANSI, AGD Standard | 0.04" | 0.04" | - | - | - | - | €118.00 | |
 |
2416AB | ±0-100 | ANSI, AGD Standard | 1" | 0.1" | - | - | - | - | €89.00 | |
 |
2905AB-10 | 10-0 | ANSI, AGD Standard | 0.05" | 0.01" | - | - | - | - | €149.00 |
