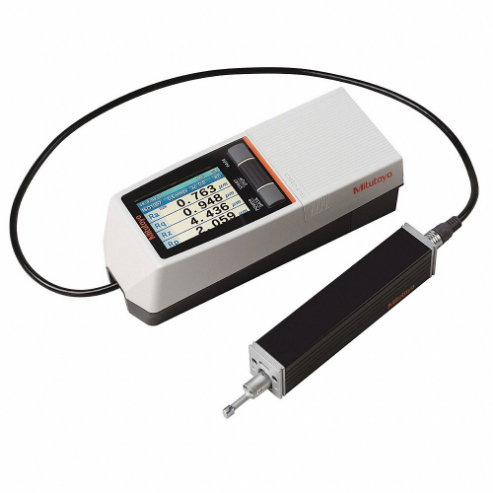

MITUTOYO 178-563-12A Portable Surface Roughness Tester With External Display, Marsurf Pocket Surf Iv
Item: CT3RMYModel: 178-563-12ACross Ref: 54GF33
7 In Stock
Ships within 2 days via
10.00% off
€3,624.78 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Surface Roughness Tester |
| Battery Included | No |
| Calibration Functions | Saves Last Inputted Nominal Value Of Specimen/Average Calibration With Multiple Measurement (Max.5 Times) Is Available |
| Case Type | Carrying Case |
| Compatible Data Output Cable | MFR. No. 12BAA303 |
| Data Output Connection Type | USB, Digimatic, Printer, RS232C, Foot |
| Data Output Type | Cabled |
| Detector Measuring Force | 4 mN |
| Digital Filter Type | Gaussian, 2CR75, PC75 |
| Dimensions (display Unit) | 6.3" x 2.05" x 2.6" |
| Dimensions (drive Unit) | 7.8" x 10.8" x 4.3" |
| Display Languages | Czech, Dutch, English, French, German, Hungarian, Italian, Japanese, Korean, Polish, Portuguese, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish |
| Display Size | 2 2/5" |
| Drive Unit | Retractable |
| Drive Unit Principle | Retractable |
| Features | Up To 10 Measurement Conditions And One Measured Profile Can Be Stored In The Internal Memory, Color Graphic Display, The Display Interface Supports 16 Languages, Which Can Be Freely Switched, Access To Each Feature Can Be Password-Protected, Which Prevents Unintended Operations And Allows You To Protect Your Settings, An Alarm Warns You When The Cumulative Measurement Distance Exceeds A Preset Limit |
| Green Environmental Attribute | Product Is Rechargeable |
| Includes Case | Yes |
| Includes Printer | No |
| Measurement Range | 0.69" |
| Measuring Condition Standards | JIS82, JIS94, JIS01, ISO97, ANSI, VDA |
| Measuring Range | 0.69" |
| Number Of Parameters Measured | 41 |
| Number Of Sampling Spans | 1, 2, 3, 4, 5, 6, 7, 8, 9, 10 |
| Operating Position | Any Position |
| Parameters Measured | A1A2ARHSCHTPMR1MR2 Possible Customizer CRARQR3ZRARCRKRKURLRRMAXRMRRMR(C)RPRPCRPKRPMRPPIRQRSKRSMRTRVRVKRXRYRZRZ1MAXRZJISSTPVO |
| Power Supply | Battery, AC Adapter |
| Probe Sensor Type | Differential Inductance |
| Probe Tip Radius | 5 µm |
| Profile | No |
| Profile Resolution | 360 µm, 0.02 µm, 100 µm, 0.006 µm, 25 µm, 0.002 µm |
| Sampling Range Arbitrary Length | 0.3 mm to 16 mm |
| Spc Output | Yes |
| Transverse Cutoff Length | 0.003", 0.01", 0.03", 0.1" |
Shipping Info:
| Ship weight (kg) | 2.35 |
| Ship height (cm) | 5.21 |
| Ship length (cm) | 16 |
| Ship width (cm) | 6.6 |
| Country of Origin | JP |
Product Variants
| Product | Model | Measuring Range | Drive Unit Principle | Detector Measuring Force | Probe Tip Radius | Number Of Sampling Spans | Data Output Type | Transverse Cutoff Length | Number Of Parameters Measured | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
178-561-02A | 14200µin. | - | - | - | - | - | - | - | €3,665.03 |
