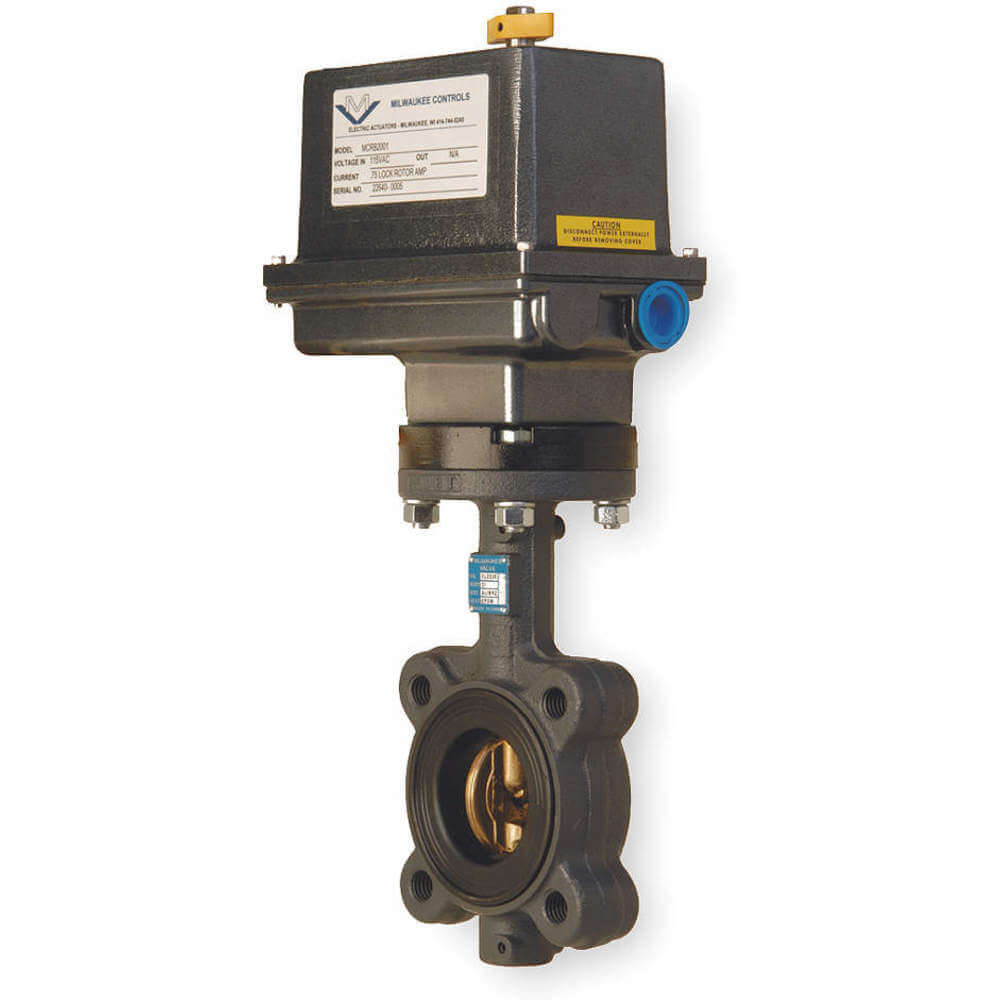

MILWAUKEE VALVE GLC23E 4 Butterfly Valve, For Gas/Oil/Water Media, Cast Iron, 115V AC Inch Pipe Size, Lug
Get it by Wednesday, Aug 19
€2,353.78 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Butterfly Valve |
| 3-a Certified | Not Rated |
| Average Surface Roughness (ra) | Not Rated |
| Body Material | Cast Iron |
| Bolt Circle Dia. | 7 1/2" |
| Bolt Holes | 8 |
| Connection | Flanged |
| Connection Type | Lug |
| Disc Alignment | Concentric |
| Disc Material | Bronze |
| Fail Safe Position | Fail Closed |
| Flow Coefficient | 860 |
| For Media | Gas, Oil, Water |
| Input Control Signal | 4-20 mA |
| Liner Material | EPDM |
| Lug Dia. | 5/8-11 |
| Lug Dia. | 5/8"-11 |
| Max. Pressure (cwp) | 150 psi |
| Max. Pressure-steam | Not Rated |
| Max. Water Pressure | 150 psi WOG |
| Media Temp. | -30°F to +250°F |
| Mounting | Direct |
| Mounting Type | Direct |
| Nema Enclosure Rating | 4 |
| No. Of Bolt Holes | 8 |
| Nsf Certifications For Food And Drinking Water | NSF 61 |
| O-ring Material | EPDM |
| Pipe Size | 4" |
| Seat Material | EPDM |
| Vacuum Service Rating | Not Rated |
| Valve Deactivated State | normally Closed (NC) |
| Voltage | 115V AC |
Shipping Info:
| Ship weight (kg) | 18.9 |
| Ship height (cm) | 43.18 |
| Ship length (cm) | 81.28 |
| Ship width (cm) | 39.37 |
| HS code | 8481809020 |
| Country of Origin | CN |
Product Variants
| Model | Disc Material | Seat Material | Max. Water Pressure | Connection | Mounting | Max. Pressure (cwp) | Liner Material | Media Temp. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| GLC23E 2 | Bronze | EPDM | 150 psi WOG | Flanged | Direct | 150 psi | EPDM | -30°F to +250°F | €1,790.16 | |
| GLC23E 2-1/2 | Bronze | EPDM | 150 psi WOG | Flanged | Direct | 150 psi | EPDM | -30°F to +250°F | €1,955.42 | |
| GLC23E 3 | Bronze | EPDM | 150 psi WOG | Flanged | Direct | 150 psi | EPDM | -30°F to +250°F | €1,822.20 | |
| GLC23E 5 | Bronze | EPDM | 150 psi WOG | Flanged | Direct | 150 psi | EPDM | -30°F to +250°F | €3,082.13 | |
| GLC23E 6 | Bronze | EPDM | 150 psi WOG | Flanged | Direct | 150 psi | EPDM | -30°F to +250°F | €3,814.92 | |
| GLC23E 8 | - | EPDM | 150 psi WOG | Flanged | Direct | - | - | - | €5,515.04 | |
| MBEOO - 1 | Stainless Steel | Viton | 175 psi WOG | NPT | Bracket | 175 psi | FKM | 0°F to 120°F | €1,005.08 |
