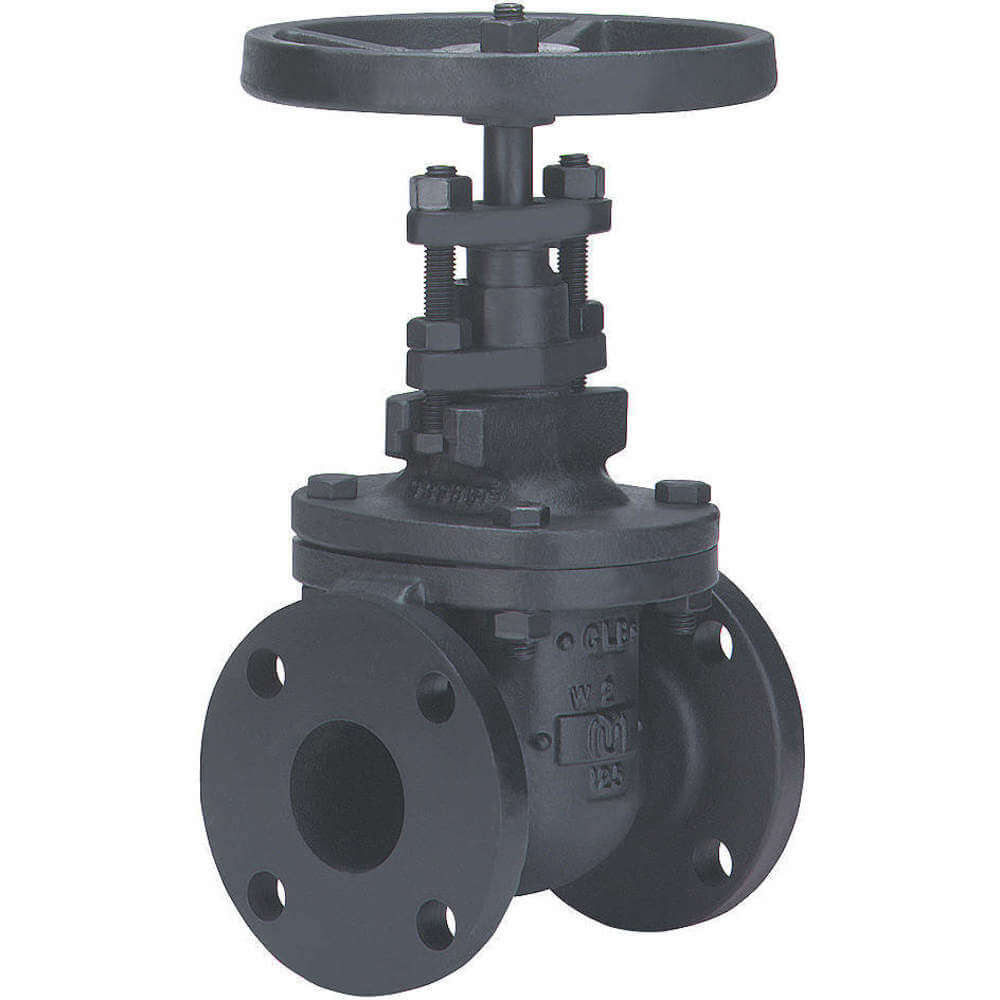

MILWAUKEE VALVE 2882-M26 4 Gate Valve, 4 Inch Nominal Valve Size, Cast Iron, Non-Rising, Class 125 Flange, Wheel
Get it by Wednesday, Dec 24
10.00% off
€1,472.54 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Gate Valve |
| Ansi Flange Class | Class 125 |
| Body Material | Cast Iron |
| Bonnet Material | Cast Iron |
| Bonnet Style | Bolted |
| Class | Class 125 |
| Coefficient Of Volume (cv) | 945 |
| Connection Gender - Side 1 | Not Applicable |
| Connection Gender Side 2 | Not Applicable |
| Connection Size - Side 1 | 4" |
| Connection Size - Side 2 | 4" |
| Connection Type | Class 125 Flange |
| Connection Type - Side 1 | Flange |
| Connection Type - Side 2 | Flange |
| For Media | Gas, Oil, Water |
| Handle Dia. | 9" |
| Handle Height | 17 3/4" |
| Handle Length | Not Applicable |
| Handle Material | Cast Iron |
| Handle Type | Wheel |
| Inlet To Outlet Length | 9" |
| Max. Fluid Temp. | 353°F |
| Max. Pressure (cwp) | 200 psi |
| Max. Steam Pressure | 125 psi |
| Max. Water Pressure | 200 psi |
| Media Temperature Range | -40°F to +353°F |
| No. Of Bolt Holes | 8 |
| Nominal Valve Size | 4" |
| Number Of Flange Bolt Holes | 8 |
| Operating Temperature - Maximum | 353°F |
| Operating Temperature - Minimum | -40°F |
| Overall Length | 9" |
| Pipe Size | 4" |
| Seal Material | Bronze |
| Seat Material | Cast Iron |
| Stem Material | Steel |
| Stem Type | Non Rising |
| Top Of Handle To Inlet Center | 17 3/4" |
| Valve Class | Class 125 |
| Wedge Material | Cast Iron |
| Wedge Style | Solid |
Shipping Info:
| Ship weight (kg) | 45.45 |
| Ship height (cm) | 31.75 |
| Ship length (cm) | 64.77 |
| Ship width (cm) | 29.21 |
| HS code | 8481803010 |
| Country of Origin | CN |
Product Variants
| Model | Pipe Size | Connection Type | Seat Material | Top Of Handle To Inlet Center | Handle Type | Inlet To Outlet Length | Stem Material | Stem Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 2885-M 2 | 2" | Class 125 Flange | Bronze | 14.703" | Wheel | 7" | Brass | Outside Screw and Yoke (Os&Y) | €673.88 | |
| 2885-M 3 | 3" | Class 125 Flange | Bronze | 18.593" | Wheel | 8" | Brass | Outside Screw and Yoke (Os&Y) | €809.50 | |
| 2885-M 5 | 5" | Class 125 Flange | Bronze | 28.297" | Wheel | 10" | Brass | Outside Screw and Yoke (Os&Y) | €2,054.95 | |
| 2885-M 6 | 6" | Class 125 Flange | Bronze | 32.406" | Wheel | 10 1/2" | - | Outside Screw and Yoke (Os&Y) | €2,137.25 | |
| 2885-M 8 | 8" | Class 125 Flange | Bronze | 39.906" | Wheel | - | Brass | Outside Screw and Yoke (Os&Y) | €3,774.75 | |
| 2882-M 2 | 2" | Class 125 Flange | Bronze | 12" | Wheel | 7" | Brass | Non Rising | €681.09 | |
| 2882-M 3 | 3" | Class 125 Flange | Bronze | 15" | Wheel | 8" | Brass | Non Rising | €842.94 |
