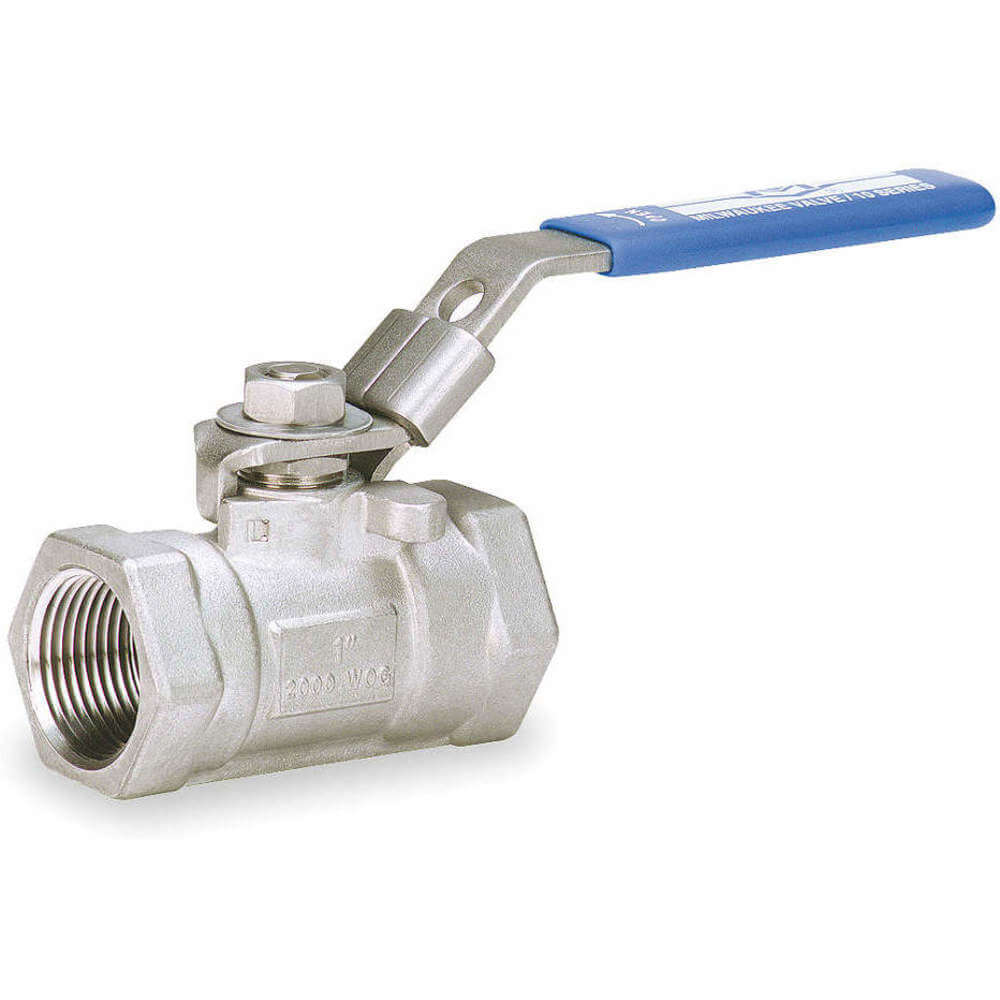

MILWAUKEE VALVE 10SSOD-02-LL 2 Manual Two-Way Ball Valve, 2 Inch, Stainless Steel, Straight, FNPT x FNPT, One-Piece
Item: AA9YCCModel: 10SSOD-02-LL 2Cross Ref: 1JBW8
7 In Stock
Ships within 2 days via
10.00% off
€547.25 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Fire Safe Ball Valve |
| 3-a Compliance | Not Rated |
| Agency Compliance | Not Rated |
| Ansi Flange Class | Not Applicable |
| Average Surface Roughness | Not Applicable |
| Ball Material | Carbon Steel |
| Ball Port Style | Standard Port |
| Ball Valve Product Group | Manual |
| Body Material | Stainless Steel |
| Body Style | Inline |
| Cleaned And Bagged | Valve Cleaned And Bagged |
| Coefficient Of Volume | 81 |
| Connection Gender - Side 1 | Female |
| Connection Gender Side 2 | Female |
| Connection Size - Side 1 | 2" |
| Connection Size - Side 2 | 2" |
| Connection Type | FNPT x FNPT |
| Connection Type - Side 1 | NPT |
| Connection Type - Side 2 | NPT |
| For Media | Combustible Gases, Water |
| Grade | Grade 316 |
| Handle | Locking Lever |
| Handle - Locking | Locking |
| Handle Color | Blue |
| Handle Height | 3.49" |
| Handle Length | 7 6/25" |
| Handle Material | Stainless Steel |
| Handle Type | Lever Locking |
| Included Mounting | Not Applicable |
| Max. Pressure | 2000 psi WOG |
| Max. Pressure (cwp) | 2000 psi |
| Max. Pressure (steam) | 150 psi |
| Max. Pressure For Combustible Gas | Not Rated |
| Media Temp. Range | 20°F to 450°F |
| Nominal Valve Size | 2" |
| Overall Length | 4.33" |
| Pipe Schedule Compatibility | Not Applicable |
| Pipe Size | 2" |
| Port | Standard |
| Port Type | Reduced |
| Seal Material | RPTFE |
| Seat Material | RPTFE |
| Stem Grade | Grade 316 |
| Stem Material | Stainless Steel |
| Stem Type | Blowout Resistant |
| Temp. Range | -20°F to +450°F |
| Vacuum Service Rating | -29.92 in. hg |
| Valve Body Style | Straight |
| Valve Construction | One-Piece |
| Valve Series | Series 10 |
| Vented Ball Valve | Not Applicable |
Shipping Info:
| Ship weight (kg) | 2.28 |
| Ship height (cm) | 10.16 |
| Ship length (cm) | 28.19 |
| Ship width (cm) | 18.8 |
| HS code | 8481803070 |
| Country of Origin | CN |
Product Variants
| Model | Ball Material | Seal Material | Overall Length | Coefficient Of Volume | Pipe Size | Body Material | Connection Type | Max. Pressure | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| 10SSOD-02-LL 1/4 | Carbon Steel | RPTFE | 2.28" | 3 | 1/4" | Stainless Steel | FNPT x FNPT | 2000 psi WOG | €172.12 | |
| 10SSOD-02-LL 3/8 | Carbon Steel | RPTFE | 2.28" | 4 | 3/8" | Stainless Steel | FNPT x FNPT | 2000 psi WOG | €150.85 | |
| 10SSOD-02-LL 1/2 | Carbon Steel | RPTFE | 2.6" | 5 | 1/2" | Stainless Steel | FNPT x FNPT | 2000 psi WOG | €161.44 | |
| 10SSOD-02-LL 3/4 | Carbon Steel | RPTFE | 2.83" | - | 3/4" | Stainless Steel | FNPT x FNPT | 2000 psi WOG | €205.07 | |
| 10SSOD-02-LL 1 | Carbon Steel | RPTFE | 3.23" | 14 | 1" | Stainless Steel | FNPT x FNPT | 2000 psi WOG | €207.96 | |
| 10SSOD-02-LL 1 1/4 | Stainless Steel | PTFE | - | - | 1 1/4" | Stainless Steel | FNPT x FNPT | 2000 psi WOG | €396.11 | |
| 10SSOD-02-LL 1 1/2 | Carbon Steel | RPTFE | 3.86" | - | 1 1/2" | Stainless Steel | FNPT x FNPT | 2000 psi WOG | €536.06 |
