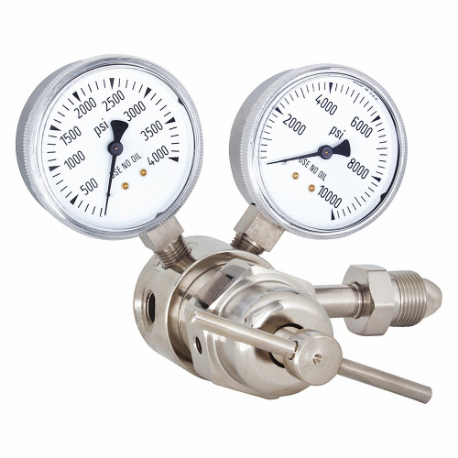

MILLER-SMITH EQUIPMENT 826-8128 High Pressure Gas Regulator, Single Stage, CGA 680 Inlet, 1/8 Inch Tube Outlet
Item: CU3BUXModel: 826-8128Cross Ref: 45PW95
7 In Stock
Ships within 2 days via
5.00% off
€1,702.01 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Gas Regulator |
| Application | Calibration Kits, Chemical Plants, High Pressure Testing, Manufacturing Processes, Purging And Charging, R And D Laboratories |
| Body Dia. | 1 1/4" , 1.25" |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Bonnet Material | Nickel Plated Brass |
| Cga Number | CGA 680 |
| Control Type | T Handle |
| Diaphragm Material | Neoprene |
| Features | Low-Torque-Control |
| Filter Material | Brass |
| Flow Coefficient | 0.19 |
| For Gas Type | Argon, Helium, Nitrogen |
| Gauge Dia. | 2 1/2" |
| Helium Leak Integrity Rating | 1 x 10^ 5 Cc/Sec |
| Inlet Connection | CGA 680 |
| Inlet Connection Gender | Female |
| Inlet Connection Size | 1.045"-14 |
| Inlet Connection Type | NGO |
| Inlet Thread Direction | Right Hand |
| Max. Inlet Pressure | 6000 psig |
| Max. Outlet Pressure | 4000 psig |
| Min. Outlet Pressure | 0 psig |
| Mounting Location | Rear Panel |
| Mounting Type | Cylinder |
| No. Of Stages | 1 |
| Outlet Connection | 1/8" |
| Outlet Connection Size | 1/8" |
| Outlet Connection Type | Tube |
| Piston Material | Brass |
| Regulator Series | 820 Series |
| Seat Material | PCTFE |
Shipping Info:
| Ship weight (kg) | 2.8 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
