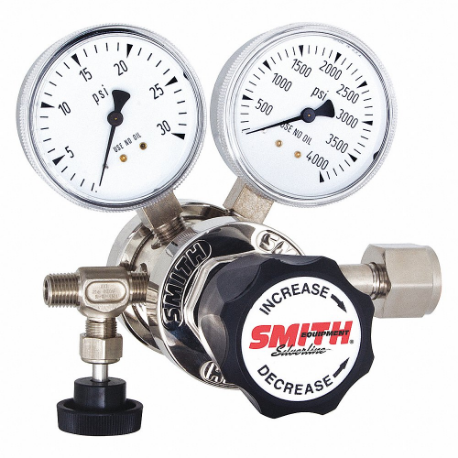

MILLER-SMITH EQUIPMENT 121-2005 High Purity Gas Regulator, Two Stage, CGA 346 Inlet, 1/4 Inch NPT M Outlet, 50 PSIg
Item: CU3BXZModel: 121-2005Cross Ref: 45PV94
7 In Stock
Ships within 2 days via
10.00% off
€1,001.02 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | High Purity Gas Regulator |
| Application | General Purpose |
| Body Dia. | 2" |
| Body Finish | Nickel Plated |
| Body Material | Brass |
| Bonnet Material | Nickel Plated Brass |
| Cga Number | CGA 346 |
| Control Type | Knob |
| Diaphragm Material | Neoprene |
| Features | Built In Safety Relief Valve, Plated Body, Bonnet, And Gauges |
| Filter Material | Stainless Steel |
| Filter Material Grade | Grade 316 |
| Flow Coefficient | 0.19 |
| For Gas Type | Breathing Air |
| Gas Purity Rating | 99.9% |
| Gauge Diameter | 2 1/2" |
| Helium Leak Integrity Rating | 1 x 10^ 5 Cc/Sec |
| Inlet Connection | CGA 346 |
| Inlet Connection Gender | Male |
| Inlet Connection Size | 0.825"-14 |
| Inlet Connection Type | NGO |
| Inlet Thread Direction | Right Hand |
| Max. Inlet Pressure | 3500 psig |
| Max. Outlet Pressure | 50 psig |
| Min. Operating Temp. | -40°F |
| Min. Outlet Pressure | 0 psig |
| Mounting Type | Cylinder |
| Number Of Stages | 2 |
| Operating Temperature (maximum) | 165°F |
| Outlet Connection | 1/4" |
| Outlet Connection Gender | Male |
| Outlet Connection Size | 1/4" |
| Outlet Gender | Male |
| Outlet Type | NPT |
| Regulator Series | 120 Series |
| Seal Material | FKM |
| Seat Material | PFA |
Shipping Info:
| Ship weight (kg) | 2.57 |
| Ship height (cm) | 2.54 |
| Ship length (cm) | 2.54 |
| Ship width (cm) | 2.54 |
