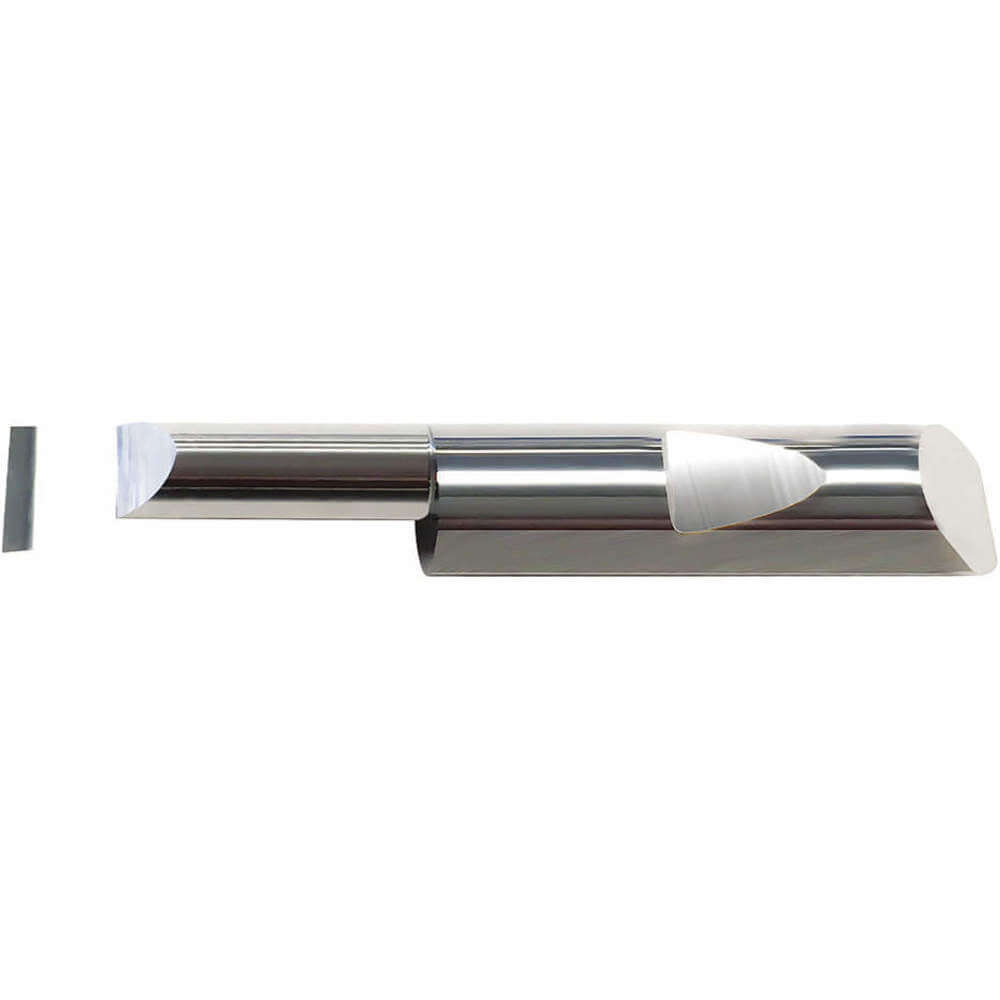

MICRO 100 QBB-3202000 Boring Bar, 2 Inch Max. Bore Depth, 0.1325 Inch Centerline Offset, 0.32 Inch Head Width
Item: AA7AQVModel: QBB-3202000Cross Ref: 15R682
7 In Stock
Ships within 2 days via
10.00% off
€121.76 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Boring Bar |
| Bore Dia. | 8/25" |
| Boring Bar Type | Boring |
| Center To Cutting Tip | 0.1325" |
| Compatible With Product Type | Micro-Quik Tool Holder |
| Cutting Application | Boring |
| Cutting Direction | Right Hand |
| Features | Coolant Fed Enabled Shank Design, Corner Radius Profile, Split Geometry |
| Finish | Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Head Width | 8/25" |
| Max. Bore Depth | 2" |
| Min. Bore Dia. | 0.34" |
| Offset Point | 0.1325" |
| Overall Length | 3 1/2" |
| Overhang | 2.353" |
| Product Datasheet | micro-100-bb-050150.pdf |
| Projection | 2/25" |
| Radius | 0.005" |
| Shank Dia. | 3/8" |
| Shank Material | Carbide |
| Side Cutting Edge Angle | 6° |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.06 |
| Ship height (cm) | 0.95 |
| Ship length (cm) | 8.89 |
| Ship width (cm) | 0.95 |
| HS code | 8207600061 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Radius | Center To Cutting Tip | Shank Dia. | Finish | Min. Bore Dia. | Projection | Offset Point | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| QBB-110300 | 0.003" | 0.0163" | 3/16" | Uncoated | 0.122" | 0.028" | 0.0163" | - | €56.64 | |
| QBB-110300X | 0.003" | 0.0163" | 3/16" | - | 0.122" | 0.028" | 0.0163" | 1 1/2" | €61.21 | |
| QBB-110500 | 0.003" | 0.0163" | 3/16" | Uncoated | 0.122" | 0.028" | 0.0163" | - | €56.64 | |
| QBB-110500X | 0.003" | 0.0163" | 3/16" | AlTiN Coat | 0.122" | 0.028" | 0.0163" | 1 1/2" | €61.21 | |
| QBB-110700 | 0.003" | 0.0163" | 3/16" | Uncoated | 0.122" | 0.028" | 0.0163" | 2" | €56.64 | |
| QBB-110700X | 0.003" | - | 0.187" | AlTiN Coat | 0.122" | 0.028" | - | 2" | €61.21 | |
| QBB-120250 | 0.003" | 0.0263" | 3/16" | Uncoated | 0.132" | 0.03" | 0.0263" | - | €56.64 |
