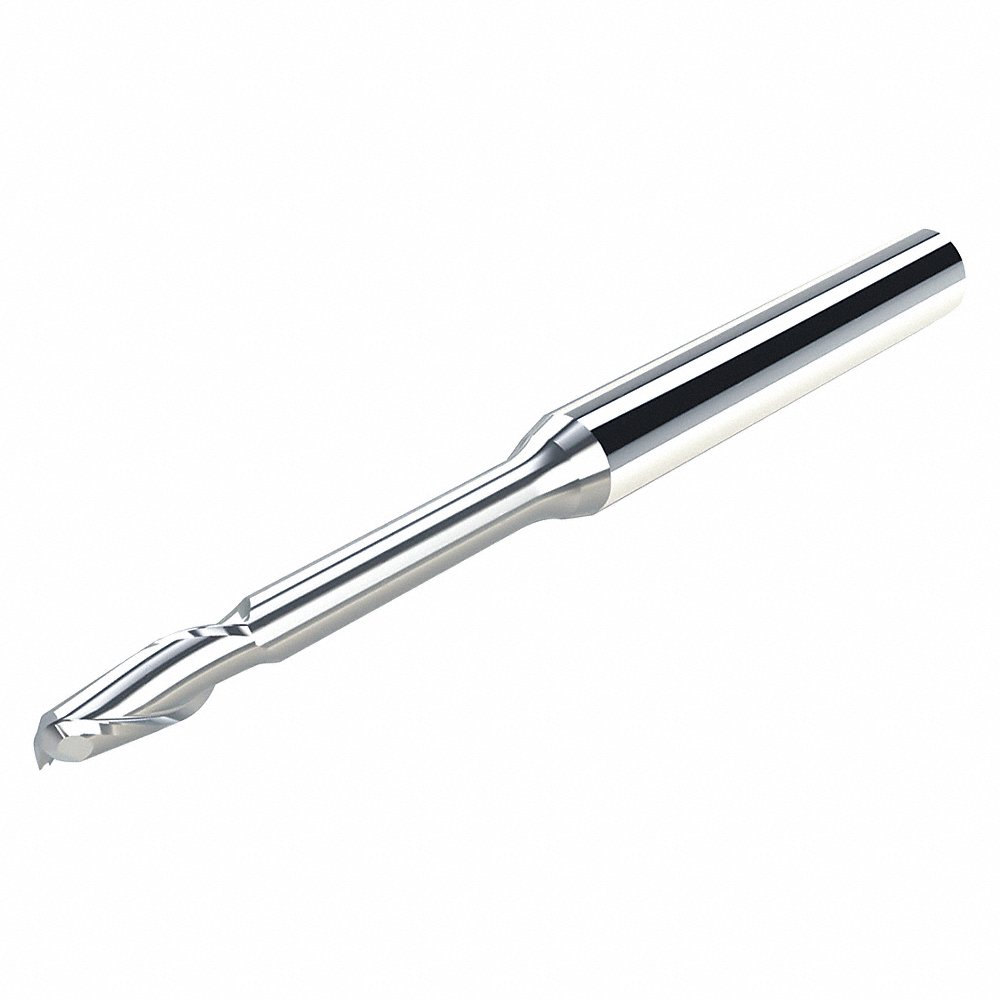

MICRO 100 MEF-035-400-005 Corner Radius End Mill, Carbide, 2 Flute, 0.035 In Mill Dia, 0.053 In LOC, 0.005 In Rad
Get it by Monday, Aug 24
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Corner Radius End Mill |
| Corner Radius | 0.005" |
| Cutting Direction | Right Hand |
| Dimensions Type | Decimal Inch |
| Drilling Tool Configuration | Individual |
| End Mill Cutting Type | Center Cutting |
| End Mill Material | Carbide |
| Finish | Bright (Uncoated) |
| Finish-machining | Bright (Uncoated) |
| Grade | Grade AAA |
| Hardened (h) Compatibility | Yes |
| Helix Angle | 20° |
| Length Of Cut | 3/64" |
| List No. | Mef |
| Material Grade-machining | AAA |
| Material-machining | Carbide |
| Measurement System | Fractional Inch |
| Milling Dia. | 1/25" |
| Neck Length | 11/32" |
| No. Of Flutes | 2 |
| Overall Length | 1 1/2" |
| Primary Material Application | Nickel, Titanium |
| Primary Material Application Iso Code | S |
| Shank Dia. | 1/8" |
| Shank Type-machining | Straight |
| Single End/double End | Single End |
| Single/double End | Single End |
Shipping Info:
| Ship height (cm) | 1.27 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 1.27 |
| Country of Origin | US |
Product Variants
| Model | Shank Dia. | Cutting Length | Primary Material Application Iso Code | Finish | Neck Dia. | No. Of Flutes | Milling Dia. | Cutter Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| MEF-075-600 | 1/8" | 0.109" | H, K, M, P | Bright Uncoated | 1/16" | 2 | 1/16" | - | €71.94 | |
| MEF-062-200K | 1/8" | 0.094" | H, K, M, N, P, S | - | 0.058" | 2 | 1/16" | 1/16" | €57.19 | |
| MEF-062-350K | 1/8" | 0.094" | H, K, M, N, P, S | Bright Uncoated | 0.058" | 2 | 1/16" | 1/16" | €60.60 | |
| MEF-075-250 | 1/8" | 0.113" | H, K, M, P | Bright Uncoated | 0.071" | 2 | 1/16" | 0.075" | €50.47 | |
| MEF-062-550K | 1/8" | 0.094" | H, K, M, N, P, S | Bright Uncoated | 0.058" | 2 | 1/16" | 1/16" | €68.42 | |
| MEF-075-900 | 1/8" | 0.113" | H, K, M, P | Bright Uncoated | 0.071" | 2 | 1/16" | 0.075" | €69.79 | |
| MEF-045-150K | 1/8" | 0.068" | H, K, M, N, P, S | Bright Uncoated | 0.043" | 2 | 1/32" | 0.045" | €57.19 |
