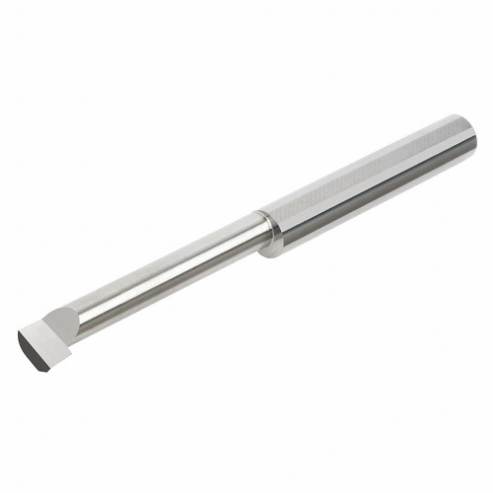

MICRO 100 BB-290750S Boring Bar, 0.75 Inch Max. Bore Depth, 0.29 Inch Head Width, 0.31 Inch Min. Bore Dia.
Item: AA7BKRModel: BB-290750SCross Ref: 15T097
7 In Stock
Ships within 2 days via
10.00% off
€63.63 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Boring Bar |
| Application | Boring |
| Bore Depth | 3/4" |
| Bore Dia. | 0.29" |
| Boring Bar Type | Boring |
| Center To Cutting Tip | 0.134" |
| Centerline Offset | 0.1338" |
| Compatible With | Micro-Quik Tool Holder |
| Compatible With Product Type | Micro-Quik Tool Holder |
| Cutting Application | Boring |
| Cutting Direction | Right Hand |
| Features | Sharp Corner Profile, Split Geometry |
| Finish | Uncoated |
| Finish - Machining | Bright (Uncoated) |
| Groove Width | 1/5" |
| Head Width | 0.29" |
| Max. Bore Depth | 3/4" |
| Min. Bore Dia. | 0.31" |
| Neck Dia. | 7/32" |
| Offset Point | 0.134" |
| Overall Length | 2 1/2" |
| Product Datasheet | micro-100-bb-050150.pdf |
| Projection | 0.072" |
| Shank Dia. | 5/16" |
| Shank Material | Carbide |
| Shank Type - Machining | Straight With Three Flats |
| Side Cutting Edge Angle | 6° |
| Split Length | 0.22" |
| System Of Measurement | Imperial |
Shipping Info:
| Ship weight (kg) | 0.05 |
| Ship height (cm) | 0.79 |
| Ship length (cm) | 6.35 |
| Ship width (cm) | 0.79 |
| HS code | 8207600061 |
| Country of Origin | US |
Documentation:
Product Variants
| Model | Center To Cutting Tip | Finish | Shank Dia. | Min. Bore Dia. | Projection | Overall Length | Offset Point | Cutting Direction | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| BB-050150S | -0.013" | Uncoated | 1/8" | 0.055" | 0.012" | - | -0.013" | Right Hand | €43.23 | |
| BB-050150SG | -0.013" | Tin Coated | 1/8" | 0.055" | 0.012" | 1 1/2" | -0.013" | Right Hand | €47.65 | |
| BB-050200S | -0.013" | Uncoated | 1/8" | 0.055" | 0.012" | - | -0.013" | Right Hand | €43.23 | |
| BB-050200SG | -0.013" | Tin Coated | 1/8" | 0.055" | 0.012" | - | -0.013" | Right Hand | €47.65 | |
| BB-050300S | -0.013" | Uncoated | 1/8" | 0.055" | 0.012" | 1 1/2" | -0.013" | Right Hand | €43.23 | |
| BB-050300SG | -0.013" | Tin Coated | 1/8" | 0.055" | 0.012" | - | -0.013" | Right Hand | €48.21 | |
| BB-050400S | -0.013" | Uncoated | - | 0.055" | 0.012" | 1 1/2" | -0.013" | - | €43.23 |
