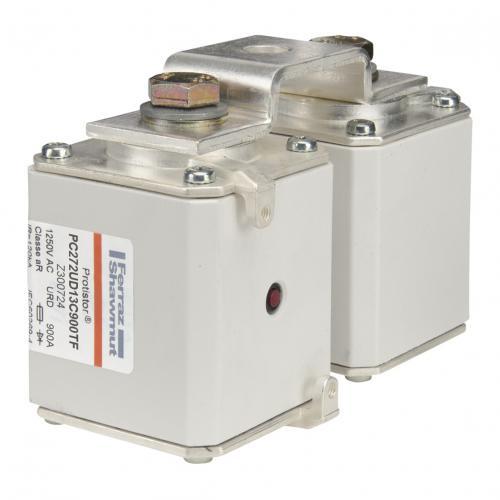

MERSEN FERRAZ Z300724 PC272UD13C900TF Fuse, 900A
Get it by Tuesday, Sep 1
€3,117.58 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Ac Max. I R Breaking Capacity I1 | 100 kA |
| Ac/dc | AC |
| Amps | 900A |
| Body/insulating Material | Ceramic |
| Clearing I2t @ Rated Voltage | 1430 sq. kA sec. |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Flush Ends |
| Finish | Silver Plated |
| Fuse Size | 2" x 72" |
| Height | 65.5 mm |
| Indication System | Yes |
| Indication System Type | Striker |
| Length | 91 mm |
| Melting I2t | 176 sq. kA sec. |
| Mounting | Bolted |
| Power Dissipation @ Rated Amps Value | 183 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 1250V |
| Speed Characteristic | AR |
| Width | 138.5 mm |
Shipping Info:
| Ship weight (kg) | 1.68 |
| Ship height (cm) | 9.5 |
| Ship length (cm) | 20.5 |
| Ship width (cm) | 8.99 |
Product Variants
| Product | Model | Amps | Height | Connection/terminal Material | Ac Max. I R Breaking Capacity I1 | Fuse Size | Power Dissipation @ Rated Amps Value | Clearing I2t @ Rated Voltage | Rated Voltage Ac Iec | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A300725 | 1000A | 65.5 mm | Brass | 100 kA | 2" x 72" | 197 W | 1850 sq. kA sec. | 1250V | €3,153.10 | |
 |
B300726 | 1100A | 65.5 mm | Brass | 100 kA | 2" x 72" | 231 W | 2185 sq. kA sec. | 1250V | €3,267.54 | |
 |
D300728 | 1400A | 65.5 mm | Brass | 100 kA | 2" x 72" | 256 W | 3650 sq. kA sec. | 1100V | €3,023.79 | |
 |
E301994 | 1800A | 65.5 mm | Brass | 100 kA | 2" x 72" | 275 W | 6350 sq. kA sec. | 900V | €3,275.16 | |
 |
H300732 | 1000A | 78.5 mm | Brass | 100 kA | 2" x 73" | 231 W | 1400 sq. kA sec. | 1250V | €2,290.97 | |
 |
J300733 | 1100A | 78.5 mm | Brass | 100 kA | 2" x 73" | 244 W | 1860 sq. kA sec. | 1250V | €2,090.92 | |
 |
J302228 | 1600A | 78.5 mm | Brass | 100 kA | 2" x 73" | 286 W | 5210 sq. kA sec. | 1100V | €3,414.19 |
