MERSEN FERRAZ E301994 PC272UD90V18CTF Fuse, 1800A
Get it by Tuesday, Dec 23
€3,275.16 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Ac Max I.r./breaking Capacity I1 | 100 kA |
| Ac/dc | AC |
| Ampere Rating | 1800A |
| Body/insulating Material | Ceramic |
| Clearing I2t At Rated Voltage | 6350 sq. kA sec. |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Flush Ends |
| Finish | Silver Plated |
| Fuse Size | 2" x 72" |
| Height | 65.5 mm |
| Indication System | Yes |
| Indication System Type | Striker |
| Length | 91 mm |
| Melting I2t | 1250 sq. kA sec. |
| Mounting | Bolted |
| Power Dissipation At Rated Current Value | 275 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 900V |
| Rohs Compliant | Yes |
| Speed Characteristic | AR |
| Width | 138.5 mm |
Shipping Info:
| Ship weight (kg) | 1.81 |
| Ship height (cm) | 6.5 |
| Ship length (cm) | 18.49 |
| Ship width (cm) | 8.51 |
Product Variants
| Product | Model | Height | Fuse Size | Mounting | Price | |
|---|---|---|---|---|---|---|
 |
A300725 | 65.5 mm | 2" x 72" | Bolted | €3,153.10 | |
 |
B300726 | 65.5 mm | 2" x 72" | Bolted | €3,267.54 | |
 |

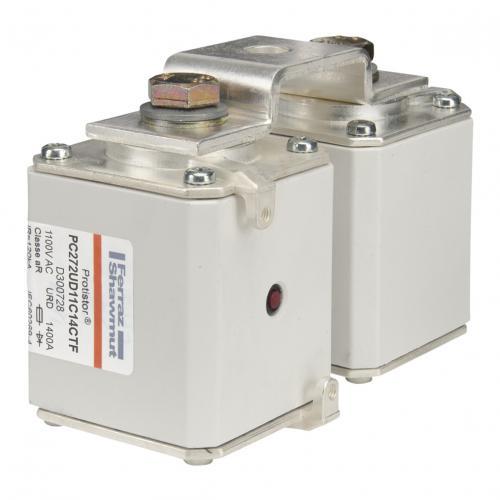

D300728 | 65.5 mm | 2" x 72" | Bolted | €3,023.79 | |
 |
H300732 | 78.5 mm | 2" x 73" | Bolted | €2,290.97 | |
 |
J300733 | 78.5 mm | 2" x 73" | Bolted | €2,090.92 | |
 |

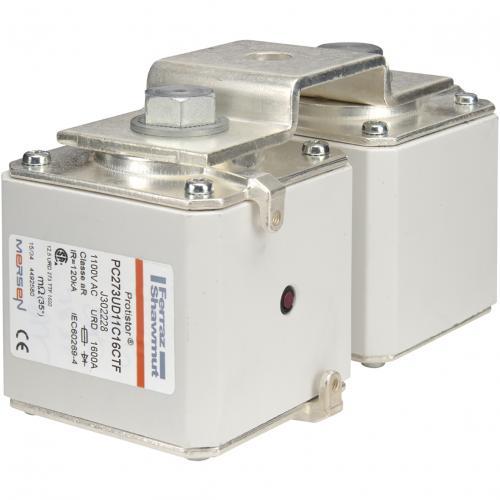

J302228 | 78.5 mm | 2" x 73" | Bolted | €3,414.19 | |
 |
K300734 | 78.5 mm | 2" x 73" | Bolted | €2,439.98 |
