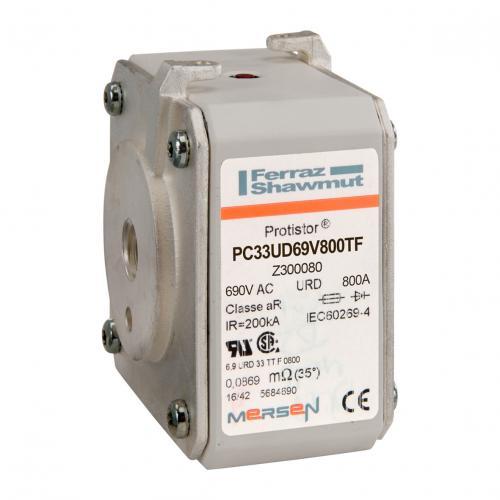

MERSEN FERRAZ Z300080 PC33UD69V800TF Fuse, 800A
Get it by Tuesday, Dec 23
€3,343.90 /pkg. of 3
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Ac Max I.r./breaking Capacity I1 | 200 kA |
| Ac/dc | AC |
| Ampere Rating | 800A |
| Body/insulating Material | Ceramic |
| Clearing I2t At Rated Voltage | 540 sq. kA sec. |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Flush Ends |
| Design Details | Standard Terminal |
| Finish | Silver Plated |
| Fuse Size | 33 |
| Height | 78.5 mm |
| Indication System | Yes |
| Indication System Type | Striker |
| Length | 50.6 mm |
| Melting I2t | 93 sq. kA sec. |
| Mounting | Bolted |
| Power Dissipation At Rated Current Value | 120 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 690V |
| Rated Voltage Ac Ul | 700V |
| Rohs Compliant | Yes |
| Speed Characteristic | AR |
| Width | 73 mm |
Shipping Info:
| Ship weight (kg) | 2.4 |
| Ship height (cm) | 9.5 |
| Ship length (cm) | 24.51 |
| Ship width (cm) | 8.51 |
