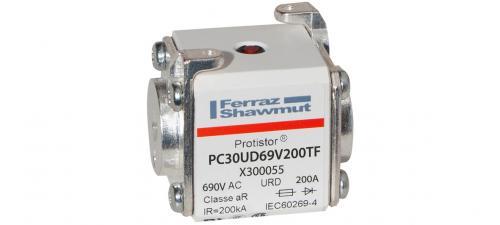

MERSEN FERRAZ X300055 PC30UD69V200TF Fuse Link, 690VAC, 200A, TTF Threaded Terminal

Item: CH6CUKModel: X300055Cross Ref: PC30UD69V200TF
Check Availability
In Stock

Get it by Tuesday, Dec 23

€1,711.04 /pkg. of 3
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item Fuse Link
Ac Max I.r./breaking Capacity I1 200 kA
Ac Voltage 690V AC
Ac/dc AC
Amps 200A
Body Material Ceramic
Body/insulating Material Ceramic
Clearing I2t At Rated Voltage 16.7 sq. kA sec.
Connection Finish Silver Plated
Connection Material Brass
Connection Type End Contact With Threaded Holes
Connection/terminal Material Brass
Connection/terminal Type Flush Ends
Finish Silver Plated
Fuse Size 30
Height 48 mm
Indication System Yes
Indication System Type Striker
Length 50.6 mm
Melting I2t 3 sq. kA sec.
Mounting Bolted
Mounting Type Bolted
Pack Size 3
Power Dissipation At Rated Current Value 42 W
Product Datasheet mersen-ferraz-x300055.pdf
Product Group Semiconductor Protection Fuses
Rated Voltage Ac Iec 690V
Rated Voltage Ac Ul 700V
Rohs Compliant Yes
Size 30
Speed Characteristic AR
Visual Indication Striker
Width 40 mm

Shipping Info:

Ship weight (kg) 0.24
Ship height (cm)4.8
Ship length (cm)5.05
Ship width (cm)3.99

Product Details:

Mersen Ferraz X300055 fuse safeguards sensitive equipment and circuits from overcurrents or short circuits. This fuse is ideal for power distribution systems, industrial machinery, renewable energy installations and electric vehicles. By promptly interrupting excessive currents, it prevents damage and potential hazards, ensuring operational reliability and minimising downtime.

Frequently Asked Questions:

Q. How can I determine the current rating of a fuse?

A. The current rating is determined by the physical characteristics and material properties of the fuse element. It indicates the maximum current the fuse can safely carry without tripping under normal operating conditions.

Q. What is the difference between fast-acting and time-delay (slow-blow) fuses?

A. Fast-acting fuses act quickly to overcurrent events and time-delay fuses are engineered to tolerate short-duration overcurrents, such as those that occur during motor startup, without tripping.

Q. What considerations should be made for selecting the correct fuse?

A. Factors like the load current, inrush current during startup, ambient temperature and the specific application's requirements influence the choice of fuse size.
