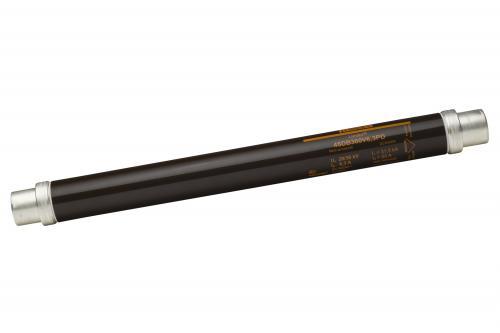

MERSEN FERRAZ X209366 45DB360V25PD Fuse Link, 25A
Get it by Friday, Aug 21
€758.51 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse Link |
| Ac Max. I R Breaking Capacity I1 | 32 kA |
| Ac/dc | AC |
| Amps | 25A |
| Body/insulating Material | Ceramic |
| Clearing I2t @ Rated Voltage | 6.5 sq. kA sec. |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Cylindrical |
| Design Details | Vde T402 |
| Finish | Silver Plated |
| Fuse Dia. | 56 mm |
| Fuse Length | 537 mm |
| Indication System | Yes |
| Indication System Type | Striker |
| Length | 603 mm |
| Min Interrupting Rating (mbc) | 110A |
| Mounting | Clip |
| Power Dissipation @ Rated Amps Value | 100 W |
| Product Group | High Voltage IEC Fuses |
| Rated Voltage Ac Iec | 36 kV |
Shipping Info:
| Ship weight (kg) | 2.68 |
| Ship height (cm) | 7.01 |
| Ship length (cm) | 62 |
| Ship width (cm) | 7.01 |
Product Variants
| Product | Model | Amps | Power Dissipation @ Rated Amps Value | Ac Max. I R Breaking Capacity I1 | Rated Voltage Ac Iec | Fuse Length | Fuse Dia. | Clearing I2t @ Rated Voltage | Min Interrupting Rating (mbc) | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
A209300 | 50A | 35 W | 63 kA | 7.2 kV | 192 mm | 56 mm | 25.3 sq. kA sec. | 194A | €691.60 | |
 |
G1000253 | 10A | 48 W | 65 kA | 24 kV | 442 mm | 56 mm | 2 sq. kA sec. | 36A | €224.02 | |
 |
K1000118 | 63A | 271 W | 20 kA | 36 kV | 537 mm | 88 mm | 61.7 sq. kA sec. | 360A | €611.18 | |
 |
Q1000261 | 80A | 196 W | 65 kA | 24 kV | 442 mm | 65 mm | 104 sq. kA sec. | 460A | €609.91 | |
 |
S209293 | 6.3A | 11 W | 63 kA | 7.2 kV | 192 mm | 56 mm | 0.8 sq. kA sec. | 21A | €521.22 | |
 |
S209362 | 6.3A | 39 W | 32 kA | 36 kV | 537 mm | 56 mm | 0.6 sq. kA sec. | 23A | €621.21 | |
 |
T209363 | 10A | 65 W | 32 kA | 36 kV | 537 mm | 56 mm | 2 sq. kA sec. | 34A | €661.03 |
