MERSEN FERRAZ Limitor PD Back-up Fuses

Filter

Style	Model	Amps	Power Dissipation @ Rated Amps Value	Ac Max. I R Breaking Capacity I1	Rated Voltage Ac Iec	Fuse Length	Fuse Dia.	Clearing I2t @ Rated Voltage	Min Interrupting Rating (mbc)	Price
A	S209362	6.3A	39 W	32 kA	36 kV	537 mm	56 mm	0.6 sq. kA sec.	23A	€621.21
B	S209293	6.3A	11 W	63 kA	7.2 kV	192 mm	56 mm	0.8 sq. kA sec.	21A	€521.22
C	T209363	10A	65 W	32 kA	36 kV	537 mm	56 mm	2 sq. kA sec.	34A	€661.03
D	G1000253	10A	48 W	65 kA	24 kV	442 mm	56 mm	2 sq. kA sec.	36A	€224.02
E	V209364	16A	67 W	32 kA	36 kV	537 mm	56 mm	2.34 sq. kA sec.	70A	€678.86
F	V209295	16A	13 W	63 kA	7.2 kV	192 mm	56 mm	2.34 sq. kA sec.	65A	€521.22

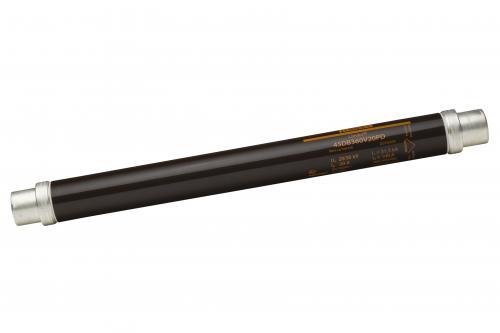

G	W209365	20A	84 W	32 kA	36 kV	537 mm	56 mm	3.9 sq. kA sec.	100A	€531.99
H	X209366	25A	100 W	32 kA	36 kV	537 mm	56 mm	6.5 sq. kA sec.	110A	€758.51
I	Y209367	31.5A	119 W	20 kA	36 kV	537 mm	65 mm	7 sq. kA sec.	135A	€1,096.59
J	Z209368	40A	176 W	20 kA	36 kV	537 mm	65 mm	14.2 sq. kA sec.	205A	€843.56
F	A209300	50A	35 W	63 kA	7.2 kV	192 mm	56 mm	25.3 sq. kA sec.	194A	€691.60
K	K1000118	63A	271 W	20 kA	36 kV	537 mm	88 mm	61.7 sq. kA sec.	360A	€611.18
L	Q1000261	80A	196 W	65 kA	24 kV	442 mm	65 mm	104 sq. kA sec.	460A	€609.91
