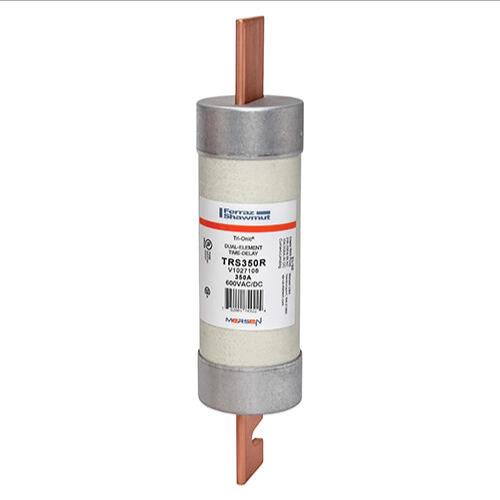

MERSEN FERRAZ TRS350R Time Delay Fuse, 600V, 350A, Class RK5, 1 Pole
Item: AG8WREModel: TRS350RCross Ref: 4YZP8
7 In Stock
Ships within 2 days via
5.00% off
€245.71 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Time Delay Fuse |
| Ac Max. I R Breaking Capacity I1 | 200 kA |
| Ac Voltage | 600V AC |
| Ac/dc | AC/DC |
| Amps | 350A |
| Body Material | Polyester |
| Body Style | Blade |
| Body/insulating Material | Polytube |
| Class | Class RK5 |
| Compatible Fuse Block Series | 2Hkrfb, 6Hkrfb |
| Connection/terminal Material | Copper |
| Connection/terminal Type | Blade |
| Dc Voltage | 600V DC |
| Dia. | 65.1 mm |
| Element | Dual |
| Equivalent Brand And Series | Bussmann Frs-R, Edison Ecsr, Littelfuse Flsr, Mersen Trs-R Series |
| Equivalent Series | Ecsr, Flsr, Frs-R, Trs-R |
| Finish | TiN Plated |
| Fits Fuse Block Style | Rejection |
| Frame Type | TRS |
| Frequency | 50/60 Hz |
| Fuse Class | Class RK5 |
| Fuse Size | 11 5/8" x 2 9/16" |
| Interrupt Rating | 200 kA at 600V AC, 20 kA at 600V DC |
| Length | 295.4 mm |
| Mounting | Clip |
| No. Of Poles | 1 |
| Product Datasheet | mersen-ferraz-tr110r.pdf |
| Product Group | Low Voltage UL/CSA Fuses |
| Rated Voltage Ac Ul | 600V |
| Rated Voltage Dc Ul | 600V |
| Rohs Compliant | Yes |
| Series | TRS-R Series |
| Speed | Time Delay |
| Speed Characteristic | Time Delay |
| Speed Type | Time Delay |
| Visual Indication | Non Indicating |
| Voltage | 600V |
| Voltage Type | AC |
Shipping Info:
| Ship weight (kg) | 1.5 |
| Ship height (cm) | 29.85 |
| Ship length (cm) | 6.65 |
| Ship width (cm) | 6.65 |
| Country of Origin | MX |
Documentation:
Product Variants
| Product | Model | Amps | Dia. | Dc Voltage | Fuse Size | Class | Rated Voltage Dc Ul | Connection/terminal Type | Body Style | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
TRS110R | 110A | 1 13/16" | 600V DC | 9 5/8" x 1 13/16" | Class RK5 | 600V | Blade | Blade | €126.08 | |
 |
TRS125R | 125A | 46.1 mm | 600V DC | 9 5/8" x 1 13/16" | Class RK5 | 600V | Blade | Blade | €123.11 | |
|
TRS12R | 12A | 13/16" | 600V DC | 5" x 13/16" | Class RK5 | 600V | Ferrule | Cylindrical | €19.69 | |
 |
TRS15/100R | 15/100A | 20.7 mm | 600V DC | 5" x 13/16" | Class RK5 | 600V | Ferrule | Cylindrical | €19.69 | |
|
TRS150R | 150A | 1 13/16" | 600V DC | 9 5/8" x 1 13/16" | Class RK5 | 600V | Blade | Blade | €123.11 | |
 |
TRS3/10R | 0.3A | 20.7 mm | 600V DC | 5" x 13/16" | Class RK5 | 600V | Ferrule | Cylindrical | €19.69 | |
|
TRS300R | 300A | 2 9/16" | 600V DC | 11 5/8" x 2 9/16" | Class RK5 | 600V | Blade | Blade | €258.64 |
