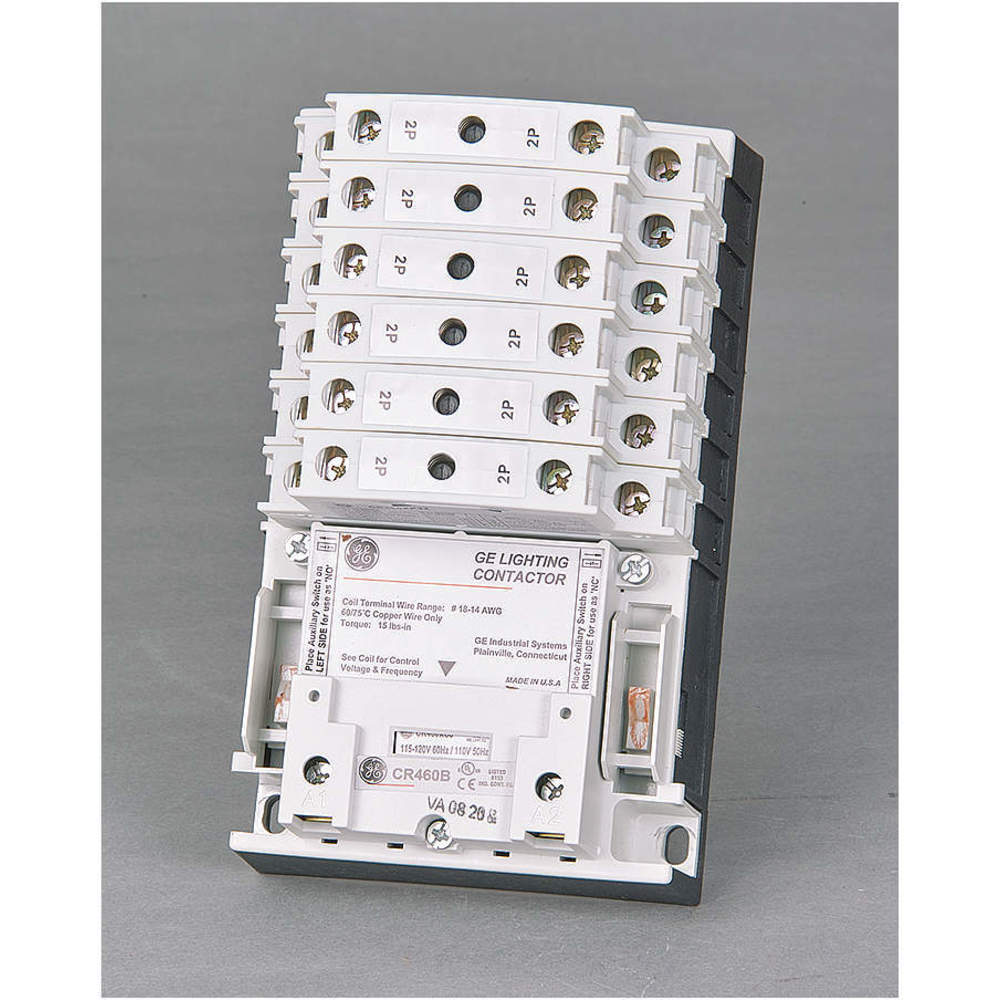

GENERAL ELECTRIC CR463LD0AJA Light Contactor Electric 120v 30a Open 12p
Item: AC9PYMModel: CR463LD0AJACross Ref: 3HYC8
7 In Stock
Ships within 2 days via
5.00% off
€1,333.77 /unit
Add To Cart
Request a Quote
Payment
Product Specifications:
| Item | Lighting Contactor |
| Coil Voltage | 120V AC |
| Contactor Style | Electrically Held Lighting Contactor |
| Contactor Type | Electrically Held |
| Depth | 3.9" |
| Enclosure Nema Rating | No Enclosure |
| Enclosure Type | Open |
| Fluorescent Lighting Amps Rating | 30A |
| Frame Size | Not Applicable |
| Frequency | 50/60 Hz |
| Full Load Amps | 30A |
| Full Load Inductive Amps | 30A |
| Height | 7 2/5" |
| Hp @ 1 Ph | 2 hp |
| Hp @ 1 Ph-240v | 2 hp |
| Hp @ 1 Phase-120v | 1 hp |
| Hp @ 1 Phase-240v | 2 hp |
| Hp @ 3 Phase-208v | 3 hp |
| Hp @ 3 Phase-230v | 5 hp |
| Hp @ 3 Phase-240v | 5 hp |
| Hp @ 3 Phase-480v | 10 hp |
| Hp @ 3 Phase-575v | 15 hp |
| Hp @ 3 Phase-600v | 15 hp |
| Incandescent Lighting Amps Rating | 20A |
| Included Shunt | Not Applicable |
| Inductive Full Load Amps | 30A |
| Led Lighting Amps Rating | 10A |
| Lighting Compatability | Flourescent Lighting, Led Lighting |
| Lighting Contactor Style | Electrically Held Lighting Contactor |
| Main Pole Contact Form | 12NO |
| Max. Operating Temp. | 104°F |
| Min. Operating Temp. | -13°F |
| Mounting Postion | Vertical |
| Mounting Style | Surface |
| Nema Enclosure Material | Not Applicable |
| No. Of Normally Open Main Contacts | 12 |
| No. Of Poles | 12 |
| Nominal Coil Voltage @ 60hz | 120V AC |
| Overall Depth | 3.9" |
| Overall Height | 7 2/5" |
| Overall Width | 4 1/5" |
| Resistive Full Load Amps | Not Applicable |
| Reversing Capability | Non Reversing |
| Series | CR460 Series |
| Tungsten Lighting Amps Rating | 20A |
| Width | 4 1/5" |
Shipping Info:
| Ship weight (kg) | 1.76 |
| Ship height (cm) | 15.24 |
| Ship length (cm) | 20.32 |
| Ship width (cm) | 19.05 |
| HS code | 8536490080 |
| Country of Origin | US |
Product Variants
| Product | Model | Resistive Full Load Amps | Contactor Type | Height | Depth | Inductive Full Load Amps | Enclosure Type | Full Load Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
 |
CR463L20AJA | Not Applicable | Electrically Held | 7 2/5" | 3.9" | 30A | Open | 30A | €488.68 | |
 |
CR463L20AJA10A0 | Not Applicable | Electrically Held | 10" | 4.63" | 30A | - | 30A | €507.32 | |
|
CR463L20ANA | Not Applicable | Electrically Held | 7 2/5" | 3.9" | 30A | Open | 30A | €483.82 | |
|
CR463L20ANA10A0 | Not Applicable | Electrically Held | 10" | 4.63" | 30A | - | 30A | €507.58 | |
 |
CR463L40AJA | Not Applicable | Electrically Held | 7 2/5" | 3.9" | 30A | Open | 30A | €746.53 | |
 |
CR463L40AJA10A0 | Not Applicable | Electrically Held | 10" | 4.63" | 30A | - | 30A | €835.47 | |
|
CR463L40ANA | Not Applicable | Electrically Held | 7 2/5" | 3.9" | 30A | Open | 30A | €741.43 |
