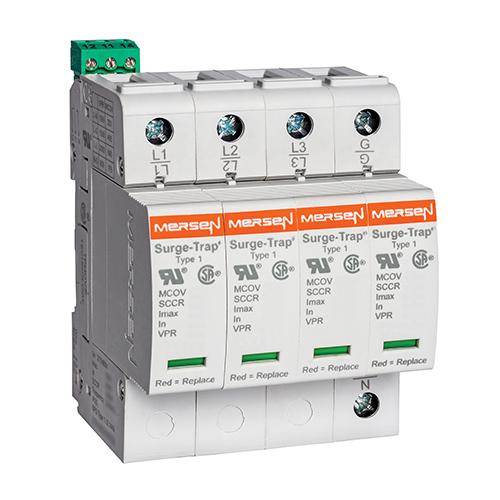

MERSEN FERRAZ STP690YN07M Surge Protection Device, Plugable, 690V, 75kA, 4 Pole
Get it by Tuesday, Aug 18
€572.82 /unit
Add To Cart
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Surge Protection Device |
| Ac/dc | AC |
| Body Material | Polyethelene Terphthalate |
| Connection/terminal Type | Box |
| Frequency | 50/60 Hz |
| Height | 71.4 mm |
| Indication System | Yes |
| Indication System Type | Microswitch |
| Installation Mounting | DIN Rail |
| Length | 106.4 mm |
| Mcov L-g | 870V |
| Mcov L-l | 1100V |
| Mcov L-n | 550V |
| Mcov N-g | 320V |
| Mov Response Time | 0 nsec. To 25 nsec. |
| No. Of Poles | 4 |
| No. Of Wires | 5 |
| Nominal Discharge Amps | 10 kA |
| Product Datasheet | mersen-ferraz-sp07u175.pdf |
| Product Group | Power Line SPDS |
| Protection Modes | L-N |
| Rated Torque | 35.4 Lbs.In. |
| Replacement Plug L1 | SP07U550 |
| Replacement Plug L2 | SP07U550 |
| Replacement Plug L3 | Sp07U550 |
| Replacement Plug N-g | SP07U320 |
| Rohs Compliant | Yes |
| System Configuration | 3 Phase Wye |
| Torque | 35.4 lbs.-in. , 4 N-m |
| Ul Spd Type | Type 1 Component Assembly |
| Vpr L-g | 2500V |
| Vpr L-l | 3000V |
| Vpr L-n | 1500V |
| Vpr N-g | 1000V |
| Width | 70.1 mm |
Shipping Info:
| Ship weight (kg) | 0.7 |
| Ship height (cm) | 7.14 |
| Ship length (cm) | 10.64 |
| Ship width (cm) | 7.01 |
Documentation:
Product Variants
| Product | Model | Nominal Discharge Amps | Height | No. Of Poles | No. Of Wires | System Configuration | Protection Modes | Mcov L-n | Vpr L-n | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
 |
SP07U175 | 20 kA | 45 mm | 1 | 2 | Single Phase | L-N | 175V | 600V | - | RFQ
|
|
SP07U275 | 20 kA | 45 mm | 1 | 2 | Single Phase | L-N | 275V | 800V | €90.44 | |
|
SP07U320 | 20 kA | 45 mm | 1 | 2 | Single Phase | L-N | 320V | 1000V | - | RFQ
|
|
SP07U420 | 20 kA | 45 mm | 1 | 2 | Single Phase | L-N | 420V | 1500V | €120.65 | |
|
SP07U550 | 20 kA | 45 mm | 1 | 2 | Single Phase | L-N | 550V | 1500V | €189.99 | |
 |
STP120P07 | 20 kA | 71.4 mm | 1 | 2 | Single Phase | L-N | 175V | 600V | €201.07 | |
 |
STP120P07M | 20 kA | 71.4 mm | 1 | 2 | Single Phase | L-N | 175V | 600V | €247.34 |
