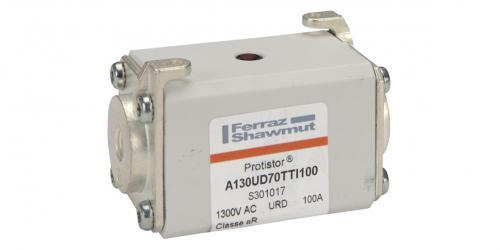

MERSEN FERRAZ S301017 A130UD70TTI100 Fuse, 100A
Get it by Tuesday, Dec 23
Request a Quote
Payment
Delivery
Product Specifications:
| Item | Fuse |
| Ac Max I.r./breaking Capacity I1 | 200 kA |
| Ac/dc | AC |
| Ampere Rating | 100A |
| Body/insulating Material | Ceramic |
| Clearing I2t At Rated Voltage | 6750 sq. A sec. |
| Connection/terminal Material | Brass |
| Connection/terminal Type | Flush Ends |
| Finish | Silver Plated |
| Fuse Size | 70 |
| Height | 49.5 mm |
| Indication System | Yes |
| Indication System Type | Striker |
| Length | 74 mm |
| Melting I2t | 830 sq. A sec. |
| Mounting | Bolted |
| Power Dissipation At Rated Current Value | 30 W |
| Product Group | Semiconductor Protection Fuses |
| Rated Voltage Ac Iec | 1250V |
| Rated Voltage Ac Ul | 1300V |
| Speed Characteristic | AR |
| Width | 39.8 mm |
Shipping Info:
| Ship weight (kg) | 1.04 |
| Ship height (cm) | 54.99 |
| Ship length (cm) | 13.49 |
| Ship width (cm) | 8.51 |
